User manual Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001

Operating instructions and pdf manual for use - Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001 User manual, User manual Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001, Canon, 8GB, VIXIA, HF, R50, Full, HD, Camcorder, 9175B001,

User manual for Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

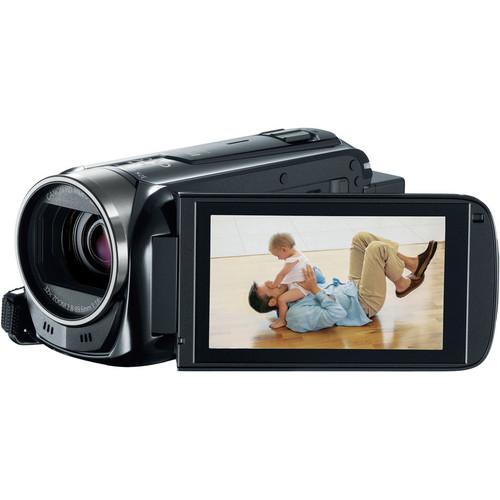

Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 190 USD
We recommend checking out our discussion threads on the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001, which address similar problems with connecting and setting up Consumer Camcorders Canon.


User manual for the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001

The user manual for the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001 provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

The Canon 8GB VIXIA HF R50 Full HD Camcorder records Full HD 1920 x 1080p video to 8GB of internal flash memory or to a removable SD/SDHC/SDXC memory card. It also supports 2.07MP still image capture. The camera is equipped with built-in Wi-Fi for sharing your videos and photos online via Facebook, YouTube or other social networking sites. Built-in Wi-Fi also enables a convenient live streaming function that allows you to view and record live video from the camera directly onto your iOS or Android mobile device. Wi-Fi and live streaming enable you to use your compatible smartphone or tablet to control the camcorder from a remote location as well.
If you own a Canon consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001Download user manual for Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001
(PDF file, 2.87 MB)
Additional parameters of the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001:
Specifications
    Camera
    Sensor 3.28 Megapixel 1/4.85"  CMOS
    Color Filter RGB
    Pixel Gross 3,280,000
    Effective Pixels 2,073,600 Video
    2,073,600 Photo
    Optics
    Focal Length 2.8 - 89.6 mm
    35mm Equivalent Focal Length 38.5 - 1232 Optical Zoom (Advanced Zoom Off)
    32.5 - 1853 Advanced Zoom On
    Maximum Aperture f/ 1.8 - f/ 4.5
    Focusing Distance 0.4" / 1.0 cm
    Angle of View Not Specified By Manufacturer
    Zoom Optical: 32x
    Advanced (Optical): 57x
    Digital: 1140x
    Recording
    System NTSC
    Recording Media Internal Flash Memory 8 GB
    SD/SDHC/SDXC Up To 64 GB
    Recording Time Internal Flash Memory 8 GB
    1440 x 1080 LP Mode: 3 hours (AVCHD)
    1920 x 1080 FXP Mode: 1 hour (AVCHD)
    1920 x 1080 MXP Mode: 40 minutes (AVCHD)
    1920 x 1080 NTSC 60p Mode: 35 minutes (AVCHD)
    Internal Flash Memory 8 GB
    1280 x 720 4 Mbps Mode: 4.33 hours (MP4)
    1920 x 1080 17 Mbps Mode: 1 hour (MP4)
    1920 x 1080 24 Mbps Mode: 40 minutes (MP4)
    1920 x 1080 35 Mbps Mode: 30 minutes (MP4)
    Video Format High Definition
    AVCHD Progressive
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080i / 60 fps (17 Mbps)
    1920 x 1080p / 30 fps (24 Mbps)
    High Definition
    AVCHD Progressive
    1440 x 1080p (5 Mbps)
    High Definition
    MP4
    1920 x 1080p / 60 fps (35 Mbps)
    1920 x 1080p / 30 fps (24 Mbps)
    1920 x 1080p / 24 fps (17 Mbps)
    High Definition
    MP4
    1280 x 720p (4 Mbps)
    Still Image Resolution JPEG: 2.07 Megapixel, 1920 x 1080
    Channels 2.0-Channel Stereo
    Audio Format AAC-LC
    Dolby Digital AC3
    Sampling Frequency Dolby 2ch: 48.0 kHz
    AAC: 48.0 kHz
    Display
    Display Type LCD
    Touchscreen Yes
    Screen Size 3"
    Pixel Count 230,000
    Exposure Control
    Shutter Speed 1/2000 sec
    1/500 sec
    Features
    Image Stabilization Optical & Digital
    Scene Modes Preset: Yes
    Lux 5 (NTSC)
    .4 (Low Light Mode)
    White Balance Modes Auto
    Daylight
    Manual
    Tungsten
    Creative Effects Yes
    Built-in Mic Yes
    Built-in Speaker Yes
    Built-in Light/Flash Light - No
    Flash - No
    Wi-Fi Yes
    Accessory Shoe None
    Tripod Mount 1/4"
    Input/Output Connectors
    Outputs 1x HDMI C (Mini)
    1x USB 2.0 Mini-AB
    1x A/V Mini Terminal (4-pole mini-jack)
    Microphone Input Yes
    Headphone Jack Yes
    General
    Battery Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1840 mAh
    Charging Method AC Adapter
    Operating Temperature 23 - 113°F (-5 - 45°C) 60% Relative Humidity
    32 - 104°F (0 - 40°C) 85% Relative Humidity
    Dimensions (WxHxD) 2.1 x 2.2 x 4.6" / 53.0 x 57.0 x 116.0 mm not including grip belt
    Weight 8.3 oz / 235 g camera body not including grip belt
    10.1 oz / 286 g including BP-718 battery, memory card and grip belt
    Packaging Info
    Package Weight 1.5 lb
    Box Dimensions (LxWxH) 6.9 x 5.6 x 5.1"
    The user manual for the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001 can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon consumer camcorderss, where you can use our link to download the user manual for the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001.

    The user manual lists all of the functions of the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon 8GB VIXIA HF R50 Full HD Camcorder 9175B001. User manuals are also available on the Canon website under Camcorders - Consumer Camcorders.
