User manual Canon EOS 5D Mark III DSLR Camera Video Production Kit

Operating instructions and pdf manual for use - Canon EOS 5D Mark III DSLR Camera Video Production Kit User manual, User manual Canon EOS 5D Mark III DSLR Camera Video Production Kit, Canon, EOS, 5D, Mark, III, DSLR, Camera, Video, Production, Kit,


User manual for Canon EOS 5D Mark III DSLR Camera Video Production Kit

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Canon EOS 5D Mark III DSLR Camera Video Production Kit
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information

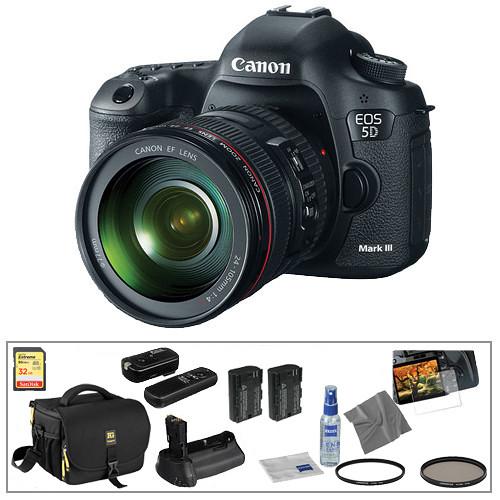

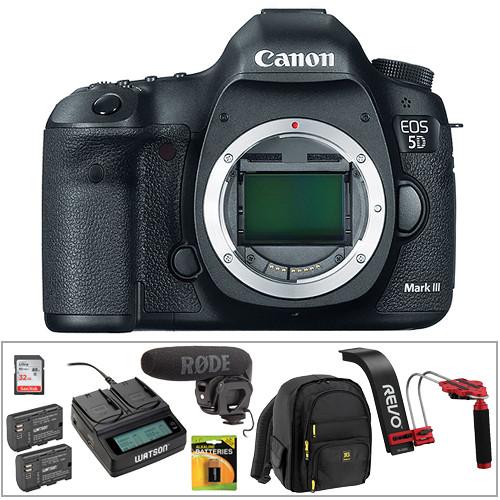

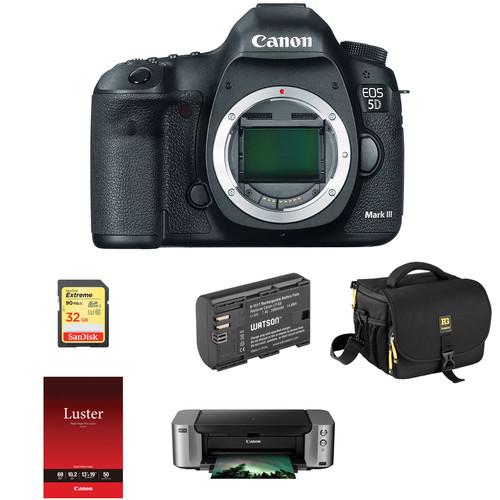

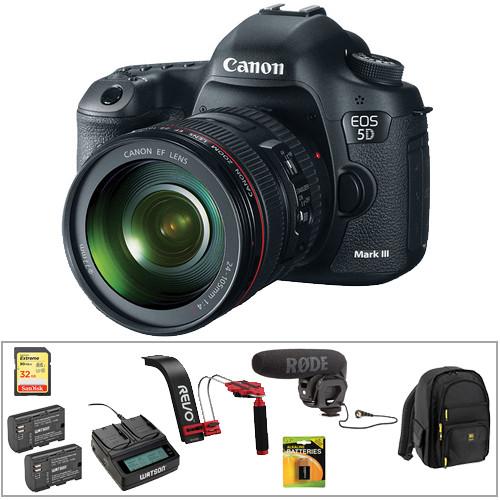

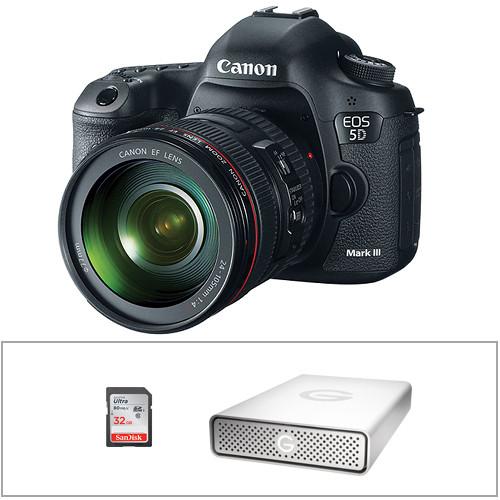

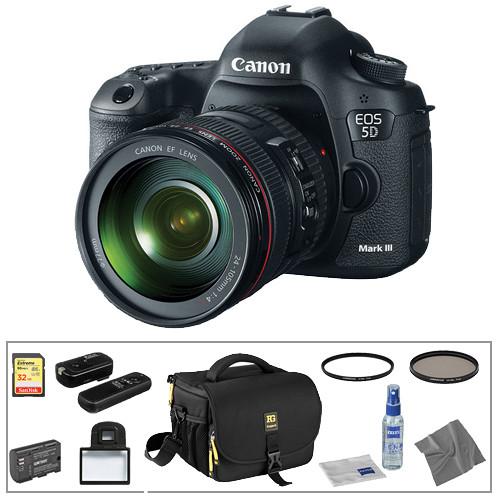

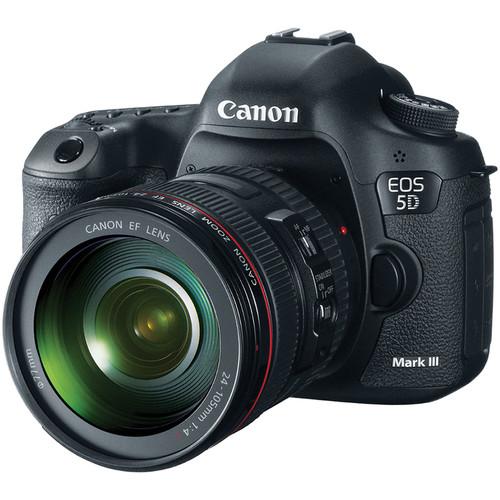

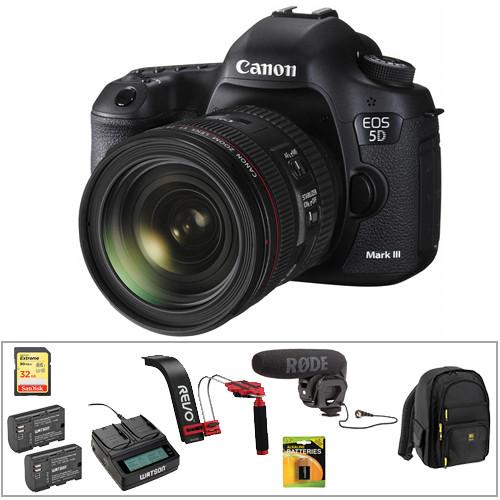

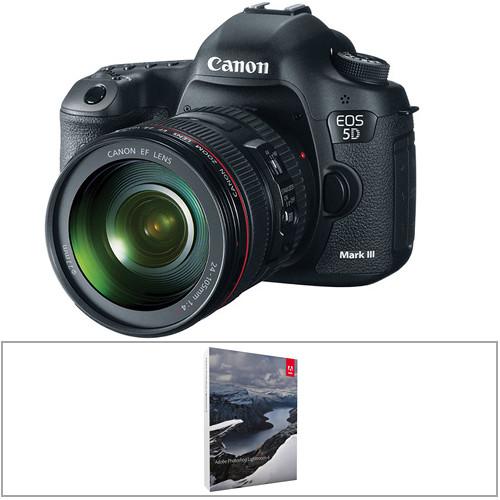

Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit Canon EOS 5D Mark III DSLR Camera Video Production Kit
Click to enlarge image

We recommend checking out our discussion threads on the Canon EOS 5D Mark III DSLR Camera Video Production Kit, which address similar problems with connecting and setting up DSLR Cameras Canon.



User manual for the Canon EOS 5D Mark III DSLR Camera Video Production Kit

The user manual for the Canon EOS 5D Mark III DSLR Camera Video Production Kit provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

The Canon EOS 5D Mark III DSLR Camera Video Production Kit with 24-105mm f/4L IS USM AF Lens from B&H combines the Canon EOS 5D Mark III DSLR and the 24-105mm lens with multiple accessories specifically geared for high quality video production. Included in the Video Production Kit is a 32GB SDHC Class 10 UHS-I memory card, an additional LP-E6 Lithium-Ion camera battery for prolonged shooting, and a camera backpack optimized for video with dedicated space for an iPad. Also included are a Shoulder Support Rig and a Camera Mounted Shotgun Microphone.
If you own a Canon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon EOS 5D Mark III DSLR Camera Video Production Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon EOS 5D Mark III DSLR Camera Video Production KitDownload user manual for Canon EOS 5D Mark III DSLR Camera Video Production Kit
(PDF file, 16.42 MB)
Additional parameters of the Canon EOS 5D Mark III DSLR Camera Video Production Kit:
Specifications
    • Canon EOS 5D Mark III DSLR Camera with 24-105mm Lens
      Imaging
      Lens Mount Canon EF
      Camera Format Full-Frame (1.0x Crop Factor)
      Pixels Actual: 23.4 Megapixel
      Effective: 22.3 Megapixel
      Max Resolution 22.1 MP: 5760 x 3840
      Sensor Type / Size CMOS, 36 x 24 mm
      File Formats Still Images: JPEG, RAW
      Movies: MOV, MPEG-4 AVC/H.264
      Audio: Linear PCM
      Bit Depth 14-bit
      Memory Card Type CompactFlash
      SD
      SDHC
      SDXC
      Focus Control
      Focus Type Auto & Manual
      Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
      Autofocus Points 61
      Viewfinder/Display
      Viewfinder Type Pentaprism
      Viewfinder Coverage 100%
      Viewfinder Magnification Approx. 0.71x
      Diopter Adjustment - 3.0 to +1.0 m
      Display Screen 3.2" Rear Screen   LCD (1,040,000)
      Screen Coverage 100%
      Exposure Control
      ISO Sensitivity 100-25600 (High Sensitivity Mode: 50-102400)
      Shutter Type: Mechanical
      Speed: 1/8000 - 30 second
      Remote Control RS-80N3, LC-5 & RC-6 (Optional)
      Mirror Lock-Up Yes
      Metering Method Average metering, Center-weighted average metering, Multi-zone metering, Spot metering
      Exposure Modes Modes: AE Lock, Aperture Priority, Auto, Manual, Programmed Auto, Shutter Priority
      Compensation: -5 EV to +5 EV (in 1/3 EV steps)
      White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Kelvin, Manual, Shade, Tungsten
      Flash
      Built-in Flash No
      Max Sync Speed 1 / 200 seconds
      Flash Compensation -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
      External Flash Connection Hot Shoe, PC Terminal
      AV Recording
      Video Recording Yes
      File Size 1920 x 1080 (Full HD)
      1280 x 720
      640 x 480
      Frame Rate @ 1920 x 1080: 30 fps, 25 fps, 24 fps
      @ 1280 x 720: 60 fps, 50 fps
      @ 640 x 480: 30 fps, 25 fps
      Exposure Control Manual: Shutter Speed, Aperture, ISO
      ISO Sensitivity 100 - 12800, Expandable to 25600
      Exposure Compensation -3 EV to +3 EV (in 1/3 EV steps)
      Focus Auto
      Manual
      Audio Recording Optional External Mic: With Video, Stereo
      Performance
      Continuous Shooting Up to 6.0 fps
      Start-up Time 0.1 seconds
      Shutter Lag 0.2 seconds
      Self Timer 2 seconds, 10 seconds
      Interval Recording Not Specified By Manufacturer
      Connectivity 1/8" Headphone
      1/8" Microphone
      AV Output
      HDMI C (Mini)
      USB 2.0
      Wi-Fi Capable Yes
      Power
      Battery 1x LP-E6 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1800 mAh
      AC Power Adapter AC Adapter Kit ACK-E6 (Optional)
      Operating/Storage Temperature Operating
      32 to 104°F (0 to 40°C)
      Humidity: 0 - 85%
      Physical
      Dimensions (WxHxD) 6.0 x 4.6 x 3.0" / 15.2 x 11.7 x 7.6 cm
      Weight 30.34 oz / 860 g
      Kit Lens
      Focal Length 24 - 105mm
      Aperture Maximum: f/4
      Minimum: f/22
      Angle of View 84° - 23°
      Minimum Focus Distance 1.48' (.45 m)
      Magnification 0.23x
      Maximum Reproduction Ratio 1:4
      Elements/Groups 18/13
      Diaphragm Blades 8
      Autofocus Yes
      Image Stabilization Yes
      Filter Thread Front:77 mm
      Dimensions (DxL) Approx. 3.3 x 4.2" (8.38 x 10.67 cm)
      Weight 1.47 lb (.67 kg)
      Packaging Info
      Box Dimensions (LxWxH) 11.1 x 8.9 x 7.5"
    • 2 x SanDisk 16GB Extreme UHS-I U3 SDHC Memory Card (Class 10)
      Card Type SDHC
      Storage Capacity 16 GB
      Speed Class 10
      UHS Speed Class U3
      Bus Interface Speed UHS Class I
      Data Transfer Read Speed 90 MB/s Maximum
      Write Speed 40 MB/s Maximum
      Durability Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
      Insertion/Removal Cycles Not Specified By Manufacturer
      Operating Temperature -13 to 185°F/ -25 to 85°C
      Storage Temperature -40 to 185°F/ -40 to 85°C
      Error Correction Not Specified By Manufacturer
      Built-in Write-Protect Switch Yes
      File System Not Specified By Manufacturer
      RoHS Compliant Not Specified By Manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 5.0 x 2.6 x 0.2"
    • Ruggard Outrigger 45 Backpack
      Material Exterior: 600D polyester
      Lining: 200D polyester
      Type of Closure Zippers
      Tripod Holder Yes - two bottom straps
      Waist Belt Yes
      Carrying/Transport Options Adjustable backpack straps
      Top grab handle
      Sternum strap
      Interior Dimensions 10.0 x 14.5 x 5.0" (25.4 x 36.8 x 12.7 cm)
      Exterior Dimensions 11.5 x 15.5 x 7.5" (29.2 x 39.4 x 19.1 cm)
      Weight 2.4 lb (1.1 kg)
      Packaging Info
      Box Dimensions (LxWxH) 17.0 x 13.0 x 9.0"
    • 2 x Watson LP-E6 Lithium-Ion Battery Pack (7.4V, 2000mAh)
      Chemistry Lithium-ion
      Capacity 2000 mAh
      Output Voltage 7.4 V
      Watt-Hours 14.8 Wh
      Dimensions 2.2 x 1.5 x 0.8" (5.7 x 3.9 x 2.1 cm)
      Weight 2.8 oz (79 g)
      Packaging Info
      Box Dimensions (LxWxH) 5.4 x 3.2 x 0.4"
    • Rode VideoMic Pro Compact Directional On-Camera Microphone
      Operating Principle Line Gradient
      Transducer Condenser
      Diaphragm 0.50" (12.70 mm)
      Polar Pattern Supercardioid
      Frequency Range 40 Hz to 20 kHz
      Equivalent Noise Level 20 dB A-Weighted
      Maximum SPL 134 dB SPL 1%
      Impedance 200 ohms
      Sensitivity -32 dB, re: 1 V/Pa
      Power Requirements 9 V Battery
      Low-Cut Filter Yes @ 80 Hz
      Output Connectors 3.5mm TRS
      General
      Length 3.94" (100 mm)
      Diameter 2.95" (75 mm)
      Weight 3.00 oz (85 g)
      Packaging Info
      Box Dimensions (LxWxH) 8.2 x 6.2 x 2.4"
    • Duracell 9V Alkaline Battery (Coppertop)
      Chemistry Alkaline
      Output Voltage 9V
      Operating Voltage 9.6 - 4.8V
      Impedance 1700 m-ohm@1kHz
      Storage Temperature -4 to 95°F (-20 to 35°C)
      Operating Temperature Range -1 to 130°F (-20 to 54°C)
      Terminals Miniature snap
      Volume Typical: 1.4 cu in (22.8 cu centimeter)
      Dimensions 1.9 x 0.7 x 1.0" (48.5 x 17.5 x 26.5 mm)
      Weight 1.6 oz (45.4 g)
      Packaging Info
      Box Dimensions (LxWxH) 4.5 x 3.7 x 0.5"
    • Revo SR-1000 Shoulder Support Rig
      Capacity 5.5 lb (2.5 kg)
      Dimensions 19 x 10" (48.26 x 25.4 cm)
      Weight 2.25 lb (1.02 kg)
      Packaging Info
      Box Dimensions (LxWxH) 12.7 x 9.6 x 3.6"
    • Watson Duo LCD Charger with 2 LP-E6 Battery Plates
      Input Power 100-240 VAC, 50 / 60 Hz
      12 / 24 VDC, 2.0 A
      Output Power 1.2-8.4 VDC, 2.0 A (max.)
      USB 2.0 port: 5.0 VDC, 2.0 A (max.)
      Charging Time 2-6 hr
      Interface USB 2.0 port for charging another device
      Operating Temperature 32 to 104°F (0 to 40°C)
      Storage Temperature -4 to 140°F (-20 to 60°C)
      Dimensions Charger: 4.9 x 4.5 x 1.75" (12.4 x 11.4 x 4.45 cm)
      Cord length: 4.7' (1.4 m)
      Weight 7.7 oz (218 g)
      Packaging Info
      Box Dimensions (LxWxH) 9.6 x 6.3 x 2.6"
