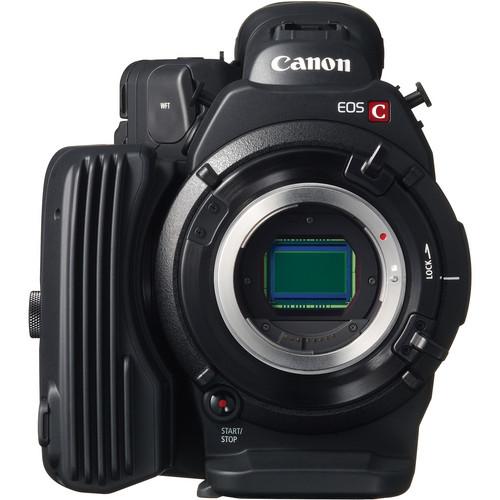

The Canon EOS C500 4K Cinema Camera (EF Lens Mount) represents Canon's first foray into the world of 4K digital cinema production. Sharing a sensor with the earlier EOS C300 camera, the EOS C500 fulfills the potential of the large (Super 35mm-size), high-resolution (8.8 Mp effective) CMOS imager by offering full 4K RAW output via 3G-SDI.
If you own a Canon digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon EOS C500 4K Cinema Camera (EF Lens Mount) 6345B002 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
59.94 Hz Mode: F9 (1920 x 1080/59.94i, ISO 640 (0 dB), 2000 lux, 89.9% Reflection) 50.00 Hz Mode: F10 (1920 x 1080/50i, ISO 640 (0 dB), 2000 lux, 89.9% Reflection)
S/N Ratio
59.94 Hz Mode: 54 dB (1920x1080/29.97p, Canon Log, ISO 850, Dynamic Range 800%) 50.00 Hz Mode: 54 dB (1920x1080/25p, Canon Log, ISO 850, Dynamic Range 800%)
Dynamic Range
During Normal Shooting: 300% With Canon Log Gamma: 800% (ISO 850 or above, gain 2.5dB or above)
With compatible EF lenses: 1/2, 1/3 stop, or fine setting
White Balance
Kelvin Setting: 2,000K ~ 15,000K in 100K increments Presets: Daylight (5,400K); Tungsten (3,200K); Kelvin White balance shift is available within Presets (-9 to +9)
4K RAW 10bit 4096x2160 or 3840x2160 at 59.94p/29.97p/23.98p/50p/25p/24p 4K RAW 10bit 4096x1080 or 3840x1080 at 62p up to 119.88p in 2 frame steps 2K RGB 444 12bit 2048x1080 or 1920x1080 at 59.94p/29.98p/23.98p/50p/25p/24p) 2K RGB 444 10bit 2048x1080 or 1920x1080 at 59.94p/29.98p/23.98p/50p/25p/24p) 2K YCC 422 10bit 2048x1080 or 1920x1080 62p up to 119.88p in 2 frame steps
Compression
Video: 8 Bit MPEG-2 Long GOP Audio: Linear PCM; 2-Channel; 16-Bit; 48 kHz
Maximum Bit Rate
50Mbps (CBR)
Recording Options
50 Mbps (CBR) 4:2:2 422P@HL 1920x1080 at 59.94i/29.98p/23.98p/50i/25p/24.00p 1280x720 at 59.94/29.98p/23.98p/50p/25p/24.00p 35 Mbps (VBR) 4:2:0 MP@HL 1920x1080 at 59.94i/29.98p/23.98p/50i/25p 1280x720 at 59.94/29.98p/23.98p/50p/25p 25 Mbps (CBR) 4:2:0 MP@H14 1440x1080 at 59.94i/29.98p/23.98p/50i/25p
Recording Time
2GB: 5 min (at 50 Mbps), 5 min (at 35 Mbps), 10 min (at 25 Mbps) 4GB: 10 min (at 50 Mbps), 10 min (at 35 Mbps), 20 min (at 25 Mbps) 8GB: 20 min (at 50 Mbps), 25 min (at 35 Mbps), 40 min (at 25 Mbps) 16GB: 40 min (at 50 Mbps), 55 min (at 35 Mbps), 80 min (at 25 Mbps) 32GB: 80 min (at 50 Mbps), 110 min (at 35 Mbps), 155 min (at 25 Mbps) 64GB: 160 min (at 50 Mbps), 225 min(at 35 Mbps), 310 min (at 25 Mbps)
Recording Media
CF Card (Type 1 Only); 2 Slots (Movie Files); UDMA supported SD/SDHC/SDXC cards (JPEG), Custom Picture Data*, Clip Metadata, and menu settings *Custom Picture Data and settings are not compatible with data from others Canon models
File Format
MXF (OP-1a)
Maximum Clip Number
999 (per media)
Audio Features
Recording Channel Selection: CH1/CH2, CH1/CH1, CH2/CH2, ALL CH/ALL CH XLR Mic Trimming: -12dB, -6 dB, 0dB or +12 dB Limiter: available Recording Level Adjustment Range: - Infinity to +18dB Phantom Power: +48V Headphone Adjustment: 16 Settings (volume is muted at lowest setting) 1 KHz Tone: -12, -18, or -20 dB
Slow and Fast Motion Recording
This feature records at a different frame rate then the playback rate, allowing for fast and slow motion effects. Slow and Fast Motion Recording is available in 4K and 2K modes to external recording devices. 4K RAW (4096x2160/3840x2160) 1-60 fps (60Hz/24:00); 1-50 (50Hz) 4K HRAW (4096x1080/3840x1080) 1-60, 62-120 in 2 frame increments (60Hz/24:00); 1-50, 52-100 in 2 frame increments (50Hz) 2K RGB 4:4:4 (2048x1080/1920x1080) 1-60. 62-120 in 2 frame increments (60Hz/24:00); 1-50, 52-100 in 2 frame increments (50Hz) 2K YCC 4:2:2 (2048x1080/1920x1080) 1-60, 62-120 in 2 frame increments (60Hz/24:00); 1-50, 52-100 in 2 frame increments (50Hz) 50 Mbps 1920x1080 1-30 (29.97p/23.98p/24.00p); 1-25 (50i/25p) 50 Mbps 1280x720 1-60 (59.94p/29.97p/23.98p/24.00p); 1-50 (50p/25p) 35 Mbps 1920x1080 1-30 (29.97p/23.98p/24.00p); 1-25 (50i/25p) 35 Mbps 1280x720 1-60 (59.94p/29.97p/23.98p/24.00p); 1-50 (50p/25p) 25 Mbps 1440x1080 1-30 (29.97p/23.98p)
Time Code
Drop Frame (not available in 24P) Non-Drop Frame
Time Code Modes
Regeneration, Record Run, Free Run and External Source
Special Recording Functions
Relay Recording, Double-Slot Recording, Copying between Media, Photo Recording Mode, Waveform Monitor (Standard and RGB Component modes), Vectorscope, Peaking (2 types), Zebra Pattern, Magnify, Edge Monitor Focus Assist, Black and White Mode, Interval Record, Frame Record Pre-Record (3 seconds cache), Scan Reverse
Viewing Angle Adjustment: viewing Angle can be adjusted up and down 60° Diopter Adjustment Range: +2.0 to -5.5 Adjustments: brightness, contrast, color, and backlight
Monitor
Type: LCD Display Adjustments: brightness, contrast, color, sharpness, and backlight
Connector: BNC (1) HD tri-level signal (HD Sync) 1920x1080: 59.94i/50i/23.98/24.00, 1280x720: 59.94p/50p/23.98, 24.00; The HD standard analog component Y signal with the black muted is output. (2) HD-Y signals (HD-Y) 1920x1080: 60i, 59.94i/50i, 1280x720: 60p/59.94p/50p; Only the HD standard analog component Y signal is output. (3) Black burst signal 480: 59.94i, 576: 50i; The SD standard analog composite signal with the black muted is output. (4) Composite 480: 59.94i, 576: 50i; The SD standard analog composite signals are output.
HDMI
Connector: HDMI (Type A) HD 8-bit 4:2:2 (YPbPr) 1920x1080: 60i/59.94i/50i, 1280x720: 60p/59.94p/50p SD 8-bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i
Headphone Jack
1x 3.5mm stereo mini-jack
Remote Terminals
Fully LANC Compatible Remote control through WFT-E6A accessory is also possible
Automatic Calendar range January 1st, 2010 through December 31, 2031 selectable in American, Japanese and European Date formats.
World Clock
World Clock support - UTC time setting: Setting range from +14:00 to - 12:00
Power
Supply: DC 7.4 V (Battery Pack) / DC 8.4 V (DC In) Battery: BP-9 Series (Excluding BP-925) Compact Power Adapter: CA-940N
Operating Conditions
Performance requirements: (0° ~ 40° C) 85% (relative humidity) Operating requirements: (-5° ~ 45° C) 60% (relative humidity)
Dimensions
Body only: 6.3 x 7.0 x 6.7 in (160 x 179 x 171 mm) With monitor: 7.3 x 9.8 x 7.4 in (185 x 249 x187 mm) With handle and monitor: 7.3 x 11.2 x 11.9 in (185 x 284 x 301 mm)
Weight
Body only: 4 lb (1820 g) Monitor Unit: 1.4 lb (645 g) Handle Unit: 6.3 oz (180 g) With monitor, BP-955, and 2 CF cards: 6.0 lb (2705 g) With monitor, handle, BP-955, and 2 CF cards: 6.4 lb. (2885 g)
