User manual for Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Canon
- Basic description and contents of package
- Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
- Safety instructions
- Startup and operation of the laser printers
- Tips for setting up your Canon
- Settings and expert assistance
- Contact Canon service
- Troubleshooting
- Warranty information
- Price: 170 USD
|
We recommend checking out our discussion threads on the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA,
which address similar problems with connecting and setting up Laser Printers Canon.
|
User manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA
The user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

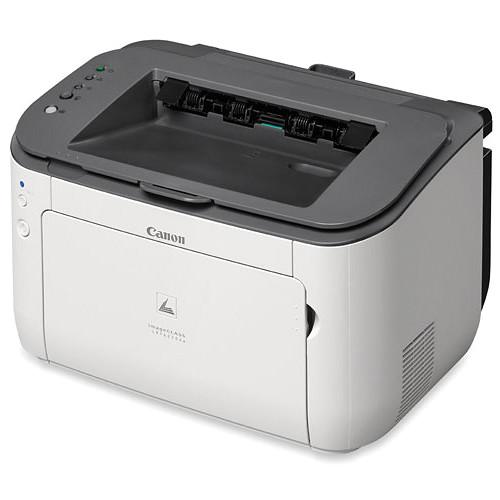

Print at fast speeds without taking up too much space with the Wi-Fi capable imageCLASS LBP6230dw Monochrome Laser Printer from Canon. Using monochrome laser print technology, this unit has a rate of 26 ppm and when set to automatic duplex it will work at 16 ppm. Also, it has a 600 x 600 dpi print resolution which is equivalent to 2400 x 600 dpi for detailed imagery and text. And, as speed is a priority it has a first print out time of just 6 seconds.
Built-in Wi-Fi and Ethernet connectivity dramatically expands the printing possibilities. When using the Canon Mobile Printing app users can print directly from an iOS or Android device. Paper handling is done through either the 250-sheet cassette or a 1-sheet multipurpose tray and it can work with documents from 3 x 5" to 8.5 x 14" in size. Additionally, it has a monthly duty cycle of 8,000 pages as well as a USB 2.0 connectivity option.
|
If you own a Canon laser printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA:
| Printing Technology | Monochrome laser | | Maximum Resolution | 600 x 600 dpi (2400 x 600 dpi equivalent) | | Print Speed | Simplex: 26 ppm
Duplex: 16 ppm | | First Print Out Speed | 6 seconds | | Print Color | Black | | Duplex Printing | Yes, automatic | | Toner Cartridge Compatibility | Cartridge 126 (~2,100 pages) | | Printer Duty Cycle | Monthly: 8,000 pages
Monthly Recommended Print Volume: 500-2,500 pages | | Print Features | Collate, poster, booklet, watermark, toner saver, page composer | | Paper Handling | Cassette
Multipurpose tray | | Paper Types | Plain paper, heavy paper, transparency, label, index card, envelope | | Paper Sizes | Letter, legal, A4, A5, B5, executive
Envelope: Com 10, Monarch, DL, C5 | | Maximum Printable Area | 8.5 x 14.0" (21.6 x 35.6 cm) | | Media Weight | 16-43 lb bond | | Paper Capacity | Cassette: 250 sheets
Multipurpose Tray: 1 sheet
Output Tray: 100 sheets | | Interface | USB 2.0
10/100Base-T Ethernet
Wi-Fi 802.11b/g/n | | Wireless Printing Features | Infrastructure Mode
Canon Mobile Printing | | OS Compatibility | Windows 8.1, 8, 7, Server 2012, Server 2008 R2, Server 2008, Vista, Server 2003, XP
Mac OS X 10.6 and later
Linux
Citrix (FR2 and later) | | Web Browser Control | Embedded Web Server (Remote UI)
Internet Explorer 7.0 or higher, Safari 3.2.1 or higher | | Memory | 64 MB | | Printer Language | UFR II LT (host-based) | | Protocols | Print: LPD (IPv4, IPv6), RAW (IPv4, IPv6), WSD-Print (IPv4, IPv6)
TCP/IP Set: (IPv4) RARP, BOOTP, DHCP, DNS, DynamicDNS, MulticastDNS, WINS (IPv6) DHCP, DNS, DynamicDNS, MulticastDNS
Network Management: SNMPv1 (IPv4, IPv6), SNMPv3 (IPv4, IPv6), SLP (IPv4, IPv6) | | Network Security | Open System, Shared Key, WPA-PSK, WPA2-PSK, WEP (64/128-bit), TKIP, AES | | Interface | 5 LED indicators and 4 operation buttons | | Warm-Up Time | 10 seconds or less
Recovery Time: 0.5 seconds | | Power Requirements | 120-127 VAC, 60 Hz | | Power Consumption | Maximum: 930 W or less
During Operation: 400 W
Standby: 2.1 W (Wireless), 1.4 W (USB/Network)
Energy Saver: 1.6 W (Wireless), 0.9 W (USB/Network) | | Typical Power Consumption | 0.7 kWh | | Certifications | EPEAT Bronze
ENERGY STAR | | Acoustic Noise | Sound Power
Operation: 6.8 B or less
Standby: Inaudible
Sound Pressure
Operation: 52 dB or less
Standby: Inaudible | | Operating Conditions | Temperature: 50 to 86°F (10 to 30°C)
Humidity: 20 to 80%, relative | | Dimensions | 14.9 x 11.5 x 9.6" (37.8 x 29.2 x 24.4 cm) | | Weight | 15.4 lb (7 kg) without cartridge | | Package Weight | 21.2 lb | | Box Dimensions (LxWxH) | 17.6 x 14.5 x 13.0" | |
The user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA can be downloaded in .pdf
format if it did not come with your new laser printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon laser printerss,
where you can use our link to download the user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA.
The user manual lists all of the functions of the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA,
all the basic and advanced features and tells you how to use the laser printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA. User manuals are also
available on the Canon website under Computers & Solutions - Printers & Accessories - Laser Printers.
Question and answer discussion forum concerning user instructions and resolving problems with the Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA
Post new comment to Canon imageCLASS LBP6230dw Monochrome Laser Printer 9143B008AA
| Subject: change print settings | | Date: 15.10.2022 21:43:50 | Author: James Pauley | | When I print an 8.5"x 11", it only prints on the top half of the page and the print is very small. How do I change print settings? I have the "manual.pdf" but I can't open any of the sub-sections. | | Reply |
