User manual Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA

Operating instructions and pdf manual for use - Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA User manual, User manual Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA, Canon, imageCLASS, LBP7110Cw, Color, Laser, Printer, 6293B


User manual for Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA

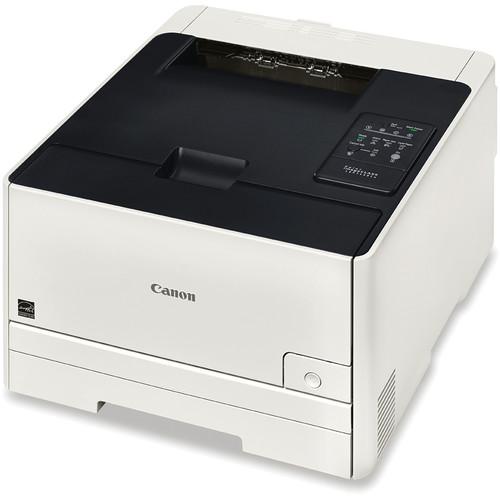

Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 129 USD
We recommend checking out our discussion threads on the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA, which address similar problems with connecting and setting up Laser Printers Canon.



User manual for the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA

The user manual for the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

Designed to fill the needs of home and small offices, the 14 ppm imageCLASS LBP7110Cw Color Laser Printer from Canon will quickly produce quality color documents. It has a print resolution of 600 x 600 dpi, which uses Canon's laser printing technology to provide a quality equivalent to that of a 1200 x 1200 dpi print. Also, it has built-in Wi-Fi connectivity which enables wireless printing from anywhere in your network as well as directly from mobile devices using the Canon Mobile Printing app.

Printing is quick with a first print out time of 18 seconds and it has a 150-sheet input tray for handling documents from 3.3 x 5" up to 8.5 x 14" in size. Also, it has a rated monthly duty cycle of 30,000 pages along with standard USB 2.0 and Ethernet connectivity.
If you own a Canon laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA:
Specifications
    Performance
    Printing Technology Color laser
    Maximum Resolution 600 x 600 dpi (1200 x 1200 dpi equivalent)
    Print Speed 14 ppm
    First Print Out Speed 18 seconds
    Print Color CMYK (cyan, magenta, yellow, black)
    Duplex Printing No
    Toner Cartridge Compatibility Cartridge 131 Black (~1400 pages)
    Cartridge 131 H Black (~2400 pages)
    Cartridge 131 Cyan (~1500 pages)
    Cartridge 131 Magenta (~1500 pages)
    Cartridge 131 Yellow (~1500 pages)
    Printer Duty Cycle Monthly: 30,000 pages
    Print Features Watermark, toner saver, page composer
    Media Handling
    Paper Handling Input tray
    Output tray
    Paper Types Plain, heavy, transparency, labels, index card, envelope, coated paper, gloss film
    Paper Sizes 3.3 x 5.0" to 8.5 x 14.0" (8.3 x 12.7 cm to 21.6 x 35.6 cm)
    Media Weight 16-60 lb bond
    Paper Capacity Input Tray: 150 sheets or 10 envelopes
    Output Tray: 125 sheets
    Connectivity
    Interface USB 2.0
    Ethernet 10/100 Base-T
    Wi-Fi IEEE 802.11 b/g/n
    Wireless Printing Features Canon Mobile Print app for iOS and Android
    OS Compatibility Windows 8.1, 8, 7, Server 2008 R2, Server 2008, Vista, Server 2003, XP
    Linux, Citrix
    Mac OS X 10.6 and later
    Memory 64 MB
    Printer Language UFR II LT
    Web Browser Support Microsoft Internet Explorer 7.0 or higher
    Protocols LPD, RAW, WSD
    TCP/IP IPv4: RARP, BOOTP, DHCP, DNS, DynamicDNS, MulticastDNS, WINS
    IPv6: DHCP, DNS, DynamicDNS, MulticastDNS
    Network Protocols SNMPv1, SNMPv3
    Network Security IP filtering, MAC address filtering, Secure Sockets Layer (SSL), SNTP, IEEE802.1x
    General Attributes
    Control Panel Twelve LED indicators
    One operation button / three operation keys
    Warm-Up Time 20 seconds or less
    Recovery Time: 4 seconds
    Power Requirements 120-127 VAC, 60 Hz
    Power Consumption Max: 800 W
    Operation: 340 W
    Standby: 12 W
    Energy Saver: approx. 4 W
    Sleep: 0.9 W
    Typical Power Consumption TEC: 0.4 kWh
    Acoustic Noise Sound Power
    Operating: 6.5 B or less
    Standby: Inaudible
    Sound Pressure
    Operating: 49 dB
    Standby: Inaudible
    Operating Conditions Temperature: 50 to 86°F (10 to 30°C)
    Humidity: 20 to 80%, relative non-condensing
    Dimensions 16.0 x 17.9 x 10.0" (40.6 x 45.5 x 25.4 cm)
    Weight 36.6 lb (16.6 kg) without cartridges
    Packaging Info
    Package Weight 47.0 lb
    Box Dimensions (LxWxH) 21.0 x 19.0 x 14.0"
    The user manual for the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon laser printerss, where you can use our link to download the user manual for the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA.

    The user manual lists all of the functions of the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon imageCLASS LBP7110Cw Color Laser Printer 6293B023AA. User manuals are also available on the Canon website under Computers & Solutions - Printers & Accessories - Laser Printers.
