User manual Canon LV-7490 LCD Projector 5315B002

Operating instructions and pdf manual for use - Canon LV-7490 LCD Projector 5315B002 User manual, User manual Canon LV-7490 LCD Projector 5315B002, Canon, LV-7490, LCD, Projector, 5315B002, Video


User manual for Canon LV-7490 LCD Projector 5315B002

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.

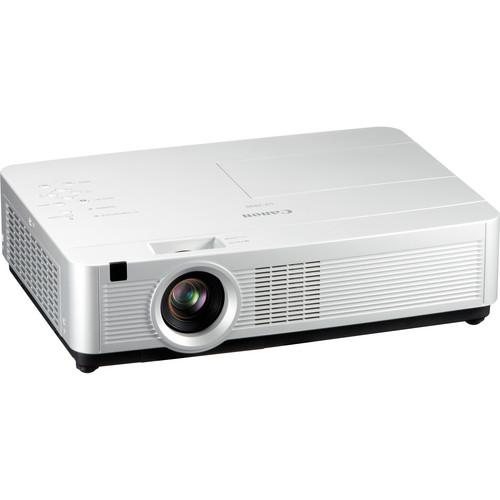

Canon  LV-7490 LCD Projector 5315B002
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Canon LV-7490 LCD Projector 5315B002, which address similar problems with connecting and setting up Multimedia Projectors Canon.



User manual for the Canon LV-7490 LCD Projector 5315B002

The user manual for the Canon LV-7490 LCD Projector 5315B002 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The 4000 lumens Canon LV-7490 LCD Projector is not only a jack-of-all-trades, it's a master of all of them. Just look at the features and specs. It's got a 2000:1 contrast ensuring that what you project shows deep blacks and bright whites. Its XGA (1024 x 768) resolution is a great match for today's laptop and PC monitors. Beyond XGA it can project 720p and 1080i high-definition pictures via its composite jack and it can also handle a number of world TV standards.
If you own a Canon multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon LV-7490 LCD Projector 5315B002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon  LV-7490 LCD Projector 5315B002Download user manual for Canon LV-7490 LCD Projector 5315B002
(PDF file, 5.58 MB)
Additional parameters of the Canon LV-7490 LCD Projector 5315B002:
Specifications
    Image Display
    Display System 3-Chip 0.63" / 1.60 cm Micro Lens Array (MLA) LCD
    Native Resolution XGA - 1024 x 768
    Supported Resolutions WUXGA - 1920 x 1200
    UXGA - 1600 x 1200
    SXGA+ - 1400 x 1050
    SXGA - 1280 x 1024
    WXGA - 1280 x 768
    XGA - 1024 x 768
    SVGA - 800 x 600
    VGA - 640 x 480
    Format NTSC 4.43
    PAL 60, M, N
    SECAM
    HDTV Compatibility 1080i
    1035i
    720p
    575p
    575i
    480p
    480i
    Pixels 2,359,296
    Brightness 4000 Lumens
    Uniformity 85%
    Aspect Ratio 4:3
    Contrast Ratio 2000:1
    DLP Link 3D None
    Scan Horizontal: 15 - 100 kHz
    Vertical: 50 - 100 Hz
    Lens
    Lens F 1.6 - 1.76 (f = 22.3 - 26.8 mm)
    Lens Shift None
    Zoom 1.2-1x
    Throw Distance 5 - 41.7' (1.4 - 12.7 m)
    Projection Size 40 - 300" / 1016.00 - 7620.00 mm
    Features
    Keystone Correction Manual: ± 30°
    Auto: ± 20°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Projection Tilt Option Yes
    Built-in Speaker Yes, 10 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 1x 15-pin VGA Video (Input)
    1x RCA Composite Video (Input)
    1x Ethernet Control/Service (Input)
    1x RCA Stereo (L/R) Audio (Input)
    1x 15-pin VGA Video (Output)
    1x RS-232C Control (Input/Output)
    General
    Lamp (Bulb) 1x UHP
    Watts 245 W
    Life Normal Mode: 3000 Hours
    Quiet Mode: 5000 Hours
    Fan Noise Normal Mode: 29 dB
    Quiet Mode: 25 dB
    Remote Control Yes
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: <322 W
    Quiet Mode: 6.2 W
    Standby Mode: .5 W
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Storage
    14 to 140°F (-10 to 60°C)
    Humidity: 5 - 90%
    Dimensions (WxHxD) 13.8 x 3.4 x 10.0" / 35.0 x 8.6 x 25.4 cm
    Weight 7.3 lb / 3.31 kg
    Packaging Info
    Package Weight 12.5 lb
    Box Dimensions (LxWxH) 17.0 x 15.9 x 7.8"
    The user manual for the Canon LV-7490 LCD Projector 5315B002 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon multimedia projectorss, where you can use our link to download the user manual for the Canon LV-7490 LCD Projector 5315B002.

    The user manual lists all of the functions of the Canon LV-7490 LCD Projector 5315B002, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon LV-7490 LCD Projector 5315B002. User manuals are also available on the Canon website under A/V Presentation - Projectors - Multimedia Projectors.
