User manual for Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002
- Manufacturer: Canon
- Basic description and contents of package
- Product classification: A/V Presentation - Projectors - Multimedia Projectors
- Safety instructions
- Startup and operation of the multimedia projectors
- Tips for setting up your Canon
- Settings and expert assistance
- Contact Canon service
- Troubleshooting
- Warranty information
- Price: 769 USD

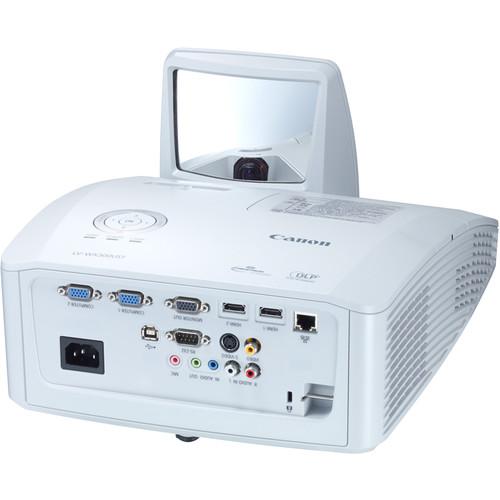

Click to enlarge image
|
We recommend checking out our discussion threads on the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002,
which address similar problems with connecting and setting up Multimedia Projectors Canon.
|
User manual for the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002
The user manual for the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.
The Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP Projector has a 0.35:1 throw ratio, which will allow it to display large images from very short distances. Its 3000 lumens of brightness combined with its 1280 x 800 resolution and 7500:1 contrast ratio will provide bright, detailed images even in rooms with some ambient light.

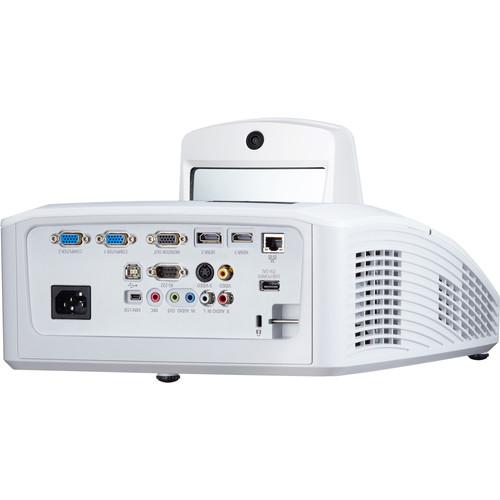

The projector offers flexible connectivity, including two HDMI inputs for displaying high-resolution images from various sources such as computers and Blu-ray players. Additional connectivity includes an S-video, a composite video, and two VGA inputs, plus a VGA output for daisy chaining your video signal to other projectors or displays. Dual 10W built-in speakers make it easy to add sound without additional equipment, and its RJ-45 port makes it possible to control and monitor the projector over a network, including compatibility with Crestron, AMX, and Extron devices. The LV-WX300UST is capable of projecting 3D content via the DLP-Link system for users equipped with DLP Link 3D glasses and a 3D Blu-ray player.
This model also features flexible image quality adjustment features, including a selection of image modes to choose from to best optimize the content being displayed, as well as a Screen Color Correction feature that will adjust the color of the projected image for proper coloring when displaying on non-white surfaces.
|
If you own a Canon multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002:
| Display System | 1-Chip 0.65" / 1.65 cm DMD DLP | | Native Resolution | WXGA - 1280 x 800 | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Brightness | Normal Mode: 3000 Lumens
Eco Mode: 2500 Lumens | | Uniformity | 75% | | Aspect Ratio | 16:10 | | Contrast Ratio | 2300:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing
Side by Side
Top Bottom | | Scan | Horizontal: 23.97 - 120 Hz
Vertical: 15.625 - 101.6 kHz | | Focus | Manual | | Lens | F 2.5 (f = 5.1 mm) | | Zoom | Manual: 1.1x
Digital: 2x | | Throw Ratio | 0.35:1 | | Projection Size | 80 - 100" / 203.20 - 254.00 cm | | Keystone Correction | Digital: Vertical: ± 30° | | Ceiling Mountable | Yes | | Projection Tilt Option | Yes | | Built-in Speaker | Yes, 20 W (Stereo) | | Picture Modes | Dynamic, Photo, Presentation, Standard, User 1, sRGB | | Inputs/Outputs | 2x 15-pin VGA Video (Input)
2x HDMI Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 15-pin VGA Video (Output)
1x Ethernet Control (Input/Output)
1x RS-232C Control (Input/Output)
1x USB Type-B Female (Input) | | Lamp (Bulb) | 1x SHP | | Watts | Normal Mode: 230 W
Eco Mode: 200 W | | Life | Normal Mode: 5000 Hours
Eco Mode: 8000 Hours | | Fan Noise | Normal Mode: 33 dB
Eco Mode: 29 dB | | Maximum Pixel Clock | 165 MHz | | Remote Control | Yes | | Security | Cable Lock Slot
Security Bar | | Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Normal Mode: 300 W
Quiet Mode: 240 W
Standby Mode (Normal): 6 W
Standby Mode (Eco): .5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (WxHxD) | 11.3 x 6.6 x 14.7" / 28.7 x 16.8 x 37.3 cm (including protrusion) | | Weight | 11 lb / 4.99 kg | | Package Weight | 19.6 lb | | Box Dimensions (LxWxH) | 20.1 x 17.3 x 11.2" | |
The user manual for the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon multimedia projectorss,
where you can use our link to download the user manual for the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002.
The user manual lists all of the functions of the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Canon LV-WX300UST 3000-Lumen WXGA Ultra-Short Throw DLP 0646C002. User manuals are also
available on the Canon website under A/V Presentation - Projectors - Multimedia Projectors.
