User manual for Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002

Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information

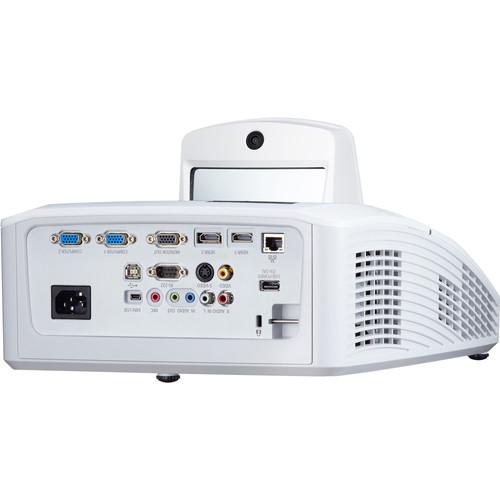

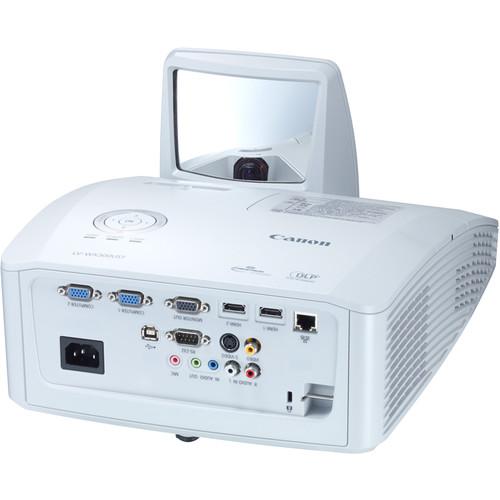

Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002 Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002
Click to enlarge image

We recommend checking out our discussion threads on the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002, which address similar problems with connecting and setting up Multimedia Projectors Canon.



User manual for the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002

The user manual for the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw Interactive DLP Projector has interactive technology that allows for up to four interactive pens to simultaneously write text and diagrams on the projected screen. It features a 0.35:1 throw ratio, which will allow it to display large images from very short distances. Its 3000 lumens of brightness combined with its 1280 x 800 resolution and 7500:1 contrast ratio will provide bright, detailed images even in rooms with some ambient light.

The projector offers flexible connectivity, including two HDMI inputs for displaying high-resolution images from various sources such as computers and Blu-ray players. Additional connectivity includes an S-video, a composite video, and two VGA inputs, plus a VGA output for daisy chaining your video signal to other projectors or displays. Dual 10W built-in speakers make it easy to add sound without additional equipment, and its RJ-45 port makes it possible to control and monitor the projector over a network, including compatibility with Crestron, AMX, and Extron devices. The LV-WX300USTI is capable of projecting 3D content via the DLP-Link system for users equipped with DLP Link 3D glasses and a 3D Blu-ray player.

This model also features flexible image quality adjustment features, including a selection of image modes to choose from to best optimize the content being displayed, as well as a Screen Color Correction feature that will adjust the color of the projected image for proper coloring when displaying on non-white surfaces.
If you own a Canon multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002Download user manual for Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002
(PDF file, 5.81 MB)
Additional parameters of the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002:
Specifications
Image Display
Display System 1-Chip 0.65" / 1.65 cm DMD DLP
Native Resolution WXGA - 1280 x 800
Supported Resolutions Maximum: UXGA - 1600 x 1200
Brightness Normal Mode: 3000 Lumens
Eco Mode: 2500 Lumens
Uniformity 75%
Aspect Ratio 16:10
Contrast Ratio 2300:1
DLP Link 3D Yes
Supported 3D Formats Frame Sequential
Frame Packing
Side by Side
Top Bottom
Scan Horizontal: 23.97 - 120 Hz
Vertical: 15.625 - 101.6 kHz
Lens
Focus Manual
Lens F 2.5 (f = 5.1 mm)
Zoom Manual: 1.1x
Digital: 2x
Throw Ratio 0.35:1
Projection Size 80 - 100" / 203.20 - 254.00 cm
Features
Keystone Correction Digital: Vertical: ± 30°
Ceiling Mountable Yes
Projection Tilt Option Yes
Built-in Speaker Yes, 20 W (Stereo)
Picture Modes Dynamic, Photo, Presentation, Standard, User 1, sRGB
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
2x HDMI Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 15-pin VGA Video (Output)
1x Ethernet Control (Input/Output)
1x RS-232C Control (Input/Output)
1x USB Type-B Female (Input)
1x Mini-USB Type-B Female (Input)
1x USB Type-A Female (Input)
General
Lamp (Bulb) 1x SHP
Watts Normal Mode: 230 W
Eco Mode: 200 W
Life Normal Mode: 5000 Hours
Eco Mode: 8000 Hours
Fan Noise Normal Mode: 33 dB
Eco Mode: 29 dB
Maximum Pixel Clock 165 MHz
Remote Control Yes
Security Cable Lock Slot
Security Bar
Languages Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 300 W
Quiet Mode: 240 W
Standby Mode (Normal): 6 W
Standby Mode (Eco): .5 W
Temperature Operating
41 to 104°F (5 to 40°C)
Storage
-4 to 140°F (-20 to 60°C)
Dimensions (WxHxD) 11.3 x 7.6 x 14.7" / 28.7 x 19.3 x 37.3 cm (including protrusion)
Weight 11 lb / 4.99 kg
Packaging Info
Package Weight 20.25 lb
Box Dimensions (LxWxH) 20.2 x 17.3 x 11.4"
The user manual for the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon multimedia projectorss, where you can use our link to download the user manual for the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002.

The user manual lists all of the functions of the Canon LV-WX300USTI 3000-Lumen WXGA Ultra-Short Throw 0647C002, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.
