User manual Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002

Operating instructions and pdf manual for use - Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002 User manual, User manual Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002, Canon, LX-MW500, 5000-Lumen, WXGA, DLP, Projector, 0967C002,


User manual for Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002

Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information

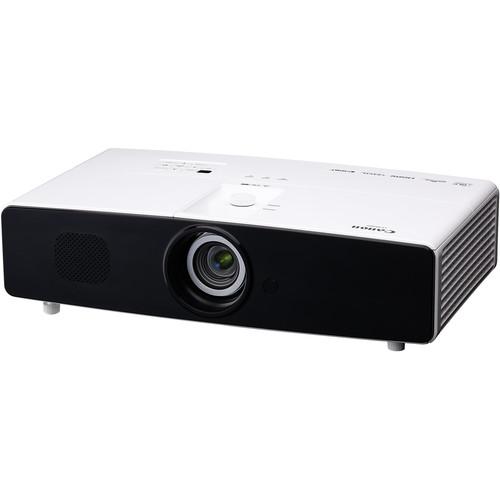

Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002 Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002
Click to enlarge image

We recommend checking out our discussion threads on the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002, which address similar problems with connecting and setting up Multimedia Projectors Canon.



User manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002

The user manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Designed with the versatility to perform in educational, corporate, and house of worship applications, the Canon LX-MW500 5000-Lumen WXGA DLP Projector features a high brightness of 5000 lumens and a contrast ratio of 3750:1, keeping images bright and clear. Its native resolution of 1280 x 800 will help ensure sharp images for those seated near the screen.

The LX-MW500 features S-Video, composite, two HDMI, and two VGA inputs to connect a number of various sources, plus a VGA output for daisy chaining two or more projectors with the same image. Additionally, one HDMI input features MHL compliance for connecting to a smartphone or tablet. An analog audio input and output are also onboard, and a built-in 10-watt mono speaker will allow you to show your presentations without an additional speaker setup.

The 1.12 to 1.80:1 throw ratio will provide a range of setup locations, further adding to the projector's versatility. It is controllable via Ethernet, RS-232, or the included IR remote. Also included is a VGA cable for instant connection.
If you own a Canon multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002:
Specifications
Image Display
Display System 1-Chip DMD DLP
Native Resolution WXGA - 1280 x 800
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 1080p
1080i
720p
576p
576i
480p
480i
Pixels 1,024,000
Brightness Normal Mode: 5000 Lumens
Eco Mode: 4000 Lumens
Uniformity 75%
Aspect Ratio Native: 16:10
Contrast Ratio 3750:1
Scan Vertical: 24 - 119.989 Hz
Horizontal: 15.73 - 101.563 kHz
Lens
Focus Manual
Lens F 2.45 - 3.07 (f = 15.75 - 25.1 mm)
Lens Shift Vertical: 53 -55%
Zoom 1.6x
Throw Distance 4.5 - 19.0' (1.4 - 5.8 m)
Throw Ratio 1.12 - 1.80:1
Projection Size 60 - 240" / 152.40 - 609.60 cm (Max Diagonal: 240" / 609.60 cm)
Features
Keystone Correction Digital: Yes, Vertical: ± 30°
Digital: Yes, Horizontal: ± 30°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 10 W (Mono)
Picture Modes Cinema, Presentation, Standard, User 1, User 2, sRGB
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Output)
1x HDMI Audio/Video (Input)
1x HDMI with MHL Support Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x Ethernet LAN (Input)
1x RS-232C Control (Input)
1x USB Power (Output)
1x USB Service (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
General
Lamp (Bulb) 1x SHP
Replacement Lamp LX-LP02
Watts Normal Mode: 370 W
Eco Mode: 296 W
Life Normal Mode: 2000 Hours
Eco Mode: 2500 Hours
Fan Noise Normal Mode: 36 dB
Eco Mode: 33 dB
Remote Control Yes
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 500 W
Eco Mode: 400 W
Standby Mode (Normal): 3 W
Standby Mode (Eco): .5 W
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 80%
Dimensions (WxHxD) 18.3 x 4.8 x 10.3" / 46.5 x 12.2 x 26.2 cm
Weight 11.9 lb / 5.40 kg
The user manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon multimedia projectorss, where you can use our link to download the user manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002.

The user manual lists all of the functions of the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon LX-MW500 5000-Lumen WXGA DLP Projector 0967C002. User manuals are also available on the Canon website under A/V Presentation - Projectors - Multimedia Projectors.
