User manual Canon PowerShot G3 X Digital Camera

Operating instructions and pdf manual for use - Canon PowerShot G3 X Digital Camera User manual, User manual Canon PowerShot G3 X Digital Camera, Canon, PowerShot, G3, X, Digital, Camera, Video


User manual for Canon PowerShot G3 X Digital Camera

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Canon  PowerShot G3 X Digital Camera
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification:
  • Safety instructions
  • Startup and operation of the
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the Canon PowerShot G3 X Digital Camera, which address similar problems with connecting and setting up Canon.



User manual for the Canon PowerShot G3 X Digital Camera

The user manual for the Canon PowerShot G3 X Digital Camera provides necessary instructions for the proper use of the product .

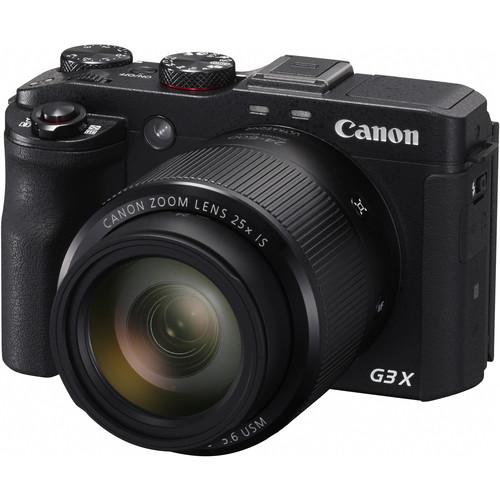

Reach out and capture distant scenes and subjects without compromise thanks to the large 20.2-megapixel 1.0" High-Sensitivity CMOS sensor and 25x optical zoom lens present on the PowerShot G3 X Digital Camera from Canon. The Canon lens offers a fast maximum aperture range of f/2.8-5.6 for operation in a range of conditions while the zoom range extends from a wide angle 24mm equivalent to a super telephoto 600mm equivalent. Also, operating at odd angles, or when taking a selfie, is benefitted by the inclusion of a 3.2" 1.62M-dot multi-angle tilting touchscreen LCD.

When combining the High-Sensitivity Sensor with the DIGIC 6 processor, the Canon HS System is created, providing excellent low-light performance up to ISO 12,800 as well as a plethora of other capabilities. Continuous shooting at up to 5.9 fps is possible with no buffer time to slow you down, and the High-Speed AF System will lock focus in as fast as 0.14 seconds. Focusing is also accurate through the implementation of 31 points across the frame. Another feature of this combo is full HD video recording at up to 60p and the ability to output the video live over an HDMI cable.

Body design is critical when it comes to compact long zoom cameras, and the G3 X delivers with multiple physical control points. A continuous ring is available on the lens barrel while an exposure compensation dial, mode dial, front dial, and controller wheel are also present to make adjustments. Additionally, it has built-in Wi-Fi connectivity with NFC (Near Field Communication) for direct connection with smartphones, tablets, and the CS100 Connect Station.
If you own a Canon and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon PowerShot G3 X Digital Camera in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon PowerShot G3 X Digital Camera:
Specifications
Imaging
Pixels Actual: 20.9 Megapixel
Effective: 20.2 Megapixel
Sensor 1" CMOS
Bit Depth 14-bit
File Formats Still Images: JPEG, RAW
Movies: MPEG-4 AVC/H.264
Audio: AAC LC
Max Resolution 20 MP: 5472 x 3648
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image Stabilization Optical
Optics
Lens EFL: 8.8-220mm (35 mm equivalent: 24-600mm)
Aperture: f/2.8 (W) - 5.6 (T)
Filter Thread None
Zoom Optical: 25x
Digital: 4x
Focus Range Wide: 1.97" (5 cm) - Infinity
Telephoto: 33.46" (85 cm) - Infinity
Macro: 1.97" (5 cm) - 19.69" (50 cm)
Exposure Control
ISO Sensitivity Auto, 125-12800 (Extended Mode: Auto, 125-25600)
Shutter Type: Electronic & Mechanical
Speed: 1 - 1/2000 second in  Auto Mode
Type: Electronic & Mechanical
Speed: 15 - 1/2000 second in  Shutter Priority Mode
Type: Electronic & Mechanical
Speed: 30 - 1/2000 second in  Manual Mode
Exposure Metering Center-weighted, Evaluative, Spot
Exposure Modes Modes: AE Lock, Aperture Priority, Manual, Program Shift, Safety Shift, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV steps)
White Balance Modes Auto, Cloudy, Custom 1, Custom 2, Daylight, Flash, Fluorescent, Fluorescent H, Shade, Tungsten
Continuous Shooting Up to 5.9 fps at 20 MP frames
Self Timer 2 Sec, 10 Sec
Interval Recording No
Flash
Flash Modes Auto
Flash On
Off
Slow Sync
Built-in Flash Yes
Maximum Effective Flash Range Wide: 1.97 - 22.31' (0.6 - 6.8 m)
Telephoto: 2.79 - 10.17' (0.85 - 3.1 m)
External Flash Connection Hot Shoe
Memory
Built-in Memory None
Memory Card Type SD
SDHC
SDXC
Recording
Video Recording Yes, NTSC/PAL
Resolution 1920 x 1080p: 60 fps, 30 fps, 24 fps
1280 x 720p: 30 fps
640 x 480p: 30 fps
Video
Video Clip Length Up to 29 Minutes 59 Seconds
Audio Recording Built-in Mic: With Video, Stereo
Viewfinder/Display
Viewfinder Type None
Screen 3.2" LCD Touchscreen Tilt (1,620,000 pixels)
Screen Coverage 100%
Connectivity/System Requirements
Connectivity 1/8" Headphone, 1/8" Microphone, AV Output, USB 2.0
Wi-Fi Yes
GPS None
Environmental
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90%
Waterproofing None
Power
Battery 1x NB-10L Rechargeable Lithium-Ion Battery Pack, 7.4 VDC, 920 mAh
AC Power Adapter ACK-DC80 (Optional)
Physical
Dimensions (WxHxD) 4.9 x 3.0 x 4.1" / 12.4 x 7.6 x 10.4 cm
Weight 25.9 oz / 734 g
Packaging Info
Package Weight 2.95 lb
The user manual for the Canon PowerShot G3 X Digital Camera can be downloaded in .pdf format if it did not come with your new , although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon s, where you can use our link to download the user manual for the Canon PowerShot G3 X Digital Camera.

The user manual lists all of the functions of the Canon PowerShot G3 X Digital Camera, all the basic and advanced features and tells you how to use the . The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon PowerShot G3 X Digital Camera. User manuals are also available on the Canon website under .
