User manual Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009

Operating instructions and pdf manual for use - Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009 User manual, User manual Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009, Canon, REALiS, WUX6010D, 6000-Lumen, WUXGA, DICOM, LCoS,


User manual for Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009

Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009 Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009

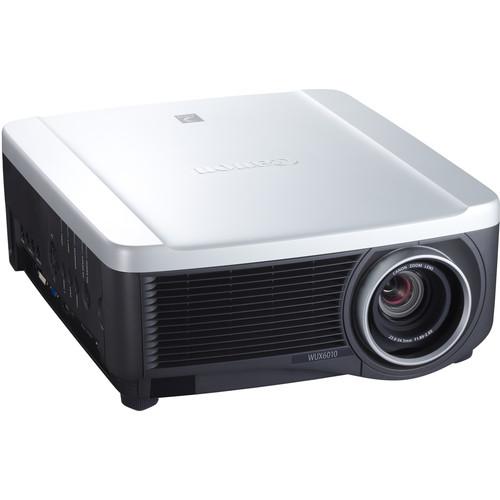

Click to enlarge image

We recommend checking out our discussion threads on the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009, which address similar problems with connecting and setting up Multimedia Projectors Canon.



User manual for the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009

The user manual for the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Project in nearly any setting with the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS Projector. Its 6000-lumen brightness can overcome most ambient light, and the 2000:1 contrast ratio helps enhance detail. Its 1920 x 1200 resolution add to its image clarity, particularly for those sitting near the screen. The projector features a DICOM Simulation Mode, allowing it to simulate the results of DICOM devices for training purposes.

The WUX6010D has DVI-I, HDMI, VGA, and HDBaseT video inputs, along with an analog audio input and output for connecting to an external speaker system. If separate speakers aren't an option, the projector has a 5W speaker built in. It uses interchangeable lenses, which are all sold separately, to offer a wide variety of throw distances and image sizes. It can be controlled via Ethernet, RS-232, the included IR remote, or third party programs such as Crestron, AMX, or PJLink. In addition to the IR remote, a VGA cable is also included for instant connectivity.
If you own a Canon multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009:
Specifications
Image Display
Display System 3-Chip 0.71" / 1.80 cm LCoS
Native Resolution WUXGA - 1920 x 1200
Supported Resolutions WUXGA
UXGA
WSXGA+
SXGA+
WXGA+
FWXGA
WXGA
SXGA
XGA
SVGA
VGA
Format NTSC
PAL
SECAM
HDTV Compatibility 1080p
1080i
720p
576p
576i
480p
480i
Pixels 2,304,000
Brightness Normal Mode: 6000 Lumens
Eco Mode: 4660 Lumens
Uniformity 88%
Aspect Ratio Native: 16:10
Contrast Ratio 2000:1
Scan Horizontal: 27 - 75 kHz
Vertical: 24 - 60 Hz
Features
Keystone Correction Digital: Yes, Vertical: ± 20°
Digital: Yes, Horizontal: ± 20°
Ceiling Mountable Yes
Built-in Speaker Yes, 5 W (Mono)
Picture Modes Cinema, Dynamic, Photo, Presentation, Standard, User 1, User 2, sRGB
Input/Output Connectors
Inputs/Outputs 1x DVI-I Video (Input)
1x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 1/8" (3.5 mm) Mini Remote (Input)
1x RS-232C Control (Input)
1x USB Type-A Female (Input)
1x Ethernet LAN (Input)
1x HDBaseT Audio/Video (Input)
General
Lamp (Bulb) 1x NSHA
Replacement Lamp RS-LP09
Watts Normal Mode: 340 W
Eco Mode: 264 W
Life Bright Mode: 3000 Hours
Whisper Mode: 4000 Hours
Fan Noise Bright Mode: 40 dB
Eco Mode: 36 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 465 W
Eco Mode: 370 W
Standby Mode (Normal): 2 W
Standby Mode (Eco): 0.3 W
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 85%
Storage
-22 to 140°F (-30 to 60°C)
Dimensions (WxHxD) 14.9 x 6.6 x 16.9" / 37.8 x 16.8 x 42.9 cm Including protrusions
Weight 18.73 lb / 8.50 kg
The user manual for the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon multimedia projectorss, where you can use our link to download the user manual for the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009.

The user manual lists all of the functions of the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS 0867C009. User manuals are also available on the Canon website under A/V Presentation - Projectors - Multimedia Projectors.
