User manual Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)

Operating instructions and pdf manual for use - Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) User manual, User manual Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D), Canon, T5,


User manual for Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

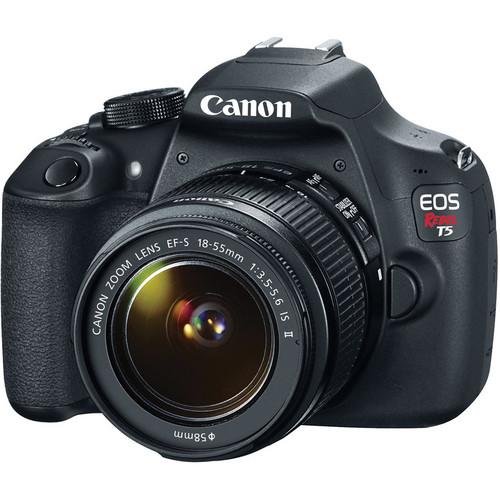

Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)
Click to enlarge image

We recommend checking out our discussion threads on the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D), which address similar problems with connecting and setting up DSLR Cameras Canon.



User manual for the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)

The user manual for the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

The Canon EOS Rebel T5 DSLR Camera with 18-55mm Lens is an 18MP APS-C format DSLR camera with a DIGIC 4 image processor. It is paired with the EF-S 18-55mm f/3.5-5.6 IS II lens, giving you a range of wide-angle to short telephoto focal lengths.

The combination of the T5's CMOS sensor and DIGIC 4 image processor provide high clarity, a wide tonal range, and natural color reproduction. With an ISO range of 100-6400 (expandable to 12800), you can shoot in low-light situations, reducing the need for a tripod or a flash. The nine-point autofocus system includes one center cross-type AF point to deliver accurate focus in both landscape and portrait orientations.

You can capture Full HD 1080p video by way of the T5's dedicated Live View/Movie Recording button, at 30, 25, or 24 fps. Additionally, the camera can also record HD video in 720p at 60 and 50 fps, and 480p at 30 and 35 fps.

The 3" rear LCD screen has 460,000 pixels, and a 170° viewing angle, making it ideal for menu navigation, composing in Live View, and reviewing or sharing your photos and videos.

The Rebel T5 is compatible with the full line of Canon EF and EF-S lenses, and is paired here with the EF-S 18-55mm f/3.5-5.6 IS II lens. This lens offers wide-angle to standard focal lengths, with a 35mm equivalency of 29-88mm. It is a versatile lens that can focus as close as 9.8".

The lens features Canon's Optical Image Stabilization technology, which provides up to four stops of compensation for image blur caused by camera shake and slow shutter speeds. This helps to get clear, crisp images, even in low light situations. Aberrations are minimized thanks to an aspherical lens element, and a circular aperture renders pleasing out-of-focus areas.
If you own a Canon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)Download user manual for Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D)
(PDF file, 6.72 MB)
Additional parameters of the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D):
Specifications
    Imaging
    Lens Mount Canon EF
    Canon EF-S
    Camera Format APS-C (1.6x Crop Factor)
    Pixels Actual: 18.7 Megapixel
    Effective: 18.0 Megapixel
    Max Resolution 17.9 MP: 5184 x 3456
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 22.3 x 14.9 mm
    File Formats Still Images: JPEG, RAW
    Movies: H.264, MOV
    Audio: Linear PCM
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Automatic (A), Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points 9, 1 cross-type
    Viewfinder/Display
    Viewfinder Type Pentamirror
    Viewfinder Eye Point 21.00 mm
    Viewfinder Coverage 95%
    Viewfinder Magnification Approx. 0.8x
    Diopter Adjustment - 2.5 to +0.5 m
    Display Screen 3" Rear Screen  Live Preview LCD (460,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity 100-6400 (Extended Mode: 100-12800)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second
    Mirror Lock-Up No
    Metering Method Center-weighted average metering, Evaluative metering, Partial Metering
    Exposure Modes Modes: Aperture Priority, Bulb, Manual, Program, Shutter Priority
    Metering Range: EV 1.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
    Flash
    Flash Modes FE Lock
    Hi-Speed Sync
    Off
    Red-eye Reduction
    TTL Auto
    Built-in Flash Yes
    Guide No. 30.2' (9.2 m) ISO100
    Flash Compensation -2 EV to +2 EV (in 1/3 or 1/2 EV steps)
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 480p (SD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps
    @ 640 x 480: 30 fps, 25 fps
    Exposure Control Auto: Shutter Speed, Aperture, ISO
    Manual: Shutter Speed, Aperture, ISO
    Exposure Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Focus Auto
    Manual
    Video Clip Length 1920 x 1080
    29 min. 59 seconds
    1280 x 720
    29 min. 59 seconds
    640 x 480
    29 min. 59 seconds
    Performance
    Continuous Shooting Up to 3 fps
    Start-up Time 0.1 seconds
    Shutter Lag 0.12 seconds
    Self Timer 10 seconds, 2 seconds
    Number of Shots: 1-10
    Connectivity HDMI C (Mini), Mini-USB, Wired Remote Port
    Wi-Fi Capable No
    Software System Requirements Not Specified By Manufacturer
    Power
    Battery 1x LP-E10 Rechargeable Lithium-ion Battery Pack
    AC Power Adapter ACK-E10 (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 0 - 85%
    Physical
    Dimensions (WxHxD) 5.1 x 3.9 x 3.1" / 13.0 x 9.9 x 7.9 cm Approximately
    Weight 15.3 oz / 434 g Body Only
    Kit Lens
    Focal Length 18 - 55mm
    Comparable 35mm Focal Length: 29 - 88 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 38
    Angle of View 74° 20' - 27° 50'
    Minimum Focus Distance 9.8" (24.89 cm)
    Magnification 0.34x
    Maximum Reproduction Ratio 1:3
    Elements/Groups 11/9
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front:58 mm
    Dimensions (DxL) Approx. 2.7 x 2.8" (6.86 x 7.11 cm)
    Weight 7.1 oz (201 g)
    Packaging Info
    Package Weight 3.25 lb
    Box Dimensions (LxWxH) 8.8 x 6.7 x 5.5"
    Canon EOS T5 Demo
    The user manual for the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D) can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon dslr camerass, where you can use our link to download the user manual for the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D).

    The user manual lists all of the functions of the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D), all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon T5 EOS Rebel DSLR Camera with EF-S 18-55mm IS II 9126B003 (AKA Canon 1200D). User manuals are also available on the Canon website under Photography - Digital Cameras - DSLR Cameras.
