User manual Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001

Operating instructions and pdf manual for use - Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001 User manual, User manual Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001, Canon, VB-H610D, Full, HD, Fixed, Dome, IP, Securi

User manual for Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001

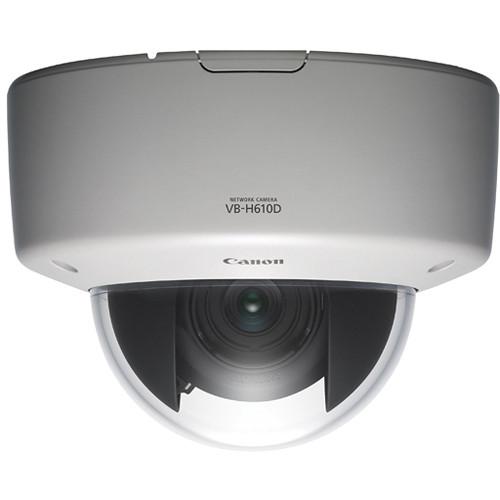

Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 919 USD
We recommend checking out our discussion threads on the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001, which address similar problems with connecting and setting up Wired IP Cameras Canon.


User manual for the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001

The user manual for the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Canon VB-H610D Full HD Fixed Dome IP Security Camera features a built-in Genuine Canon wide-angle 3x optical zoom lens that offers an ultra-wide 111° angle of view. This Full HD Dome IP Security Camera is ideal for use in areas with space restrictions such as stairways, narrow halls, and elevators. Integrating an advanced 16:9 CMOS sensor, DiG!C DV III image processor, and the Canon DiG!C NET II network video processor for full 1920 x 1080 HD up to 30 fps in both H.264 and M-JPEG. ONVIF (Open Network Video Interface Forum) Profile S conformance ensures compatibility with other ONVIF-compliant third-party products. A unique remote adjustment function enables users to change the angle of view (including pan, tilt, rotation, zoom, and focus) of the camera from any Internet-connected PC, thereby eliminating the time and expense of on-site adjustments involving labor, transportation, and equipment. This VB-H610D camera is also equipped with on-board video analytics including Moving Object Detection, Removed Object Detection, Abandoned Object Detection, Camera Tampering Detection, Volume Level Detection as well as Passing (or tripwire) Detection.
If you own a Canon wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001:

Go To

Camera
Image Sensor 1/3" type CMOS (primary color filter)
Number of Effective Pixels Approximately 2.1p
Scanning Method Progressive
Lens 3x optical (4x digital) zoom lens (electric drive)
Focal Length Wide: 2.8
Tele: 8.4mm
Focal Ratio Wide: F1.2
Tele: F2.0
Viewing Angle Horizontal: Wide 111°
Tele: 36.5°
Vertical: Wide: 60.1°
Tele: 20.5°
Day/Night Switching Auto/Manual
Minimum Subject Illumination Day Mode (Color): 0.3 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
0.02 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)
0.008 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)
Night Mode (Monochrome): 0.015 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)
0.0005 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)
Focus One-shot AF/Manual/Fixed at infinity
Shooting Distance Range Day Mode: 0.3 m (0.98') to ∞
Night Mode: 1 m (3.28') to ∞
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/16,000 sec
Exposure Auto / Auto (Flickerless) / Auto (Shutter-priority AE) / Manual (Shutter Speed, Aperture, Gain)
White Balance Auto / Light Source (Daylight Fluorescent / White Fluorescent / Warm Fluorescent / Mercury Lamp/Sodium Lamp / Halogen Lamp) / Lock (One-shot WB) / Manual
Metering Modes Center-Weighted/Average/Spot
Exposure Compensation 9 levels
Smart Shade Control 7 levels (increases the brightness of shaded subjects in a video)
AGC (Automatic Gain Control) 5 levels
Pan Angle 350° (±175°)
Tilt Angle 150° (±75°)
Rotational Angle Range 350° (±175°)
Moving Speed Pan: 19.2°/sec, Tilt: 14.2°/sec, Rotation: 43.7°/sec

When the camera angle setting tool is used
Video Compression M-JPEG & H.264
Video File Size M-JPEG: 1920 x 1080, 960 x 540, 480 x 270, 320 x 240
H.264: 1920 x 1080, 960 x 540, 480 x 270
Video Quality M-JPEG, H.264: 5 levels
Frame Rate M-JPEG: 0.1 to 30 fps
H.264: 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 fps
Maximum Frame Rate 1920 x 1080: 30 fps
I-Frame Interval 0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 sec
Simultaneous Client Access Maximum 30 clients, 1 admin client
H.264: Maximum 10 clients
Server
Camera Control Administrator, Authorized user, Guest user (level of control varies depending on user) Maximum 50 user names and passwords registered for authorized users.
Access Control User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
Encrypted Communications SSL/TLS, IPsec (Auto Key Exchange/Manual)
Protocol IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client),ARP, ICMP, POP3, NTP, SMTP authentication, WV-HTTP (Canon proprietary), ONVIF
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, WV-HTTP (Canon proprietary), ONVIF
Audio Compression G.711 μ-law (64 Kbps)
Audio Communication Full-duplex (2-way)
Echo cancellation function compliant Sound Transfer Protocol by Canon
Audio File Playback: Available (Audio files can be played back when an event is triggered by the intelligent function or external device input.)
Privacy Masking Number of Registrations: Maximum 8 places, Number of Mask Colors: 1 (select from 9 colors)
Preset Maximum 20 positions (Digital) (Preset Tour capable)
Video Detection Types: Moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection
Detection Functions Maximum 15
Volume Volume Detection
Event Trigger Type External Device Input, Intelligent Function (Video), Intelligent Function (Volume), Timer
Image Upload FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Approximately 5 MB, Frame Rate: Maximum 10 fps
Event Notification HTTP / SMTP (e-mail)
Image Crop Digital PTZ Cropping sizes: 640 x 360, 512 x 288, 384 x 216, 256 x 144, 128 x 72
Interface
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto / full-duplex / half-duplex)
Audio Input Terminals Input: 1 mini-jack connector (Mono), LINE IN or MIC IN
Output: 1 mini-jack connector (Mono), LINE OUT
External Device I/O Terminals Input x 2, Output x 2
Memory Card SD, SDHC, SDXC Memory Card Compatible
Frame Rate: Maximum 1 fps
Power Supply
PoE PoE power supply via LAN connector (IEEE802.3af compliant)
External Power 24 VAC / 12 VDC
Power Consumption PoE: 7.8 W maximum (approximately)
DC: 8.3 W maximum (approximately)
PA-V17 AC Adapter: 10.2 W maximum (approximately)
AC: 7.5 W maximum (approximately)
Environmental
Operating Temperature 14 to 122°F (-10 to 50°C)
Operating Humidity 5 to 85% (without condensation)
Dimensions (HxD) 5.51 x 7.32" (140 x 186 mm)
Weight 2.65 lb (1.20 kg)
The user manual for the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon wired ip camerass, where you can use our link to download the user manual for the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001.

The user manual lists all of the functions of the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon VB-H610D Full HD Fixed Dome IP Security Camera 6814B001. User manuals are also available on the Canon website under Surveillance - Surveillance Video - Wired IP Cameras.
