User manual Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001

Operating instructions and pdf manual for use - Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001 User manual, User manual Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001, Canon, VIXIA, HF, R700, Full, HD, Camcorder, Black, 1238C001,


User manual for Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001

Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD

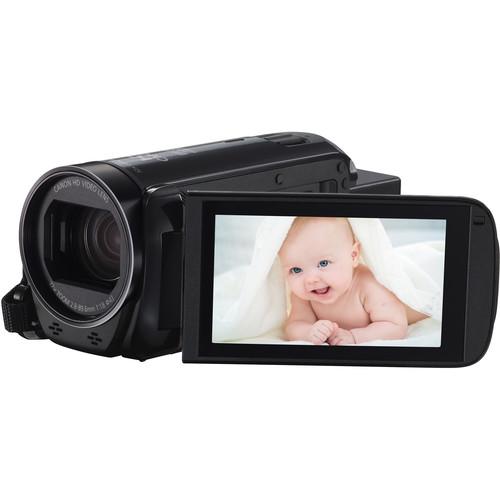

Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001 Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001
Click to enlarge image

We recommend checking out our discussion threads on the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001, which address similar problems with connecting and setting up Consumer Camcorders Canon.



User manual for the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001

The user manual for the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001 provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

Whether up close or far away, the black Canon VIXIA HF R700 lets you capture sharp and steady Full HD video by combining a 57x Advanced Zoom range and SuperRange Optical Image Stabilizer. It features a 3.28MP CMOS image sensor and a DIGIC DV 4 Image Processor that delivers up to 1080/60p video. Video is recorded to SD/SDHC/SDXC memory cards in either MP4 (up to 35 Mbps) or AVCHD (up to 28 Mbps) formats. A 3" capacitive LCD touch panel is provided for easy framing, quick playback, and intuitive operation. Designed with all levels of users in mind, the HF R700 has a wide range of features to automatically adjust image stabilization, zoom magnification, and image control settings to help you get the best possible images. Highlight Priority mode allows you to capture a more natural looking image, and the camera supports fast and slow motion recording. A high-capacity battery is included for longer shooting times.
If you own a Canon consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001:
Specifications
Camera
Sensor 3.28 Megapixel 1/4.85"  CMOS
Color Filter RGB
Pixel Gross 3,280,000
Effective Pixels 2,073,600 Video
2,073,600 Photo
Optics
Focal Length 2.8 - 89.6 mm
35mm Equivalent Focal Length 38.5 - 1232 Optical Zoom / Advanced Zoom Off
32.5 - 1853 Advanced Zoom On
Maximum Aperture f/ 1.8 - f/ 4.5
Focusing Distance 0.4" / 1.0 cm
Zoom Optical: 32x
Advanced (Optical): 57x
Digital: 1140x
Recording
System NTSC
Recording Media SD/SDHC/SDXC
Recording Time SD/SDHC/SDXC 32 GB
1920 x 1080 150 min, 60p, AVCHD
1920 x 1080 175 min, MXP, AVCHD
1920 x 1080 250 min, FXP, AVCHD
1440 x 1080 735 min, LP, AVCHD
SD/SDHC/SDXC 32 GB
1920 x 1080 120 min, 35 Mb/s, MP4
1920 x 1080 175 min, 24 Mb/s, Mp4
1920 x 1080 250 min, 17 Mb/s, MP4
1280 x 720 1,050 min, 4 Mb/s, MP4
Video Format High Definition
AVCHD Progressive
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
1920 x 1080p / 30 fps (24 Mbps)
High Definition
AVCHD Progressive
1440 x 1080p / 60 fps (5 Mbps)
High Definition
MP4
1920 x 1080p / 60 fps (35 Mbps)
1920 x 1080p / 30 fps (24 Mbps)
1920 x 1080p / 24 fps (17 Mbps)
High Definition
MP4
1280 x 720p (4 Mbps)
Channels 2.0-Channel Stereo
Audio Format AAC-LC
Dolby Digital AC3
Sampling Frequency Dolby 2ch: 48.0 kHz
AAC: 48.0 kHz
Display
Display Type LCD
Touchscreen Yes
Screen Size 3"
Pixel Count 230,000
Features
Image Stabilization Optical & Digital
Scene Modes Preset: Yes
Lux 5 (P mode)
.4 (Low Light Mode)
Creative Effects Yes
Built-in Mic Yes
Built-in Speaker Yes
Built-in Light/Flash Light - No
Flash - No
Wi-Fi None
Accessory Shoe None
Tripod Mount 1/4" - 20
Input/Output Connectors
Inputs 1x 1/8" (3.5 mm) Stereo Input (Jack) microphone
Outputs 1x HDMI C (Mini)
1x USB 2.0 Mini-AB
1x A/V 3.5mm mini-jack/Headphone terminal
Microphone Input Yes
Headphone Jack Yes
General
Battery Rechargeable Lithium-Ion Battery Pack Batteries, 3.6 VDC, 1840 mAh
Charging Method AC Adapter
Operating Temperature 23 - 113°F (-5 - 45°C) 60% Relative Humidity
32 - 104°F (0 - 40°C) 85% Relative Humidity
Dimensions (WxHxD) 2.1 x 2.3 x 4.6" / 53.0 x 58.0 x 116.0 mm without grip belt
Weight 8.29 oz / 235 g without grip belt
10.76 oz / 305 g including BP-727 battery, memory card, grip belt
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 6.9 x 5.5 x 5.1"
The user manual for the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001 can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon consumer camcorderss, where you can use our link to download the user manual for the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001.

The user manual lists all of the functions of the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon VIXIA HF R700 Full HD Camcorder (Black) 1238C001. User manuals are also available on the Canon website under Camcorders - Consumer Camcorders.
