User manual for the Canon VIXIA mini X Full HD Camcorder 9114B002
The user manual for the Canon VIXIA mini X Full HD Camcorder 9114B002 provides
necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

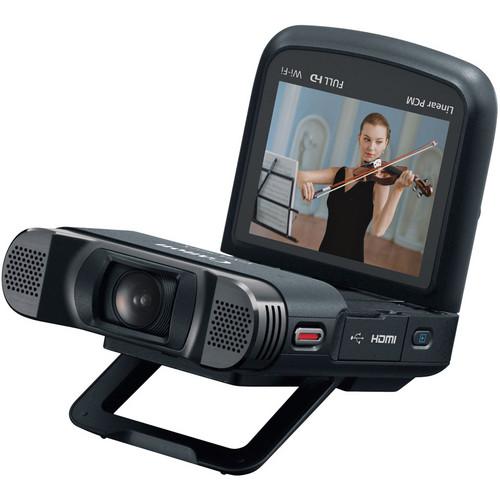

The Canon VIXIA mini X Full HD Camcorder is designed for users looking to share their videos and photos using social media. The mini X features a Canon f/2.8 fisheye lens with a 160° viewing angle for capturing MP4 video, a 150° viewing angle when shooting in AVCHD format, and a 170° viewing angle for photos. You can also choose between a Wide or Close-Up shooting mode. The mini X has a 12.8MP High-Sensitivity CMOS image sensor and a DIGIC DV 4 image processor for capturing Full HD 1920 x 1080p video and up to 12MP photos.
If you own a Canon consumer camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon VIXIA mini X Full HD Camcorder 9114B002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon VIXIA mini X Full HD Camcorder 9114B002:
| Sensor || 12.8 Megapixel 1/2.3" CMOS |
| Pixel Gross || 12.8 |
| Effective Pixels || AVCHD |
8.29 Video (Wide Mode)
2.07 Video (Close-Up Mode, Image Stabilizer Off)
1.33 Video (Close-Up Mode, Image Stabilizer On)
8.99 Video (Wide Mode)
2.07 Video (Close-Up Mode, Image Stabilizer Off, Image Stabilizer On)
12 Photo (Wide Mode)
2.76 Photo (Close-Up Mode)
| Focal Length || Not Specified By Manufacturer |
| 35mm Equivalent Focal Length || 17.5 Video Wide Mode (AVCHD) |
16.8 Video Wide Mode (MP4)
15.4 Photo Wide Mode
35 Video Close-Up Mode (AVCHD) with IS Off
43.7 Video Close-Up Mode (AVCHD) with IS On
35 Video Close-Up Mode (MP4)
32.1 Photo Close-Up Mode
| Maximum Aperture || f/ 2.8 |
| Focusing Distance || 15.8" / 40.0 cm - Infinity |
| Angle of View || 150° (AVCHD Recording) |
160° (MP4 Recording)
170° (Still Images)
| System || NTSC |
| Recording Media || SD/SDHC/SDXC |
| Recording Time || SD/SDHC/SDXC 32 GB |
1920 x 1080 AVCHD (24 Mbps): 2.92 hours
1920 x 1080 AVCHD (17 Mbps): 4.17 hours
1920 x 1080 MP4 (24 Mbps): 2.92 hours
1920 x 1080 MP4 (17 Mbps): 4.17 hours
1280 x 720 MP4 (4 Mbps): 17.33 hours
640 x 360 MP4 (3 Mbps): 22.92 hours
| Video Format || High Definition |
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
1920 x 1080p / 30 fps (24 Mbps)
1920 x 1080p / 24 fps (17 Mbps)
1280 x 720p / 30 fps (4 Mbps)
1280 x 720p / 24 fps (4 Mbps)
640 x 360p / 30 fps (3 Mbps)
| Slow Motion Mode || 30 fps recorded @ 360 x 30p |
| Still Image Resolution || JPEG: 12 Megapixel |
| Channels || 2.0-Channel Stereo |
| Audio Format || LPCM |
| Sampling Frequency || LPCM: 48.0 kHz |
| Bit Rate || LPCM: 16.0-bit |
| Display Type || LCD |
| Touchscreen || Yes |
| Screen Size || 2.7" |
| Pixel Count || 230,000 |
| Aspect Ratio || 4:3 |
| Shutter Speed || 1/12-1/2000 sec |
| Interval Recording || 5 sec |
| Image Stabilization || Digital |
| Scene Modes || Preset: Yes |
| Lux || 10 (NTSC, P Mode, 1/30 sec shutter speed) |
| White Balance Modes || Auto |
| Creative Effects || Yes |
| Built-in Mic || Yes |
| Built-in Speaker || Yes |
| Built-in Light/Flash || Light - No |
Flash - No
| Wi-Fi || Yes |
| Accessory Shoe || None |
| Tripod Mount || 1/4" |
| Outputs || 1x HDMI C (Mini) |
1x A/V Mini Terminal
1x USB 2.0
| Microphone Input || Yes |
| Headphone Jack || Yes |
| Battery || Rechargeable Lithium-Ion Battery Pack, 1910 mAh, |
Providing up to 2.5 Hours per Charge
| Charging Method || AC Adapter |
| Power Consumption || Recording:2.7 W |
| Operating Temperature || 23 - 113°F (-5 - 45°C) 60% Relative Humidity |
32 - 104°F (0 - 40°C) 85% Relative Humidity
| Dimensions (WxHxD) || 3.2 x 1.2 x 4.3" / 82.0 x 30.0 x 109.0 mm |
| Weight || 7.23 oz / 205 g body only |
8.47 oz / 240 g including NB-12L battery pack and SD card
| Package Weight || 1.25 lb |
| Box Dimensions (LxWxH) || 6.9 x 5.5 x 4.4" |
The user manual for the Canon VIXIA mini X Full HD Camcorder 9114B002 can be downloaded in .pdf
format if it did not come with your new consumer camcorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon consumer camcorderss,
where you can use our link to download the user manual for the Canon VIXIA mini X Full HD Camcorder 9114B002.
The user manual lists all of the functions of the Canon VIXIA mini X Full HD Camcorder 9114B002,
all the basic and advanced features and tells you how to use the consumer camcorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Canon VIXIA mini X Full HD Camcorder 9114B002. User manuals are also
available on the Canon website under Camcorders - Consumer Camcorders.
