User manual for the Canon XA10 HD Professional Camcorder 4922B002
The user manual for the Canon XA10 HD Professional Camcorder 4922B002 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

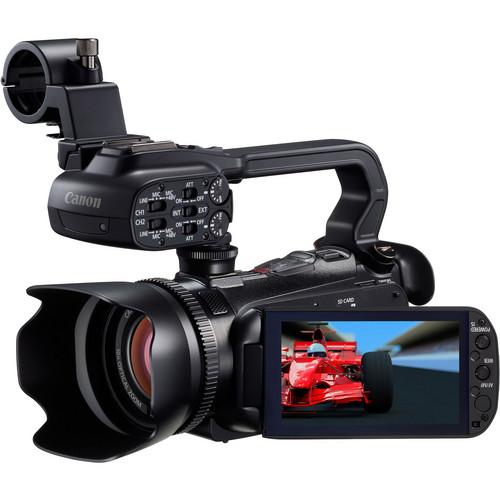

The Canon XA10 HD Professional Camcorder is a fully featured, ultra-compact pro video camera that shares nearly all the functionality of the XF100, but in an even smaller, run-and-gun form factor. Sporting a 64GB internal flash drive and two SDXC-compatible card slots, the XA10 can record literally for days without running out of memory. Able to capture AVCHD video at bitrates up to 24Mbps, the camcorder's native 1920 x 1080 CMOS sensor also lets you choose 60i, 24p, PF30, and PF24 frame rates for customizing the look of your footage. Bringing further professional oomph to that footage is a Genuine Canon 10x HD video lens, with lowlight sensitivity and a 35mm equivalent zoom range of 30.4mm-304mm. The lens features a 58mm front filter thread.
Like the larger XF100, the XA10 also provides full image customization, cinema looks, infrared recording (for night shooting), and HDMI/component/composite output. Other professional features include dual XLR inputs, relay recording, waveform, color peaking, and zebra patterns. But the camera has a few extra tricks up its sleeve, including a detachable handle to allow for truly low-profile shooting, and a 3.5" Touch Panel LCD that adds the extremely useful Touch & Track, Touch Focus and Touch Exposure functions, which make pulling focus and adjusting exposure dramatically easier. Combined with its other focus, exposure, and composition aids, this makes the XA10 an ideal blend of portability and professional control--the perfect tool for nearly any on-the-go production.
|
If you own a Canon camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon XA10 HD Professional Camcorder 4922B002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon XA10 HD Professional Camcorder 4922B002:
| Image Device | 1/3" CMOS Sensor
Native 1920 x 1080 | | Lens | Zoom Ratio: 10x Optical & 40x/200x Digital (Movie) Focal Length: 4.25 - 42.5mm (35mm equivalent 30.4 - 305mm) Zoom Speed: Variable Zoom Speed Constant: Fast, Normal, Slow (16 steps in each mode) Max F/Stop: f/1.8 - 2.8 | | Horizontal Resolution | Not specified by manufacturer | | Focusing System | TVAF plus External Phase Difference Metering Sensor
Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual | | Minimum Illumination | Not specified by manufacturer | | Built-in Filters | Not specified by manufacturer | | Filter Thread | 58 mm | | Minimum Focus Distance | 20mm (0.78") - wide macro, 60cm (1.97') - entire zoom range | | Video Recording System | Compression: AVCHD
Color Space: 4:2:0 (at 24Mbps recording) Recording Modes:
MXP - 24Mbps
FXP - 17Mbps
XP+ - 12Mbps
SP - 7Mbps
LP - 5Mbps | | Audio Recording Format | 2-Channel, PCM digital recording, 16-Bit; 48kHz | | Frame Rates | 60i, PF30, PF24, 24p (native) | | Image Stabilization | Dynamic SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off | | LCD Monitor | 3.5" Touch Panel Screen, approx. 922,000 dots | | Viewfinder | 0.24" Color, approx. 260,000 dots (100% FOV, adjustable brightness, color, contrast) | | Microphone | Option | | Memory Card Slot | SD Card: 2 Slots | | Shutter Speed | Not specified by manufacturer | | White Balance | Auto, Custom (2000K - 15000K in 100K increments), Daylight, Shade, Cloudy, Tungsten, Fluorescent H, Fluorescent, 2x Manual presets | | Gain Selection | 0dB - 24dB (in 1dB increments)
AGC (w/maximum gain limit) | | Maximum Recording Time | 64GB Internal Flash Drive
(Greater capacity is possible when SD cards are used.)
24Mbps: 5 hours 55 minutes
17Mbps: 8 hours 20 minutes
12Mbps: 11 hours 30 minutes
7Mbps: 19 hours 10 minutes
5Mbps: 24 hours 30 minutes Class 4 or higher SDHC or SDXC card required for 24Mbps and 17Mbps modes. | | Input and Output Connectors | Component (x1 Output)
Composite: 3.5mm A/V (x1 Output)
HDMI: Mini Type C (x1 Output)
Mic/Line: XLR 3-pin (x2 Input)
Stereo Mic: 3.5mm Mini Jack (x1 Input)
USB: Mini-B USB 2.0
Headphone: 3.5mm Mini
Remote Control Terminal: LANC | | Power Requirements | 7.4VDC (Battery Pack) | | Power Consumption | Not specified by manufacturer | | Operating Temperature | 32-104°F (0-40°C), 85% relative humidity | | Dimensions (WxHxD) | 5.1 x 7 x 8" (13 x 17.8 x 20.3 cm) | | Weight | 1.71 lbs (0.78kg) - not including battery, memory card, lens hood, mic holder | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 10.6 x 9.6 x 7.5" | |
