User manual Canon XF200 HD Camcorder 9593B002

Operating instructions and pdf manual for use - Canon XF200 HD Camcorder 9593B002 User manual, User manual Canon XF200 HD Camcorder 9593B002, Canon, XF200, HD, Camcorder, 9593B002, Video


User manual for Canon XF200 HD Camcorder 9593B002

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Canon  XF200 HD Camcorder 9593B002
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Professional Video - Professional Camcorders - Camcorders
  • Safety instructions
  • Startup and operation of the camcorders
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Canon XF200 HD Camcorder 9593B002, which address similar problems with connecting and setting up Camcorders Canon.



User manual for the Canon XF200 HD Camcorder 9593B002

The user manual for the Canon XF200 HD Camcorder 9593B002 provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

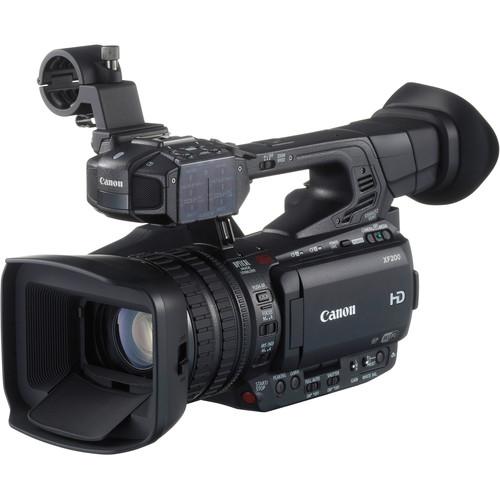

The Canon XF200 HD Camcorder is a compact, ergonomically friendly camera that is suitable for traditional multi-camera productions as well as ENG/event style coverage, independent and documentary filmmaking. The camera features a 1/2.84" CMOS sensor that captures 1920 x 1080 video at various frame rates up to 59.94p, including a 24p mode for a more cinematic feel. The integrated Canon 20x HD Optical zoom lens has a 35mm equivalent zoom range of 26.8 to 576mm and features an 8-bladed iris to render highlights in a more natural manner. Individual gear rings for focus, zoom, and iris on the lens itself provide you a natural way to make manual adjustments.

The camera records MPEG-2 at frame rates of 23.98/29.97p and 59.94i at up to 50Mbps, with 4:2:2 color sampling, to integrated CF card slots using an MXF wrapper that is compatible with most popular NLE systems. You can also record to an integrated SDXC card slot using the MP4 codec at frame rates up to 59.94P. The XF200 features 4-channels of audio with manual/automatic record levels with two XLR inputs and a built-in on camera microphone. The built-in hand grip features 120° of rotation, making it easier to find a comfortable shooting position.

Built-in dual-band WiFi allows you to control the cameras functions from available mobile devices as well as view footage from the camera on the devices. Proxy files can be transferred via WiFi while you are shooting new footage. The camera also incorporates an Ethernet connection, so you can transfer files directly from the camera. An HDMI output provides you with video out.
If you own a Canon camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon XF200 HD Camcorder 9593B002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Canon  XF200 HD Camcorder 9593B002Download user manual for Canon XF200 HD Camcorder 9593B002
(PDF file, 12.84 MB)
Additional parameters of the Canon XF200 HD Camcorder 9593B002:
Sensor 1/2.84" CMOS Sensor
Resolution: 1920 x 1080
Total Pixels: 3.09 Mp
Effective Pixels: 2.91 Mp
RGB Primary Color Filter
Compatible with NTSC
Lens Zoom Range: 20x Optical
35mm Equivalent: 26.8 to 576mm (28.8 to 576mm with Dynamic IS)
OLED Viewscreen Pixel Count: Approximately 1.5MP
Viewfinder 0.45" Color EVF
Pixel Count: Approximately 1.5MP
Media Card Slots 2 x Compact Flash
1 x SDXC
Video Recording System Compression: 8 Bit MPEG-2 Long GOP
Color Space: 4:2:2
File Format: MXF and MP4

Recording Modes:
50Mbps MXF (CBR) 4:2:2: 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p)
35Mbps MXF (VBR) 4:2:0: 1920x1080 (60i/30p/24p), 1440x1080 (60i), 1280x720 (60p/30p/24p)
25Mbps MXF (CBR) 4:2:0: 1440x1080 (60i/30p/24p)
35Mbps MP4: 1920x1080 (60p)
24Mbps MP4: 1920x1080 (30p/24p)
17Mbps MP4: 1280x720 (60p)
9Mbps MP4: 1280x720 (30p/24p)
3Mbps MP4: 640x360 (30p/24p)
Codec / Format Support MPEG2
1080i 59.94i
1080p 23.98/29.97

MP4
1080p 23.98/29.97/59.94
Audio 2/4-Channel, Linear PCM, 16-Bit, 48 kHz (MXF)
Inputs/Outputs Input
Audio: 2 x XLR 3-pin female, 1 x 3.5mm mini jack

Output
HDMI: 1 x HDMI connector<
Packaging Info
Package Weight 9.15 lb
Box Dimensions (LxWxH) 13.7 x 10.2 x 8.8"
The user manual for the Canon XF200 HD Camcorder 9593B002 can be downloaded in .pdf format if it did not come with your new camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon camcorderss, where you can use our link to download the user manual for the Canon XF200 HD Camcorder 9593B002.

The user manual lists all of the functions of the Canon XF200 HD Camcorder 9593B002, all the basic and advanced features and tells you how to use the camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon XF200 HD Camcorder 9593B002. User manuals are also available on the Canon website under Professional Video - Professional Camcorders - Camcorders.
