User manual for the Casio Casio CTK-4400 Value Bundle

The user manual for the Casio Casio CTK-4400 Value Bundle provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Portable Keyboards.

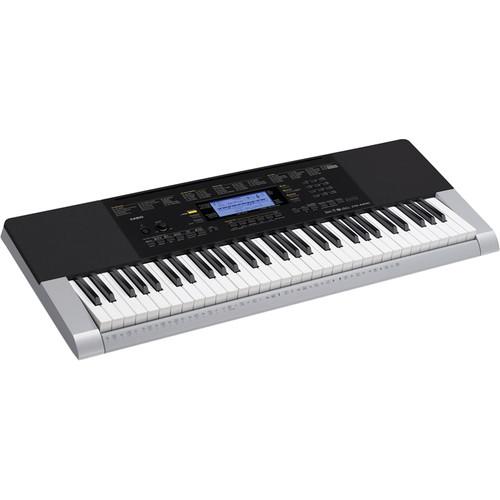

The Casio CTK-4400 Value Bundle is a B&H Kit that offers a portable keyboard with sixty-one full-size keys, Step Up Lessons for beginning keyboardists, onboard stereo speakers, 600 tones, and a fully featured auto accompaniment section which includes 180 rhythm patterns and 152 songs.

Suitable for both the absolute beginner to the more proficient player, the bundle includes a sustain pedal, an adjustable-height stand for supporting the keyboard, along with a pair of headphones for silent practice when the occasion demands it.
If you own a portable keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Casio Casio CTK-4400 Value Bundle in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Casio Casio CTK-4400 Value Bundle:
Specifications
    • Casio CTK-4400 - Digital Keyboard with EFX Sound Sampler
      Keyboard 61 Standard-sized keys
      Touch Response: 2 Types, Off
      Polyphony 48 voices maximum (24 for certain tones)
      Synthesis Method AHL
      Presets 600
      Functions: Layer, Split, Piano/Organ button
      Sampling Up to 8 Tones (Melody Sampling: 5, Drum Sampling: 3)
      Up to 10 seconds
      Auto Accompaniment Built-in Rhythms: 180
      User Rhythms: Up to 10 (accompaniment edit)
      Effects 10 Types
      Hall effect button
      Reverb: 1 to 10, Off
      Chorus: 1 to 5, Off
      Songs Built-In: 152
      User Songs: Up to 10
      Lesson Step Up Lessons: 4 (Listen, Watch, Remember, Auto)
      Lesson Part: L, R, LR
      Functions: Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation
      Music Challenge: 20 Notes
      Chord Book Chord guide
      Registration 32 (4 setups × 8 banks)
      Recorder Real-time recording, playback
      Keyboard Play: 5 songs, 6 tracks
      Playing Along with Built-in Songs: 1 song (L, R, LR)
      Memory Capacity: Approximately 12,000 notes (total for 6 songs)
      Metronome Beats per Measure: 0, 2 to 6
      Tempo Range: 30 to 255 BPM
      MIDI 16 multi-timbre received, GM Level 1 standard
      Other Functions Transpose: +/-1 octave (-12 to +12 semitones)
      Octave Shift: Upper/Lower +/-2 octaves
      Tuning: A4 = 415.5 to 465.9 Hz (initial default: 440.0 Hz)
      Preset Scales: 17
      Music Preset: 305
      One Touch Preset: 180
      Auto Harmonize: 12 types
      Arpeggiator: 90 types
      Musical Information Function: Song Bank numbers and names, staff notation, fingering, pedal operation, tempo, measure and beat number, chord name, etc.
      Inputs/Outputs Audio In: 1 x 1/8" TRS stereo mini
      Headphone: 1 x 1/4" TRS
      Sustain Pedal: 1 x 1/4" TS
      USB: 1 x USB Type B
      Electrical Characteristics Input Impedance: 9kΩ
      Input Sensitivity: 200 mV
      Output Impedance: 140Ω
      Output Voltage: 4.5V (RMS) maximum
      Display Backlit LCD
      Amplifier 2.5W + 2.5W
      Speakers 2 x 4.7" (12 cm)
      Power Requirements 100~240V AC, 50/60 Hz for included AD-E95100L 9.5V DC adapter
      6 x AA optional zinc-carbon or alkaline batteries
      Auto Power Off: Approximately 6 minutes (during battery operation) or 30 minutes (during AC adapter operation) without any operation
      Auto Power Off can be disabled
      Battery Life Approximately 3 hours continuous operation on alkaline batteries
      Dimensions (WxDxH) 37.3 x 13.75 x 4.1" (948 x 350 x 103 mm)
      Weight 9.5 lb (4.3 kg) without batteries
      Packaging Info
      Box Dimensions (LxWxH) 39.0 x 16.0 x 6.0"
    • Auray KSC-1X - Deluxe Single-X Keyboard Stand with Clutch Locking Mechanism
      Height Adjustment 22.0 to 38.5" (559 to 978 mm)
      Locking Positions 6
      Weight Capacity 175 lb (79.4 kg)
      Construction 1" welded metal tubing
      Finish Matte black
      Weight 7 lb (3.2 kg)
      Packaging Info
      Box Dimensions (LxWxH) 40.0 x 20.0 x 5.0"
    • Auray FP-S1L Universal Sustain Pedal
      Connector Right Angle 1/4" TS
      Polarity + and -
      Cable Length 72" (182.88 cm)
      Weight 0.60 lb (0.27 kg)
      Packaging Info
      Box Dimensions (LxWxH) 6.3 x 4.6 x 1.7"
    • Polsen HPC-A30 Closed-Back Studio Monitor Headphones
      Type Circumaural
      Ear Cup Closed back
      Driver 2" (50 mm)
      Impedance 32 Ω
      Sensitivity -93 dB ±3 dB (@ 1 kHz/mW)
      Maximum Power 600 mW
      Distortion < 5% @ 1 kHz
      Frequency Response 18 Hz to 22 kHz
      Cable Length 9.8' (3 m)
      Weight 6.5 oz (184 g)
      Packaging Info
      Box Dimensions (LxWxH) 8.7 x 7.4 x 3.8"
