User manual Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench

Operating instructions and pdf manual for use - Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench User manual, User manual Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench, Casio, PX-160, Privia, 88-Key, Digital, Piano, with, Sta


User manual for Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench

Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench
  • Manufacturer: Casio
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Digital Pianos
  • Safety instructions
  • Startup and operation of the digital pianos
  • Tips for setting up your Casio
  • Settings and expert assistance
  • Contact Casio service
  • Troubleshooting
  • Warranty information
  • Price: 689 USD
Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench
Click to enlarge image

We recommend checking out our discussion threads on the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench, which address similar problems with connecting and setting up Digital Pianos Casio.



User manual for the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench

The user manual for the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Digital Pianos.

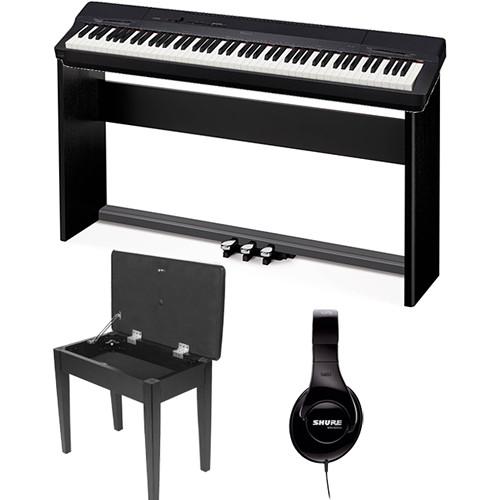

The black Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench & Accessories is a B&H Kit that comes with everything you need to get started making music. The kit includes the Casio PX-160 Privia 88-Key Digital Piano, the Casio Privia Accessory Pack with Stand & Pedal Unit, a piano bench with a storage compartment, and a pair of stereo headphones.
If you own a Casio digital pianos and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench:
Specifications
  • Casio PX-160 Privia 88-Key Digital Piano (Black)
    Keyboard Number of Keys: 88
    Key Action: Tri-sensor scaled hammer action keyboard II
    Key Surface Finish: Simulated ebony and ivory keys
    Touch Response: 3 sensitivity levels, off
    Polyphony 128 maximum
    Tones 18 built-in tones
    Grand Piano (Concert, Modern, Classic, Mellow, Bright), Elec Piano 1, Elec Piano 2, FM E. Piano, 60's E. Piano, Harpsichord, Vibraphone, Strings 1, Strings 2, Pipe Organ, Jazz Organ, Elec Organ 1, Elec Organ 2, Bass (Lower)
    Sound Engine Sound Source: Multi-Dimensional Morphing AiR
    Stereo Sampled Piano Tones: Yes
    Hammer Response: Yes
    Damper Noise: Yes
    Damper Resonance: Yes
    Split/Layer Yes/Yes
    Digital Effects Hall Simulator/Reverb: 4 (reverb)
    Chorus: 4
    Brilliance: Yes (-3 to +3)
    DSP: Yes (preset for some tones)
    Auto Accompaniment Built-In Songs: 60
    Song Expansion: 10 Songs (maximum), up to approximately 90 KB/Song
    Lesson/Guide Lesson Function: Part on/off
    Lesson Part Select: Right hand, left hand
    Recorder MIDI Recorder: 2 tracks, 1 song
    Recorder Capacity: Approximately 5,000 notes total
    Performance Modes Duet Mode: Yes (duet pan on/off)
    Transpose Octave Shift: ±2 octaves
    Transpose: 2 octaves (-12 to +12 semitones)
    Tuning Control: A4 = 415.5Hz ~ 440.0Hz ~ 465.9Hz
    Scale Scale Function: 17 preset temperaments
    Metronome 0, 2, 3, 4, 5, and 6 beats
    Tempo Range: 20 to 255
    Pedal Control Included: SP-3
    Optional: SP-20, SP-33 (damper, soft, and sostenuto)
    Half-Damper Pedal Operation: Yes (with optional SP-33 3-pedal unit)
    Operation Lock Yes
    MIDI Yes, via USB
    Connectors Phones: 2 x 1/8" / 3.5 mm stereo-mini TRS jacks
    Pedal: 1 (Damper)
    Connector for 3-Pedal Unit: Yes
    Line Out (L/Mono / R): 2 x 1/4" / 6.35 mm mono TS jacks
    USB Port: Yes
    Amplifiers and Speakers Speakers: 2 x 4.7" / 11.9 cm
    Amplifier: 8 W + 8 W
    Dimensions (W x D x H) Keyboard: 52.0 x 11.5 x 5.6" / 132.1 x 29.2 x 14.2 cm
    Keyboard with Optional Stand: 52.0 x 11.5 x 30.2" / 132.1 x 29.2 x 76.7 cm
    Weight Keyboard: 25.5 lb / 11.6 kg
    Keyboard with Optional Stand: 46.5 lb / 21.1 kg
    Packaging Info
    Box Dimensions (LxWxH) 57.5 x 14.5 x 8.0"
  • Casio PAC 2BK - Privia Accessory Pack for PX-150 and PX-350 (Black)
    Packaging Info
    Box Dimensions (LxWxH) 54.0 x 13.0 x 9.0"
  • Auray PBS-FS - Fixed Height Wood Style Piano Bench with Storage Compartment
    Height 19.25" (489 mm)
    Width 22.5" (572 mm)
    Depth 13.2" (335 mm)
    Weight 13 lb (5.9 kg)
    Seat Size 22.5 x 13.2" (572 x 335 mm)
    Weight Capacity 250 lb (113.4 kg)
    Packaging Info
    Box Dimensions (LxWxH) 23.3 x 13.7 x 6.3"
  • Shure SRH240A Professional Around-Ear Stereo Headphones
    Type Around-ear, closed-back, dynamic
    Frequency Range 20Hz - 20kHz
    Impedance 38 ohms
    Sensitivity 107dB/mW
    Maximum Input Power 500mW
    Connectors Nickel-plated 3.5mm stereo mini plug with threaded 1/4" adapter
    Cable Length 6.56' (2 m)
    Weight 10.1 oz (238g)
    Packaging Info
    Box Dimensions (LxWxH) 9.5 x 8.7 x 4.6"
The user manual for the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench can be downloaded in .pdf format if it did not come with your new digital pianos, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Casio users keep a unique electronic library for Casio digital pianoss, where you can use our link to download the user manual for the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench.

The user manual lists all of the functions of the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench, all the basic and advanced features and tells you how to use the digital pianos. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Casio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Casio PX-160 Privia 88-Key Digital Piano with Stand, Bench. User manuals are also available on the Casio website under Pro Audio - Musical Instruments - Digital Pianos.
