User manual for Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE

Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE
  • Manufacturer: Casio
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Digital Pianos
  • Safety instructions
  • Startup and operation of the digital pianos
  • Tips for setting up your Casio
  • Settings and expert assistance
  • Contact Casio service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD
Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE
Click to enlarge image

We recommend checking out our discussion threads on the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE, which address similar problems with connecting and setting up Digital Pianos Casio.



User manual for the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE

The user manual for the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Digital Pianos.

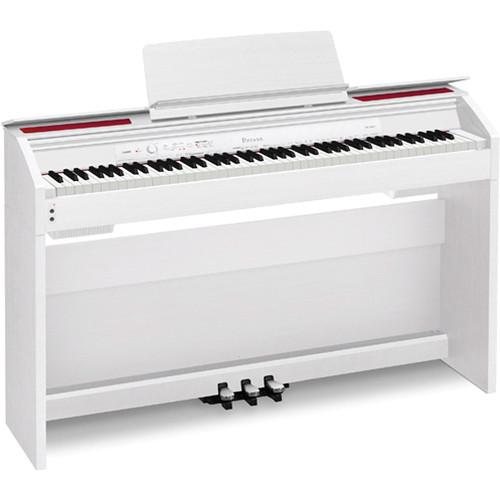

The white PX-860 Privia 88-Key Digital Piano from Casio includes a display cabinet, for a more refined look than an ordinary keyboard and stand. The PX-860 features the advanced, multi-dimensional AiR sound source, which provides accurate instrument modeling with a high level of sonic detail. The Tri-sensor scaled hammer action, combined with a Damper Resonance simulator, gives the user a closer feel to an acoustic piano. The PX-860 also features the String Resonance and Lid Simulator sound enhancements to add even more authenticity to its sound.

The 88-note scaled hammer action keyboard features simulated ebony and ivory textured keys. Three sensors per key capture the dynamics of a performance. The PX-860 mimics the variable hammer timing that occurs naturally inside of an acoustic grand, relative to the attack velocity. The included 3-pedal array features damper, soft, and sostenuto pedals that attach as part of the display cabinet. A half-damper effect can be applied by partially pressing the pedal.

The PX-860 has many other tones, including strings, organs, electric pianos, and bass. It also provides split and layering capability. Duet mode splits the keyboard into two equal ranges, allowing student and teacher to use the piano in unison. An integrated two-track MIDI recorder can record and playback your practice and performances, while the audio recorder records direct to a USB flash drive with up to 99 songs, each approximately 25 minutes in length. Class compliant USB connectivity allows the PX-860 to be used with Mac or Windows and function as a USB MIDI controller.
If you own a Casio digital pianos and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE:
Specifications
    Keys/Sensors 88 keys
    3 sensors per key
    Action Type Scaled hammer action
    Finish White keys: ivory feel
    Black keys: ebony feel
    Touch Sensitivity 3 sensitivity levels, off
    Off Velocity: Yes
    Sound Engine AiR (Acoustic & intelligent Resonator) sound source
    Polyphony 256 Maximum
    Tones Built-in: 18
    Tone select buttons: 3
    Duet Mode: Yes
    Layer: Yes, excluding Bass
    Split: Yes (Low-range bass tone only)
    Octave Shift: Yes
    Response Hammer Response: Yes (selective)
    Damper Resonance: Yes (selective)
    String Resonance: Yes (selective)
    Lid Simulator: Yes (selective)
    Key Off Simulator: Yes (preset for piano tones)
    Digital Effects Hall Simulator: 4 types
    Chorus: 4 types
    Brilliance: adjustable from -3 to +3
    DSP: Yes (preset for certain tones)
    Transpose 2 Octaves (-12 semitones to +12 semitones)
    Tuning A4 = 415.5 Hz to 465.9 Hz, variable
    Library Concert Play
    Number of Songs: 10
    Song Volume: Adjustable
    Part On/Off: L, R (in the Lesson Mode only)
    3 Modes: Listen, Lesson, Play

    Music Library
    Number of Songs: 60
    User Songs: 10 (Up to approximately 90 KB per song, 900 KB for 10 Songs)
    Song Volume: Adjustable
    Part On/Off: L, R
    Lesson/Guide On/off
    Metronome Beats: 0 to 9
    Tempo Setting 20 to 255 BPM
    MIDI 16-channel multi-timbre receive
    MIDI Recorder Real-time recording and playback
    Number of Songs: 1
    Number of Tracks: 2
    Capacity: Approximately 5,000 notes total
    Recorded Data Protection: Built-in flash memory
    USB Audio Recorder Real-time recording and playback to USB flash drive
    Format: Linear PCM, 16-bit 44.1 kHz (.WAV)
    Songs: 99
    Approximately 25 minutes maximum recording per file
    Audio Recorder Volume Level: Adjustable
    Pedals 3 built-in pedals: damper, soft, sostenuto
    Half-Damper pedal: Yes (seamless recognition)
    Pedal connector
    Terminals USB Type B(to host): Yes
    USB Type A(to device): Yes
    Headphone Outputs 2 x 1/4" TRS Stereo
    Line Output 1 x 1/4" TRS - L/Mono
    1 x 1/4" TRS - R
    Output Impedance: 2.3 kOhms
    Output Voltage: 1.8 VRMS maximum
    Speakers 2x 4.7" / 12 cm speakers
    2x 1.97" / 5 cm tweeters
    Audio Output 20 W + 20 W
    Power Source 24 VDC
    Power Supply AC Adapter : AD-E24250
    Auto Power Off Yes, after approximately 4 hours
    Power Consumption 24 V - 20 W
    Dimensions (W x D x H) Top Board Closed: 53.8 x 11.8 x 33.0" / 136.7 x 29.9 x 83.7 cm
    (Without music stand or corner brackets)
    Weight 78.3 lb / 35.5 kg (without music stand)
    Packaging Info
    Package Weight 96.6 lb
    Box Dimensions (LxWxH) 58.0 x 15.0 x 15.0"
    The user manual for the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE can be downloaded in .pdf format if it did not come with your new digital pianos, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Casio users keep a unique electronic library for Casio digital pianoss, where you can use our link to download the user manual for the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE.

    The user manual lists all of the functions of the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE, all the basic and advanced features and tells you how to use the digital pianos. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Casio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Casio PX-860 Privia 88-Key Digital Piano (White) PX-860WE. User manuals are also available on the Casio website under Pro Audio - Musical Instruments - Digital Pianos.
