User manual for the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141
The user manual for the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

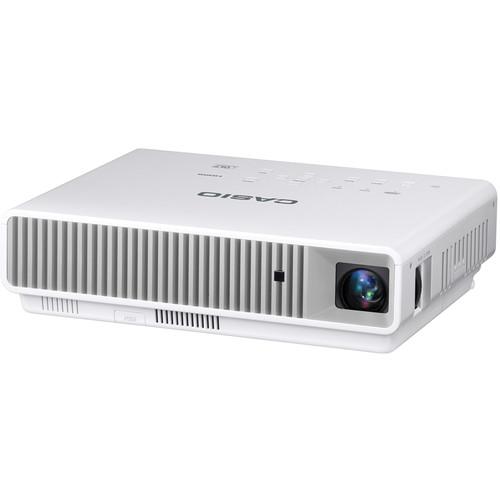

The XJ-M141 Signature Model XGA DLP Multimedia Projector from Casio features a hybrid LED/laser light source that outputs 2500 lumens and lasts up to 20,000 hours. A single-chip 0.55" DLP imaging device delivers a 1024 x 768 (XGA) native resolution and 4:3 native aspect ratio. Thanks to internal scaling capability, the projector can also accept non-native signals up to 1080p for HDTV and 1600 x 1200 (UXGA) for computer sources.
For connection to a variety of devices, including computers, Blu-ray disc and DVD players, document cameras, and more the projector features VGA, HDMI, and composite inputs. The VGA input can also be adapted to accept a component signal using an adapter or adapter cable, available separately. For analog audio, there is a stereo RCA jack paired with the composite input, and a 3.5mm mini jack paired with the VGA input. Audio can be output using the built-in 5-watt mono speaker or sent to amplified speakers or a PA system using the 3.5mm mini jack output. There is also an RS-232 port for remote operation using custom software or an automation system, such as Crestron.
|
If you own a Casio multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141:
| Display System | 1-Chip 0.55" / 13.97 mm DLP | | Native Resolution | XGA - 1024 x 768 | | Supported Resolutions | UXGA - 1600 x 1200 | | Format | NTSC
PAL 60, M, N
SECAM | | HDTV Compatibility | 1920 x 1080p
1920 x 1080i
1280 x 720p
720 x 576p
720 x 576i
720 x 480p
720 x 180i | | Brightness | Normal Mode: 2500 Lumens | | Offset | 50% ± 0% | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 1800:1 | | DLP Link 3D | Yes | | Color Range | 16.77 Million | | Focus | Manual | | Zoom | Manual: 1.5x | | Throw Ratio | 1.64 - 2.46:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | Keystone Correction | Auto: Vertical: + 30°
Manual: Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-in Speaker | Yes, 5 W (Mono) | | Internal Memory | None | | Inputs/Outputs | 1x 15-pin VGA Video (Input)
1x HDMI Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control (Input) | | Wireless LAN | None | | Life | Normal Mode: 20000 Hours | | Fan Noise | Not Specified By Manufacturer | | Remote Control | Yes | | Security | Cable Lock Slot
Password Protection | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Normal Mode: 165 W
Eco Mode: 135 W
Standby Mode (Network off): .12 W
Standby Mode (Network on): 2.3 W | | Altitude | 0 - 10000' (0 - 3048 m) | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 20 - 80% | | Dimensions (WxHxD) | 12.2 x 3.3 x 9.6" / 309.9 x 83.8 x 243.8 mm with projections
12.2 x 3.2 x 9.6" / 309.9 x 81.3 x 243.8 mm | | Weight | 8.6 lb / 3.90 kg | | Package Weight | 12.95 lb | | Box Dimensions (LxWxH) | 16.6 x 14.8 x 7.0" | |
The user manual for the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Casio users keep a unique electronic library
for Casio multimedia projectorss,
where you can use our link to download the user manual for the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141.
The user manual lists all of the functions of the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Casio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Casio XJ-M141 Signature Model XGA DLP Multimedia XJ-M141. User manuals are also
available on the Casio website under A/V Presentation - Projectors - Multimedia Projectors.
