User manual for Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246

Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246
  • Manufacturer: Casio
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Casio
  • Settings and expert assistance
  • Contact Casio service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246, which address similar problems with connecting and setting up Multimedia Projectors Casio.



User manual for the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246

The user manual for the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

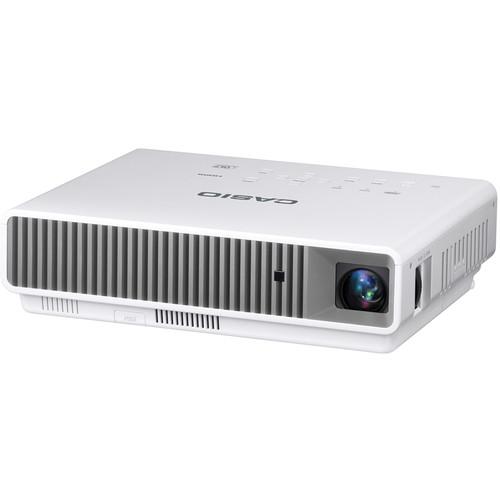

The XJ-M246 Signature Model WXGA DLP Multimedia Projector from Casio features a hybrid LED/laser light source that outputs 2500 lumens and lasts up to 20,000 hours. A single-chip 0.65" DLP imaging device delivers a 1280 x 800 (WXGA) native resolution, 16:10 native aspect ratio image. Thanks to internal scaling capability, the projector can also accept non-native signals up to 1080p for HDTV and 1600 x 1200 (UXGA) for computer sources.

For connection to a computer, Blu-ray or DVD player, A/V system, document camera, or just about any other video source, the projector features an HDMI input, a VGA input, and a legacy composite input. The VGA input also supports component by using a separately available component (YCbCr/YPbPr) to VGA adapter or cable. A USB port allows you to connect a storage device such as a flash drive to give "PC-less" presentations or load files onto the 2GB of built-in memory. It also allows you to connect the included wePresent wireless LAN adapter. With this adapter you can give presentations from a Mac or Windows computer or iOS, Android, or Windows Mobile device.

A wireless IR remote is included that works up to 16.4' away. For integration with automation systems like Crestron or control via PJLink-compatible software, there is an RS-232C port and an Ethernet port.
If you own a Casio multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246Download user manual for Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246
(PDF file, 0.61 MB)
Additional parameters of the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246:
Specifications
    Image Display
    Display System 1-Chip 0.65" / 16.51 mm DLP
    Native Resolution WXGA - 1280 x 800
    Supported Resolutions UXGA - 1600 x 1200
    Format NTSC
    PAL 60, M, N
    SECAM
    HDTV Compatibility 1920 x 1080p
    1920 x 1080i
    1280 x 720p
    720 x 576p
    720 x 576i
    720 x 480p
    720 x 180i
    Brightness Normal Mode: 2500 Lumens
    Offset 33% ± 0%
    Aspect Ratio Native: 16:10
    Supported: 16:9
    Supported: 4:3
    Contrast Ratio 1800:1
    DLP Link 3D Yes
    Color Range 16.77 Million
    Lens
    Focus Manual
    Zoom Manual: 1.5x
    Throw Distance 3.3' (1.0 m)
    Throw Ratio 1.32 - 1.93:1
    Projection Size 35 - 300" / 88.90 - 762.00 cm
    Features
    Keystone Correction Auto: Vertical: + 30°
    Manual: Vertical: ± 30°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker Yes, 5 W (Mono)
    Internal Memory 2.0 GB
    Input/Output Connectors
    Inputs/Outputs 1x 15-pin VGA Video (Input)
    1x HDMI Audio/Video (Input)
    1x RCA Composite Video (Input)
    1x S-Video Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x USB 2.0 Type-A Female
    2x Micro USB Type-B Female
    1x Ethernet LAN
    1x RS-232C Control (Input)
    Wireless LAN Yes

    With supplied YW-40 USB dongle

    General
    Life Normal Mode: 20000 Hours
    Fan Noise Not Specified By Manufacturer
    Remote Control Yes
    Security Cable Lock Slot
    Password Protection
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 165 W
    Eco Mode: 135 W
    Standby Mode (Network off): .12 W
    Standby Mode (Network on): 2.3 W
    Altitude 0 - 10000' (0 - 3048 m)
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Humidity: 20 - 80%
    Dimensions (WxHxD) 12.2 x 3.3 x 9.6" / 309.9 x 83.8 x 243.8 mm with projections
    12.2 x 3.2 x 9.6" / 309.9 x 81.3 x 243.8 mm
    Weight 8.6 lb / 3.90 kg
    Packaging Info
    Package Weight 13.65 lb
    Box Dimensions (LxWxH) 16.5 x 14.8 x 7.1"
    The user manual for the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Casio users keep a unique electronic library for Casio multimedia projectorss, where you can use our link to download the user manual for the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246.

    The user manual lists all of the functions of the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Casio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Casio XJ-M246 Signature Model WXGA DLP Multimedia XJ-M246. User manuals are also available on the Casio website under A/V Presentation - Projectors - Multimedia Projectors.
