User manual for Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Celestron
- Basic description and contents of package
- Product classification: Optics - Microscopes - Digital Microscopes
- Safety instructions
- Startup and operation of the digital microscopes
- Tips for setting up your Celestron
- Settings and expert assistance
- Contact Celestron service
- Troubleshooting
- Warranty information
- Price: 289 USD
|
We recommend checking out our discussion threads on the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347,
which address similar problems with connecting and setting up Digital Microscopes Celestron.
|
User manual for the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347
The user manual for the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347 provides
necessary instructions for the proper use of the product Optics - Microscopes - Digital Microscopes.

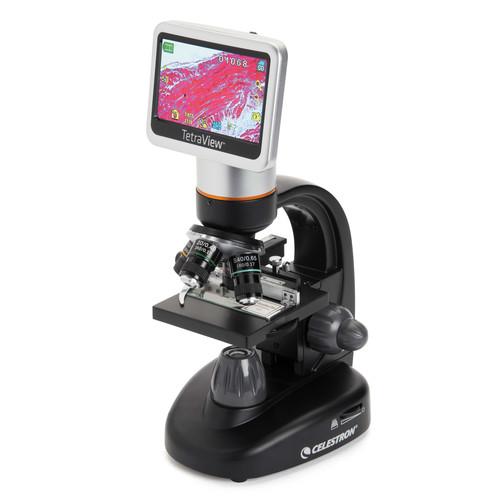

The TETRAVIEW 5MP Digital Microscope with 180° TFT LCD Display from Celestron features a 5MP digital camera, achromatic objectives on a rotating turret, a 180° rotating TFT LCD display, and cordless operation option. The objectives have magnifications 4x, 10x, 20x, and 40x and contain optics made of achromatic glass. The achromatic optical glass reduces color distortions and provides images with a better clarity and detail than plain optical lenses. Instead of an eyepiece, this microscope has a Thin-Film-Transistor (TFT) LCD touchscreen which rotates 180°. This type of LCD improves addressability and contrast. The built-in 5MP digital camera delivers up to 400x on-screen magnification without digital zoom. With the 4x digital zoom, it delivers total magnification of up to 1600x. You can view your specimens via an integrated 4.3" display, capture images and videos, or save them to external memory. The microscope has an SD card slot which supports up to 32GB of memory. It also features an AV/TV and USB output ports which enable you or your audience to view images or videos on a larger screen. Additionally, the microscope can be used in a cordless operation mode using four AA batteries, but does not have a built-in charger.
The mechanical 3.5 x 3.5" stage features two precision X-Y position controls with scale and two metal brackets to hold and align your slides. To provide lighting for your slides, there is a bottom LED illuminator with controllable brightness and 0.65 NA condenser for collimating a light cone. To allow you additional control over image detail, sharpness and contrast of different visual features and sample layers, this microscope is equipped with a six-position filter wheel with red, blue, and green filters, and three diaphragms with different size apertures. Be aware that switching objectives will change working distance from the objective tip to your sample dramatically.
Also included with the microscope are seven prepared slides, a stylus, a 2GB SD memory card, a USB cable, an AC power supply with international plugs, a dust cover, and a hard case.
|
If you own a Celestron digital microscopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347:
| Microscope Type | Compound | | Objective(s) | 4x, 10x, 20x, 40x / achromatic | | Focus | Coarse, fine | | Working Distance | 4x: 35.3 mm
10x: 7.8 mm
20x: 1.9 mm
40x: 0.7 mm | | Light Source | LED | | External Memory | SD card slot
Included 2GB SD card
Expandable to 32GB | | Specimen Stage | 3.5 x 3.5" (88 x 88 mm), mechanical, with clips | | Overall Dimensions | 13 x 7 x 5.5" (33 x 17.8 x 12.7 cm) | | Weight | 4.2 lb (1.9 kg) | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 17.402 x 9.921 x 8.74" | |
The user manual for the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347 can be downloaded in .pdf
format if it did not come with your new digital microscopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Celestron users keep a unique electronic library
for Celestron digital microscopess,
where you can use our link to download the user manual for the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347.
The user manual lists all of the functions of the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347,
all the basic and advanced features and tells you how to use the digital microscopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Celestron service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347. User manuals are also
available on the Celestron website under Optics - Microscopes - Digital Microscopes.
Question and answer discussion forum concerning user instructions and resolving problems with the Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347
Post new comment to Celestron TETRAVIEW 5MP Digital Microscope with 180° 44347
| Subject: 44347 microscope | | Date: 11.06.2020 01:18:02 | Author: Les. Matthews | Microscpe soes not go back to the start screen. It stays in MSDC and will not turn off with the power switch. It does this either on Battery or the power supply. Removing the power and letting the scope stand for a time then connecting the power again does not clear the problem.
Thank you. | | Reply |
