User manual CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR

Operating instructions and pdf manual for use - CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR User manual, User manual CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR, CHAUVET, COLORado, 1-Quad, Zoom, Tour, Wash, L


User manual for CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR

CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR
  • Manufacturer: CHAUVET
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Stage & Studio
  • Safety instructions
  • Startup and operation of the stage & studio
  • Tips for setting up your CHAUVET
  • Settings and expert assistance
  • Contact CHAUVET service
  • Troubleshooting
  • Warranty information
  • Price: 530 USD
We recommend checking out our discussion threads on the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR, which address similar problems with connecting and setting up Stage & Studio CHAUVET.



User manual for the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR

The user manual for the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Stage & Studio.

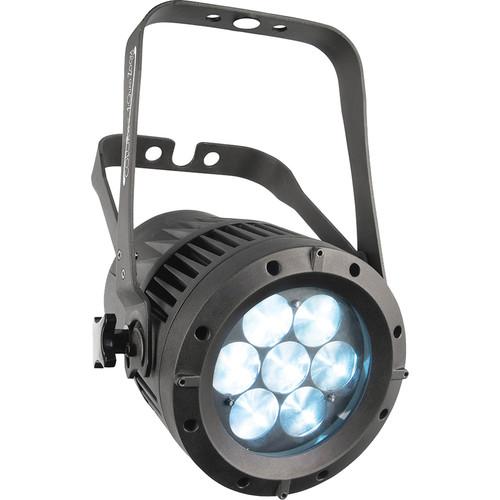

The CHAUVET COLORado 1-Quad Zoom Tour Wash Light is a compact, tour-ready wash light featuring seven bright quad-color (RGBW) LEDs, giving the user a bright beam with zoom for versatile usage in the studio, on set, or on the road. The incorporation of a wide range zoom and five dimming curves lends immense flexibility to designers who can use the same fixture to highlight specific areas and flood a stage. Secure Neutrik powerCON and direct 3- and 5-pin DMX connectors make for easy installation. A gel frame holder is included.
If you own a CHAUVET stage & studio and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR:
Specifications
    DMX Channels 3, 4, 5, 6, 7, 10, 12, 17 or 25
    Data Connector 3-pin and 5-pin XLR
    Light Source 7 Quad-color RGBW LEDs
    15 W, (1,000 mA), 50,000 hours life expectancy
    Color Standalone RGBW color mixing with or without DMX control
    Temperature range: 2,800 to 10,000K
    Color temperature presets
    Programs Built-in automated programs
    Customizable programs
    Recall custom programs
    Strobe Rate 0 to 20 Hz
    Dimmer Electronic, 9 dimming modes
    Illuminance 3,950 lux @ 16.4' (5.0 m) at 16°
    330 lux @ 16.4' (5.0 m) at 48°
    PWM Frequency 1,200 Hz
    Beam and Field Angle Beam angle: 7 to 29°
    Field angle: 16 to 48°
    Zoom angle: 16 to 48°
    Connectors AC power: Edison plug to Neutrik powerCON 5.0' (1.5 m) cable
    Input: Neutrik powerCON
    Output: Neutrik powerCON
    Power Linking 12 units @ 120 VAC
    21 units @ 208 VAC
    23 units @ 230 VAC
    AC Voltage 100 to 240 V, 50/60 Hz (auto-ranging)
    Power and Current 120 VAC, 60 Hz: 129 W, 1.08 A
    208 VAC, 60 Hz: 125 W, 0.63 A
    230 VAC, 50 Hz: 124 W, 0.57 A
    Power Linking 11 units @ 120 V
    19 units @ 208 V
    21 units @ 230 V
    Approvals CE, MET
    IP Rating IP20, dry location
    Dimensions Light: 13.14 x 9.25 x 7.48" (334 x 235 x 190 mm)
    Accessory holder/gel frame: 7.5" (191 mm)
    Weight 14.8 lb (6.7 kg)
    Packaging Info
    Package Weight 20.35 lb
    Box Dimensions (LxWxH) 16.7 x 12.9 x 10.7"
    The user manual for the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR can be downloaded in .pdf format if it did not come with your new stage & studio, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other CHAUVET users keep a unique electronic library for CHAUVET stage & studios, where you can use our link to download the user manual for the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR.

    The user manual lists all of the functions of the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR, all the basic and advanced features and tells you how to use the stage & studio. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from CHAUVET service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the CHAUVET COLORado 1-Quad Zoom Tour Wash Light COLORADO1QZOOMTOUR. User manuals are also available on the CHAUVET website under Lighting & Studio - Continuous Lighting - Stage & Studio.
