User manual CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36

Operating instructions and pdf manual for use - CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36 User manual, User manual CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36, CHAUVET, Ovation, ED-190WW, LED, Ellipsoidal, Sp


User manual for CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36

CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36
  • Manufacturer: CHAUVET
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Stage & Studio
  • Safety instructions
  • Startup and operation of the stage & studio
  • Tips for setting up your CHAUVET
  • Settings and expert assistance
  • Contact CHAUVET service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36, which address similar problems with connecting and setting up Stage & Studio CHAUVET.



User manual for the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36

The user manual for the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Stage & Studio.

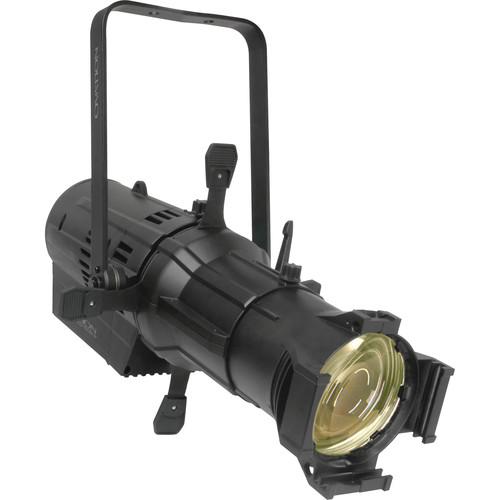

The Ovation ED-190WW LED Ellipsoidal Spot with 36° Lens from Chauvet is a high-powered LED-based fixture that makes it possible to retrofit lamp-based ellipsoidals without losing your investment in a dimming system. The Ovation ED-190WW is equally efficient running on constant power and DMX (as LED fixtures typically do) as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives and directs the light to respond accordingly. The ED-190WW performs as well as the original Ovation E-190WW with the same output and tremendous dimming performance. Now everyone can enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.
If you own a CHAUVET stage & studio and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36:
Specifications
    Light Source 19 x 10 W LEDs (Warm White) (2.8 A)
    LED Life Expectancy Up to 100,000 hours
    Lens 36°
    Beam and Field Angle Beam Angle: 31°
    Field Angle: 36°
    Color Temperature Full Power: 3,076 K
    Focus Manual
    Illuminance 1,578 lux @ 16.4' (5.0 m)
    Lumens 6,322
    Shutter/Strobe Electronic
    Strobe Rate 0 - 20 Hz
    PWM Frequency 600 Hz
    Frame Size Accessory Holder/Gel Frame Size (19, 26, 36, 50° Lens): 6.25" (159 mm)
    Accessory Holder/Gel Frame Size (15-30° and 25-50° Lens): 7.5" (191 mm)
    Gobo Size Gobo Holder Size A (optional): 94 mm (outside), 79 mm (image), 2.5 mm max. thickness)
    Gobo Holder Size B (optional): 94 mm (outside), 69 mm (image), 2.5 mm max. thickness)
    Controls Dimmer, DMX
    Dimming Electronic or External Dimmer Rack
    Resolution: 16-bit
    4 x Dim Curves
    5 x Dim Modes
    DMX Connectors XLR 3-pin input and output
    XLR 5-pin input and output
    DMX Channels 1, 2, or 3
    Operating Modes 3 x Modes
    UNO (1-Channel): dimmer control
    DOS (2-Channel): dimmer and fine dimmer control
    STD.P (3-Channel): dimmer, fine dimmer, and strobe control
    Input Voltage 120/230 VAC, 50/60 Hz (switchable)
    Power Cable 5.0' (1.5 m) Edison plug to Neutrik powerCON
    Power Connectors Power Input: Neutrik powerCON
    Power Output: Neutrik powerCON
    Power and Current 208 W, 1.7 A @ 120 VAC, 60 Hz
    200 W, 0.9 A @ 230 VAC, 50 Hz
    Power Linking 4 Units @ 120 VAC, 8 units @ 230 VAC
    Fuse T 3.15 A, 250 V
    Approvals CE
    IP Rating IP20, dry location
    Maximum Temperature External: 113°F (46°C)
    Dimensions Fixture Without Lens: 21.5 x 15 x 15" (54.5 x 38.0 x 38.0 cm)
    Weight Fixture Without Lens: 16.4 lb (7.44 kg)
    The user manual for the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36 can be downloaded in .pdf format if it did not come with your new stage & studio, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other CHAUVET users keep a unique electronic library for CHAUVET stage & studios, where you can use our link to download the user manual for the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36.

    The user manual lists all of the functions of the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36, all the basic and advanced features and tells you how to use the stage & studio. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from CHAUVET service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the CHAUVET Ovation ED-190WW LED Ellipsoidal Spot OVATIONED190WW36. User manuals are also available on the CHAUVET website under Lighting & Studio - Continuous Lighting - Stage & Studio.
