User manual for the Cisco RV320 Dual Gigabit WAN VPN Router RV320-K9-NA
The user manual for the Cisco RV320 Dual Gigabit WAN VPN Router RV320-K9-NA provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Routers.

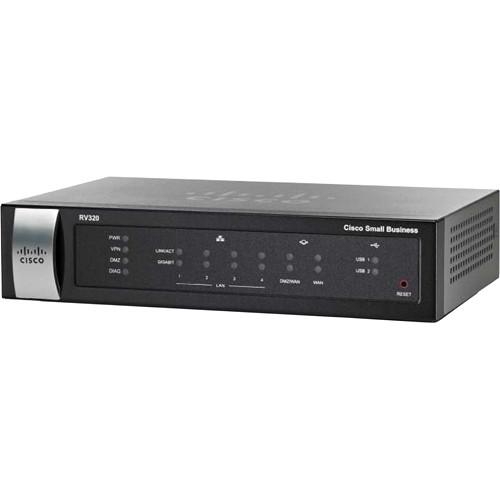

The RV320 Dual Gigabit WAN VPN Router from Cisco comes equipped with four Gigabit Ethernet Ports, one Gigabit WAN port, and one Gigabit Ethernet DMZ/Internet WAN port. The integrated DMZ/Internet WAN port provides a buffer zone between your personal or business network and the Internet for an additional layer of security. The dual Gigabit Ethernet WAN ports allow you to create and administer two separate subnets thus keeping one network separate from the other.
Should the incoming Internet connection fail, you can utilize one of the dual USB ports to insert a 3G/4G modem. Once the modem is inserted, that connection can then be shared with users throughout the network. In addition to connecting a USB modem, you can connect a flash drive to either USB port to share saved files and data with network users.
This Cisco router is designed with VPN functionality in mind as it supports up to 25 IPsec site-to-site tunnels ensuring your users in other locations can remain connected. You can also utilize both Cisco's VPN client as well as third-party VPN clients to establish VPN connections. Even when you're on the go the Cisco RV320 Router can keep you connected as it supports up to 10 SSL VPN tunnels eliminating the need for specific client software to access the VPN. All you need it a web browser to stay connected.
|
If you own a Cisco network routers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco RV320 Dual Gigabit WAN VPN Router RV320-K9-NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cisco RV320 Dual Gigabit WAN VPN Router RV320-K9-NA:
| Dual WAN | Dual Gigabit Ethernet Ports
Failover
Load balancing | | Standards | 802.3, 802.3u
IPv4 (RFC 791)
IPv6 (RFC 2460) | | WAN Connectivity | Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Transparent bridge
DNS relay, Dynamic DNS (DynDNS, 3322)
IPv6 | | Routing Protocols | Static
Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng) | | Network Address Translation (NAT) | Port Address Translation (PAT)
One-to-one NAT
NAT traversal | | Protocol Binding | Protocols can be bound to a specific WAN port for load balancing | | Network Edge (DMZ) | DMZ port
DMZ host | | USB Ports | Dual USB ports with 3G/4G modem support | | Firewall | SPI firewall
Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack | | Access Rules | Schedule-based access rules
Up to 50 entries | | Port Forwarding | Up to 30 entries | | Port Triggering | Up to 30 entries | | Blocking | Java, cookies, ActiveX, HTTP proxy | | Secure Management | HTTPS web access to device manager
Username/password complexity enforcement | | VLAN | 802.1Q VLAN
RV320: 7 VLANs supported

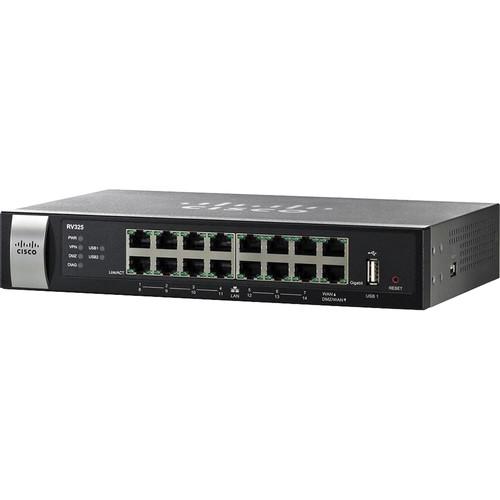

RV325: 7 VLANs supported | | IPsec Access Modes | 25 x IPsec site-to-site tunnels for branch office connectivity | | SSL VPN Tunnels | 10 x SSL VPN tunnels for remote client access | | PPTP VPN | 10 x PPTP tunnels for remote access | | Encryption | Data Encryption Standard (DES)
Triple Data Encryption Standard (3DES)
Advanced Encryption Standard (AES) Encryption: AES-128, AES-192, AES-256 | | Authentication | MD5/SHA1 authentication | | IPsec NAT Traversal | Supported for gateway-to-gateway and client-to-gateway tunnels | | VPN Pass-Through | PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec | | Advanced VPN | Dead peer detection (DPD)
Split DNS
VPN backup
Internet Key Exchange (IKE) with certificate | | Prioritization Types | Application-based priority on WAN port | | Service-based QoS | Supports rate control or priority | | Rate Control | Upstream/downstream bandwidth can be configured per service | | Priority | Each service can be mapped to one of 3 priority levels | | IPsec VPN Throughput | 100 Mbps | | SSL VPN Throughput | 20 Mbps | | Maximum Concurrent Connections | 20,000 | | Web User Interface | Simple browser-based device manager (HTTP/HTTPS) | | Management Protocols | Web browser (HTTP/HTTPS)
Simple Network Management Protocol (SNMP) v1, v2c, and v3
Bonjour | | Event Logging | Local log
Syslog
Email alert
Short Message Service (SMS) | | Upgradability | Firmware upgradable through web browser
Imported/exported configuration file | | Ports | 4 x 10/100/1000 RJ-45 ports
1 x 10/100/1000 RJ-45 Internet port
1 x 10/100/1000 RJ-45 DMZ/Internet port | | Power Supply | 12 V 1.5 A | | Certifications | FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 32 to 158°F / 0 to 70°C
Operating Humidity: 10 to 85% non-condensing
Storage Temperature: 5 to 90% non-condensing | | Dimensions | 8.1 x 5.2 x 1.7" (20.6 x 13.2 x 4.4 cm) | | Weight | Not specified by manufacturer | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.2 x 9.4 x 3.1" | |
