User manual Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA

Operating instructions and pdf manual for use - Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA User manual, User manual Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA, Cisco, RV325, Dual, Gigabit, WAN, VPN, Router, RV325-K9-NA,


User manual for Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Routers
  • Safety instructions
  • Startup and operation of the network routers
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 195 USD

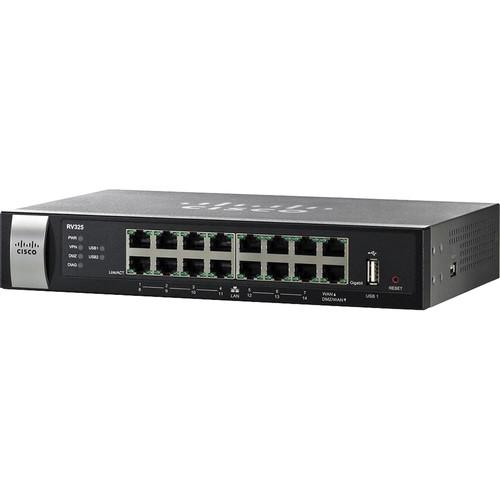

Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA
Click to enlarge image

We recommend checking out our discussion threads on the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA, which address similar problems with connecting and setting up Network Routers Cisco.



User manual for the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA

The user manual for the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Routers.

The RV325 Dual Gigabit WAN VPN Router from Cisco comes equipped with fourteen Gigabit Ethernet Ports, one Gigabit WAN port, and one Gigabit Ethernet DMZ/Internet WAN port. The integrated DMZ/Internet WAN port provides a buffer zone between your personal or business network and the Internet for an additional layer of security. The dual Gigabit Ethernet WAN ports allow you to create and administer two separate subnets thus keeping one network separate from the other.

Should the incoming Internet connection fail, you can utilize one of the dual USB ports to insert a 3G/4G modem. Once the modem is inserted, that connection can then be shared with users throughout the network. In addition to connecting a USB modem, you can connect a flash drive to either USB port to share saved files and data with network users.

This Cisco router is designed with VPN functionality in mind as it supports up to 25 IPsec site-to-site tunnels ensuring your users in other locations can remain connected. You can also utilize both Cisco's VPN client as well as third-party VPN clients to establish VPN connections. Even when you're on the go the Cisco RV325 Router can keep you connected as it supports up to 10 SSL VPN tunnels eliminating the need for specific client software to access the VPN. All you need it a web browser to stay connected.
If you own a Cisco network routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA:
Basic Specifications
Dual WAN Dual Gigabit Ethernet Ports
Failover
Load balancing
Standards 802.3, 802.3u
IPv4 (RFC 791)
IPv6 (RFC 2460)
WAN Connectivity Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Transparent bridge
DNS relay, Dynamic DNS (DynDNS, 3322)
IPv6
Routing Protocols Static
Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)
Network Address Translation (NAT) Port Address Translation (PAT)
One-to-one NAT
NAT traversal
Protocol Binding Protocols can be bound to a specific WAN port for load balancing
Network Edge (DMZ) DMZ port
DMZ host
USB Ports Dual USB ports with 3G/4G modem support
Security
Firewall SPI firewall
Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack
Access Rules Schedule-based access rules
Up to 50 entries
Port Forwarding Up to 30 entries
Port Triggering Up to 30 entries
Blocking Java, cookies, ActiveX, HTTP proxy
Secure Management HTTPS web access to device manager
Username/password complexity enforcement
VLAN 802.1Q VLAN

RV320: 17 VLANs supported
RV325: 17 VLANs supported
VPN
IPsec Access Modes 25 x IPsec site-to-site tunnels for branch office connectivity
SSL VPN Tunnels 10 x SSL VPN tunnels for remote client access
PPTP VPN 10 x PPTP tunnels for remote access
Encryption Data Encryption Standard (DES)
Triple Data Encryption Standard (3DES)
Advanced Encryption Standard (AES) Encryption: AES-128, AES-192, AES-256
Authentication MD5/SHA1 authentication
IPsec NAT Traversal Supported for gateway-to-gateway and client-to-gateway tunnels
VPN Pass-Through PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
Advanced VPN Dead peer detection (DPD)
Split DNS
VPN backup
Internet Key Exchange (IKE) with certificate
Quality of Service (QoS)
Prioritization Types Application-based priority on WAN port
Service-based QoS Supports rate control or priority
Rate Control Upstream/downstream bandwidth can be configured per service
Priority Each service can be mapped to one of 3 priority levels
Performance
IPsec VPN Throughput 100 Mbps
SSL VPN Throughput 20 Mbps
Maximum Concurrent Connections 40,000
Configuration
Web User Interface Simple browser-based device manager (HTTP/HTTPS)
Management
Management Protocols Web browser (HTTP/HTTPS)
Simple Network Management Protocol (SNMP) v1, v2c, and v3
Bonjour
Event Logging Local log
Syslog
Email alert
Short Message Service (SMS)
Upgradability Firmware upgradable through web browser
Imported/exported configuration file
Other Specifications
Ports 14 x 10/100/1000 RJ-45 ports
1 x 10/100/1000 RJ-45 Internet port
1 x 10/100/1000 RJ-45 DMZ/Internet port
Power Supply 12 V 2 A
Certifications FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 32 to 158°F / 0 to 70°C
Operating Humidity: 10 to 85% non-condensing
Storage Temperature: 5 to 90% non-condensing
Dimensions 9.6 x 7.0 x 1.8" (24.3 x 17.7 x 4.5 cm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 4.8 lb
Box Dimensions (LxWxH) 15.354 x 12.126 x 3.15"
The user manual for the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA can be downloaded in .pdf format if it did not come with your new network routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco network routerss, where you can use our link to download the user manual for the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA.

The user manual lists all of the functions of the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA, all the basic and advanced features and tells you how to use the network routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco RV325 Dual Gigabit WAN VPN Router RV325-K9-NA. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Network Routers.
