User manual Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA

Operating instructions and pdf manual for use - Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA User manual, User manual Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA, Cisco, SG110D-08HP, 110, Series, 8-Port, Unm


User manual for Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA

Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 116 USD
Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA
Click to enlarge image

We recommend checking out our discussion threads on the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Cisco.



User manual for the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA

The user manual for the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

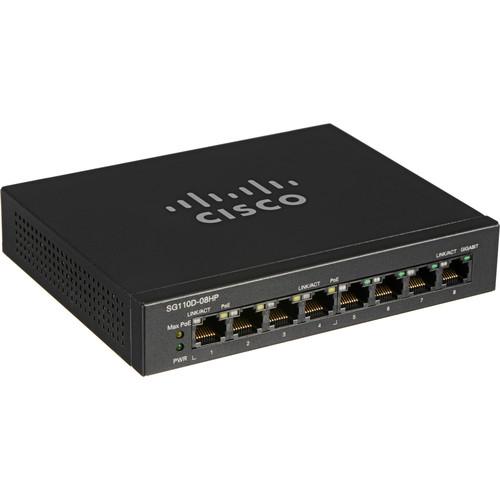

With the SG110D-08HP 110 Series 8-Port Unmanaged Network Switch from Cisco you can connect a variety of Ethernet enabled and PoE compatible devices such as access points, hubs, computers, IP phones, IP cameras, and more directly to a larger network and to the Internet. Plug and play configuration allows you to simply take the switch out of the box place it on the desk or into a rack mount configuration and begin expanding your network capacity. The SG110D-08HP comes equipped with eight Gigabit Ethernet ports, four of which are PoE compatible, to provide a fast, reliable network connection and up to 32 watts of power spread across the four ports. A switching capacity of 16 Gbps and forwarding capacity of 11.9 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.

Once installed this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard which puts unused links within the switch to sleep. For added piece of mind the SG110-16 supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors.
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA:
Specifications
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Cabling Type Category 5e or better
LED Indicators System/PWR, link/activity, 100M, PoE, mMax PoE, cable diagnostics, loop detection, gigabit, mini-GBIC
Ports 10/100/1000 Ethernet
Support for 802.3af PoE
Power Supply DC 12 V, 1.0 A
Kensington Lock Support Yes
Ports 8 x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
PoE Power Dedicated to PoE
32 watts
Number of PoE Ports
4
Fanless Architecture Yes
Switching Capacity 16 Gbps
Forwarding Capacity 11.9 Mpps
Head-of-Line (HOL) Blocking Yes
Jumbo Frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)
Loop Detection Helps discover loops in the network to avoid broadcast storms
Cable Diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Mounting Options Desktop or rack mount
Kensington Lock Support Yes
Certification and Compliance UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Operating Humidity: 10 to 90% relative, non-condensing
Storage Humidity: 5 to 90% relative, non-condensing
System Memory 128MB RAM
128MB Flash
Minimum Requirements Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
Cat5 or better Ethernet cable
Network interface card for each computer
Dimensions 6.29 x 1.18 x 5.05" / 160 x 30 x 128.5 mm
Weight 1.20 lb / 0.55 kg
Packaging Info
Package Weight 2.8 lb
Box Dimensions (LxWxH) 11.3 x 7.9 x 2.8"
The user manual for the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco network switches, bridges & hubss, where you can use our link to download the user manual for the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA.

The user manual lists all of the functions of the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco SG110D-08HP 110 Series 8-Port Unmanaged PoE SG110D-08HP-NA. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
