User manual for Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA
- Manufacturer: Cisco
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
- Safety instructions
- Startup and operation of the network switches, bridges & hubs
- Tips for setting up your Cisco
- Settings and expert assistance
- Contact Cisco service
- Troubleshooting
- Warranty information
- Price: 160 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA,
which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Cisco.
|
User manual for the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA
The user manual for the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

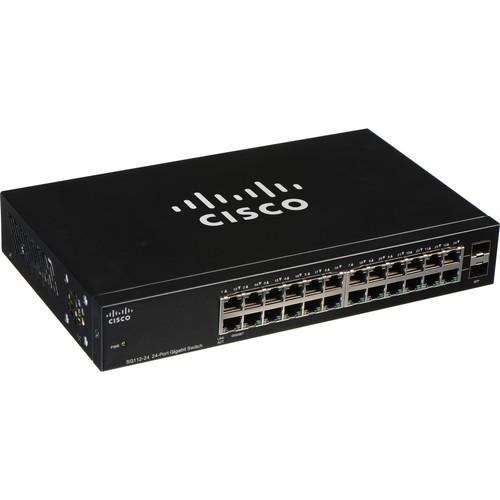

With the SG112-24 110 Series 24-Port Unmanaged Network Switch from Cisco you can connect a variety of Ethernet enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet. Among the 24 ports are 2 combo mini-GBIC slots designed for fiber optic connectivity. Plug and play configuration allows you to simply take the switch out of the box place it on the desk or into a rack mount configuration and begin expanding your network capacity. The SG112-24 comes equipped with twenty four Gigabit Ethernet ports providing a fast, reliable network connection. A switching capacity of 48 Gbps and forwarding capacity of 35.7 mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.
Once installed this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard which puts unused links within the switch to sleep. For added piece of mind the SG112-24 supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors.
|
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA:
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet | | Cabling Type | Category 5e or better | | LED Indicators | System/PWR, link/activity, 100M, PoE, mMax PoE, cable diagnostics, loop detection, gigabit, mini-GBIC | | Ports | 10/100/1000 Ethernet
Power port for AC adapter or power cord | | Power Supply | 110-240 VAC, 50-60 Hz, internal, universal | | Kensington Lock Support | Yes | | Ports | 24 x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots | | Fanless Architecture | Yes | | Switching Capacity | 48 Gbps | | Forwarding Capacity | 35.7 Mpps | | Head-of-Line (HOL) Blocking | Yes | | Jumbo Frame | 9216 bytes | | Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR) | | Loop Detection | Helps discover loops in the network to avoid broadcast storms | | Cable Diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | | Mounting Options | Desktop or rack mount | | Kensington Lock Support | Yes | | Certification and Compliance | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Operating Humidity: 10 to 90% relative, non-condensing
Storage Humidity: 5 to 90% relative, non-condensing | | System Memory | 128MB RAM
128MB Flash | | Minimum Requirements | Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
Cat5 or better Ethernet cable
Network interface card for each computer | | Dimensions | 11.00 x 1.75 x 6.70 inches / 279.4 x 44.5 x 170.0 mm | | Weight | 5.05 lb / 2.3 kg | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 14.6 x 11.4 x 4.1" | |
The user manual for the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA can be downloaded in .pdf
format if it did not come with your new network switches, bridges & hubs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cisco users keep a unique electronic library
for Cisco network switches, bridges & hubss,
where you can use our link to download the user manual for the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA.
The user manual lists all of the functions of the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA,
all the basic and advanced features and tells you how to use the network switches, bridges & hubs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cisco service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA. User manuals are also
available on the Cisco website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
Question and answer discussion forum concerning user instructions and resolving problems with the Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA
Post new comment to Cisco SG112-24 110 Series 24-Port Unmanaged Network SG112-24-NA
| Subject: Bidi | | Date: 14.05.2022 21:07:35 | Author: John Griffith | | Will the Cisco sg112-24 work with a bidi gigabit single mode fiber Ethernet media converter to get back to a copper Ethernet cable ? | | Reply |
| Subject: CISCO SG112-24 manual | | Date: 12.11.2020 17:53:32 | Author: Jeff | | I need a CISCO SG112-24 manual, thanks | | Reply |
| Subject: VLAN | | Date: 26.10.2020 10:28:49 | Author: Bob Joseph | | It this switch is capable of VLAN setting? | | Reply |
