User manual Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G

Operating instructions and pdf manual for use - Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G User manual, User manual Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G, Cisco, SPA502G, 1-Line, IP, Phone, with, Display


User manual for Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G

Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Telephones
  • Safety instructions
  • Startup and operation of the telephones
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 118 USD
We recommend checking out our discussion threads on the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G, which address similar problems with connecting and setting up Telephones Cisco.



User manual for the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G

The user manual for the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Telephones.

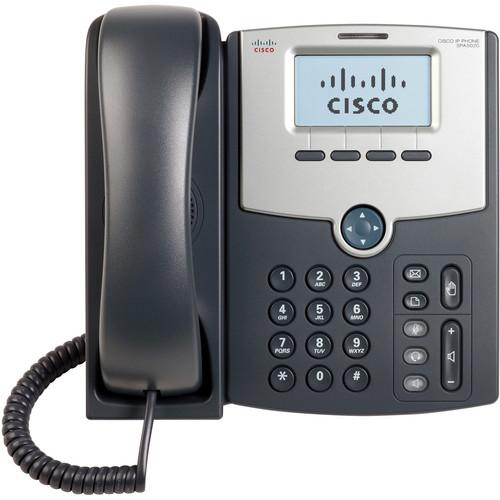

The Cisco SPA502G Basic 1-Line IP Phone with Display PoE and PC Port, part of the Cisco Small Business Pro Series, is a dependable and affordable IP phone for business or home office use. The Cisco SPA502G has been tested to ensure comprehensive interoperability with equipment from voice over IP (VoIP) infrastructure leaders, enabling service providers to quickly roll out services to their customers.
If you own a Cisco telephones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G:
Specifications
    Data networking MAC address (IEEE 802.3)

    IPv4 (RFC 791)

    Address Resolution Protocol (ARP)

    DNS: A record (RFC 1706), SRV record (RFC 2782)

    Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)

    Internet Control Message Protocol (ICMP) (RFC 792)

    TCP (RFC 793)

    User Datagram Protocol (UDP) (RFC 768)

    Real-Time Transport Protocol (RTP) (RFC 1889, 1890)

    Real-Time Control Protocol (RTCP) (RFC 1889)

    Differentiated Services (DiffServ) (RFC 2475)

    Type of service (ToS) (RFC 791, 1349)

    VLAN tagging 802.1p/Q: Layer 2 quality of service (QoS)

    Simple Network Time Protocol (SNTP) (RFC 2030)
    Voice gateway • SIP version 2 (RFC 3261, 3262, 3263, 3264)
    • SPCP with the Cisco Unified Communications 500 Series
    • SIP proxy redundancy: dynamic via DNS SRV, A records
    • Reregistration with primary SIP proxy server
    • SIP support in NAT networks (including STUN)
    • SIPFrag (RFC 3420)
    • Secure (encrypted) calling via SRTP
    • Codec name assignment
    • Voice algorithms:
    • G.711 (A-law and μ-law)
    • G.726 (16/24/32/40 kbps)
    • G.729 A
    • G.722
    • Dynamic payload support
    • Adjustable audio frames per packet
    • Dual-tone multifrequency (DTMF), in-band and out-of-band (RFC 2833) (SIP INFO)
    • Flexible dial plan support with interdigit timers
    • IP address/URI dialing support
    • Call progress tone generation
    • Jitter buffer: adaptive
    • Frame loss concealment
    • Comfort Noise Generation (CNG)
    • Voice activity detection (VAD) with silence suppression
    • Attenuation/gain adjustments
    • VMWI - Voicemail Waiting Indicator, via NOTIFY, SUBSCRIBE
    • Caller ID support (name and number)
    • Third-party call control (RFC 3725)
    Administration and Maintenance Integrated web server provides web-based administration and configuration
    Telephone keypad configuration via display menu/navigation
    Automated provisioning and upgrade via HTTPS, HTTP, TFTP
    Asynchronous notification of upgrade availability via NOTIFY
    Nonintrusive in-service upgrades
    Report generation and event logging
    Statistics transmitted in BYE message
    Syslog and debug server records: configurable per line
    Physical Interfaces Two 10/100BASE-T RJ-45 Ethernet ports (IEEE 802.3)
    Handset: RJ-9 connector
    Built-in speakerphone and microphone
    Headset 2.5mm jack
    Power Supply Power supply is optional and is purchased separately
    DC output voltage: +5 VDC at 2.0A maximum
    Switching power adapter: 100-240V 50-60 Hz AC input
    Indicators Speakerphone on/off button with LED
    Headset on/off button with LED
    Mute button with LED
    Message waiting LED
    Operating Temperature 32 to 104ºF (0 to 40ºC)
    Storage Temperature -4 to 158ºF (-20 to 70ºC)
    Operating Humidity 5 to 95% noncondensing
    Storage Humidity 5 to 95% noncondensing
    Dimension (DxWxH) 1.73 x 8.42 x 8.35" (4.4 x 21.4 x 21.2 cm)
    Weight 2.0 lb (0.9 kg)
    Packaging Info
    Package Weight 2.65 lb
    Box Dimensions (LxWxH) 14.5 x 11.2 x 2.4"
    The user manual for the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G can be downloaded in .pdf format if it did not come with your new telephones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco telephoness, where you can use our link to download the user manual for the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G.

    The user manual lists all of the functions of the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G, all the basic and advanced features and tells you how to use the telephones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco SPA502G 1-Line IP Phone with Display, PoE and PC SPA502G. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Telephones.
