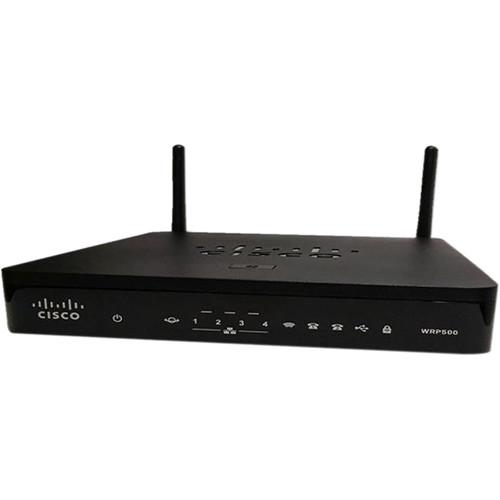

The multi-functional WRP500-A-K9 Wireless-AC Broadband Router from Cisco doesn't just support broadband connectivity, it is also capable of supporting VoIP phones as it comes equipped with two phone ports. Additionally, the WRP500 is great for bandwidth intensive applications such as transferring large files, gaming, streaming HD content, and more. Concurrent dual-band support means this router operates on both the 2.4 GHz and 5 GHz frequencies and supports 802.11a/b/g/n/ac networking standards for ultra-fast Wi-Fi performance.
If a wired Internet solution is what you need this Cisco router comes equipped with four, full-duplex, Gigabit Ethernet ports perfect for connecting computers, smart TVs, and other Ethernet enabled devices to your network. You can even connect additional hubs and switches to the WRP500 to expand the reach of your network.
Another unique feature of the WRP500 is the ability to connect USB compatible broadband modems to the devices USB port. Once connected, the router acts as your own personal hotspot making your connection available to multiple Wi-Fi enabled devices.
If you own a Cisco wireless routers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco WRP500-A-K9 Wireless-AC Broadband Router WRP500-A-K9 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco WRP500-A-K9 Wireless-AC Broadband Router WRP500-A-K9:
Specifications
Hardware
1 x WAN 10/100/1000BASE-T Gigabit Ethernet port 4 x LAN 10/100/1000BASE-T Gigabit Ethernet ports 2 x RJ-11 foreign-exchange-station (FXS) phone ports for analog circuit telephone devices Concurrent dual-band 802.11ac/n/b/g wireless access point supporting both voice and data applications 1 x USB 2.0 port (support for 3G and 4G mobile broadband modems, available separately) Reset button to restore factory defaults LEDs: Power, Internet, Ethernet, Wireless, Phone(s), Wi-Fi Protected Setup (WPS), and USB Power: External, 12 VDC, and 1.67A (full-range switching power adapter) WPS button
Software
Static and dynamic routing (Routing Information Protocol Versions1 and [RIPv1 and v2, respectively]) Auto-failover and recovery of Ethernet WAN connection enabled with USB mobile broadband modem IP Multicast pass-through and IP Multicast support through Network Address Translation (NAT) Denial-of-service (DoS) prevention (ping of death, SYN flood, and IP spoofing) Web-based configuration VPN pass-through with IP Security (IPsec), Layer 2 Tunneling Protocol (L2TP), and Point-to-Point Tunneling Protocol (PPTP) IPsec VPN tunneling Event logging Dynamic Host Configuration Protocol (DHCP) server Access control lists (ACLs) Universal Plug and Play (UPnP) Password-protected configuration or management sessions for web access Remote management (Session Initiation Protocol [SIP] SUBSCRIBE and NOTIFY messages; use NOTIFY message to reset the box remotely) and remote web management Internet Group Management Protocol (IGMP) Multicast and IGMP Proxy (Versions 1, 2, and 3) support 802.1p prioritization QoS support Differentiated Services (DiffServ) and type-of-service (ToS) classification Network edge (demilitarized zone [DMZ]) hosting Wi-Fi Protected Access (WPA) and WPA Version 2 (WPA2) Wired Equivalent Privacy (WEP) (64- and 128-bit) Wi-Fi Multimedia (WMM) Dual SSIDs (8 SSIDs) and SSID broadcast disable and enable
Voice
SIP v2 and RFCs 3261, 3262, 3263, and 3264 Sending SIP messages through User Datagram Protocol (UDP)/TCP and transparent LAN service (TLS) G.711a, G.711u, and G.729 codecs Simple traversal of UDP through NAT (Serial Tunnel [STUN], RFC 3489) Session Description Protocol (SDP), RFC 2327 Real-Time Transport Protocol (RTP) over UDP and Secure RTP (SRTP) Three-way conferencing Remote firmware upgrade through the browser Dual-Tone Multi Frequency (DTMF) tone detection and generation Voice activity detection (VAD) Silence suppression Comfort noise generation (CNG) Caller ID generation and detecting (frequency shift keying [FSK] and DTMF) Media loopback SIP Transport Layer Security (TLS) SIP channels to support both UDP and TCP transport Support for two simultaneous T.38 or G.729 calls T.38 fax relay, including V.17, V.21, V.27ter, and V.29, and fax pass-through (pulse code modulation [PCM})
Minimum Requirements
High-speed Internet connection (Ethernet WAN and USB mobile network are supported) Activated VoIP service
Data Networking
MAC address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) Domain Name System (DNS) A record (RFC 1706) and Domain Name System Server (SRV) record (RFC 2782) DHCP client (RFC 2131) DHCP server (RFC 2131) Point-to-Point Protocol over Ethernet (PPPoE) client (RFC 2516) Internet Control Message Protocol (ICMP) (RFC 792) TCP (RFC 793) User Datagram Protocol (UDP) (RFC 768) RTP (RFCs 1889 and 1890) Trivial File Transfer Protocol (TFTP) HTTP NAT (RFC 1631) Session Description Protocol (SDP) Simple Network Time Protocol (SNTP) (RFC 2030) Type of service (ToS) (RFCs 791 and 1349) QoS: Packet prioritization by type MAC address cloning Port forwarding IP Multicast; IGMP Versions 1, 2, and 3; and IGMP proxy
Voice Specifications
Voice algorithms G.711 (a-law and mu-law) G.729 AB Call forwarding: No answer, busy, and unconditional Support for two simultaneous calls SIP TLS Call transfer Call waiting, call hold, and call retrieve Three-way conferencing Caller ID number and name (primary-line and on-call waiting) Caller ID block (prevents sending out the caller ID) Anonymous call blocking Distinctive ringing Do not disturb setting Call back on busy Call return Emergency call support Dial plan Speed dial In-band and SIP-INFO DTMF translation
Provisioning
Web browser administration and configuration through integral web server Telephone keypad configuration with interactive voice prompts Automated provisioning and upgrade through HTTP, TFTP, and Secure HTTP (HTTPS) Nonintrusive in-service upgrades Report generation and event logging Syslog and debug server records Per-line and purpose-configurable syslog and debug options Simple Network Management Protocol Versions 1 and 2c (SNMPv1 and v2c) (RFCs 1157 and 2011-2013) Full compliance with DSL Forum TR-069 Remote Management TR104 support: Voice provisioning
Physical Interfaces
1 x WAN 10/100/1000BASE-T RJ-45 Ethernet port 4 x LAN 10/100/1000BASE-T RJ-45 Ethernet ports 2 x RJ-11 FXS phone ports for analog circuit telephone device (tip and ring) 1 x USB 2.0 port (support for mobile broadband modem, available separately)
Buttons
Reset and WPS
Subscriber Line Interface Circuit
Ring voltage: 40 to 90 Vpk Ring frequency: 20 to 25 Hz Ring waveform: Trapezoidal with 1.2 to 1.6 crest factor Maximum ringer load: 5 ringer equivalence numbers (RENs) On- and off-hook characteristics: On-hook voltage (tip/ring): -46 to -56 V Off-hook current: 18 to 25 mA Terminating impedance: 600-ohm resistive 270-ohm + 750 ohm/150 nF complex impedance Frequency response: 300 to 3400 Hz
Regulatory Compliance
FCC (Part 15 Class B), CE, ICES-003, and RoHS
Channel
Wi-Fi Channel Support -2.400 to 2.4835 GHz; 11 (1, 2, 3, 4, 5, 6, 7, 8, 9, 10, and 11) -5.150 to 5.250 GHz; 4 (36, 40, 44, and 48) -5.725 to 5.850 GHz; 5 (149, 153, 157, 161, and 165)
Antennas
2 x Fixed antennas
Antenna Gain
2 dBi
UPnP Support
No
Power Supply
Switching type (100-240 V) automatic DC input voltage: 12 VDC at 1.67 A maximum Power consumption: 7.9 W (average) Power adapter: 100-240 V 50-60 Hz (26-34 VA) AC input, 4.9 ft (1.5 m) cord
LEDs
Power, Ethernet, Wireless, Phone 1, Phone 2, Internet, and WPS 1 x WAN port link/activity LED, green color 1 x USB status LED, green color
Security
Password-protected configuration for web access URL filtering and keyword, Java, ActiveX, proxy, and cookie blocking VPN pass-through for IPsec, PPTP, and L2TP protocols 64- and 128-bit Wired Equivalent Privacy (WEP with pass-phrase WEP key generation SSID broadcast disable Access restriction by MAC and IP addresses WPS, WPA, and WPA2 64 and 128 bit security keys
Power
External, switching 12 VDC 1.67 A
Certification
FCC, CE, CB,IC, UL Wi-Fi (802.11a/b/g/n/ac, WPA2, WMM, WMM Power Save, and WPS2.0)
Temperature & Humidity
Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -22 to 140°F / -30 to 60°C Storage Humidity: 5 to 95% non-condensing
