User manual cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL

Operating instructions and pdf manual for use - cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL User manual, User manual cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL, cocktailaudio, X40, DSD, DXD, Audio, DAC, CD,


User manual for cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL

cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL
  • Manufacturer: cocktailaudio
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Home Audio Components - Digital Music Players
  • Safety instructions
  • Startup and operation of the digital music players
  • Tips for setting up your cocktailaudio
  • Settings and expert assistance
  • Contact cocktailaudio service
  • Troubleshooting
  • Warranty information

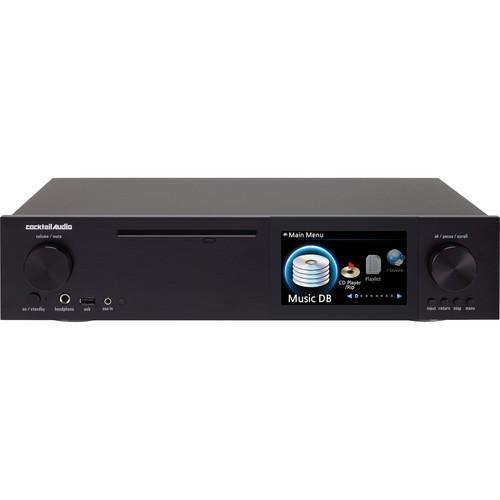

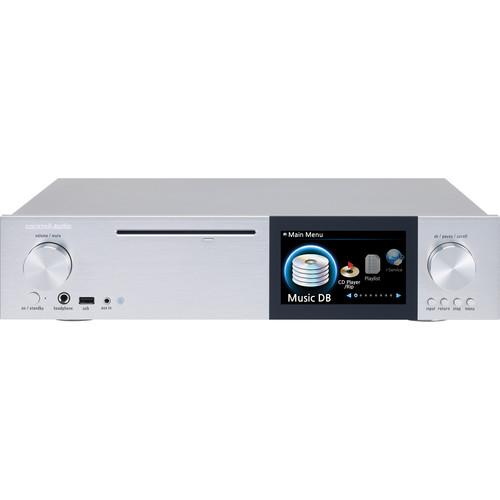

cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL
Click to enlarge image

We recommend checking out our discussion threads on the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL, which address similar problems with connecting and setting up Digital Music Players cocktailaudio.



User manual for the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL

The user manual for the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL provides necessary instructions for the proper use of the product TVs & Entertainment - Home Audio Components - Digital Music Players.

The black cocktailaudio X40 DSD and DXD Audio DAC and CD Player with Hard Drive Recording will allow you to digitally store your entire music collection at up to a 24 bit / 192 kHz sample rate. It has the ES9018K2M Sabre³² Reference DAC built-in for converting digital and analog signals. For drive storage, it supports up to a 3.5" SATA hard disk or a 2.5" hard disk or SSD, and includes a removable drive tray.
If you own a cocktailaudio digital music players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL:
Specifications
    Chassis Material Metal, aluminum front
    Host Platform CPU: Embedded 700 MHz MIPS
    Memory: 4 GB, DDR2 800 MHz
    Tray Type Front loading
    Compatible Discs CD, CD-DA, CD-R, CD-RW, DVD-R, DVD-RW
    Supported Codecs DSD64 (2.8224MHz), DSD128 (5.6448MHz), DXD (24Bit/352.8KHz), up to 32Bit/384KHz PCM signal including HD FLAC (24Bit/192KHz), HD WAV (24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS
    Display 5.0" (12.7 cm) front TFT LCD (800 x 480)
    Video output via HDMI
    OSD Languages English, German, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, Russian, Danish, Korean
    Interface Remote control
    Computer
    iOS & Android devices with customized Web Interface (WUI) or various free UPnP tablet & smartphone apps
    Tuner FM radio: 87.5 - 108 MHz
    A/D Converter Yes
    D/A Converter Yes
    Output Sample Rates Up to 24 bit / 192 kHz
    Input Connectors (Analog) 1 x RCA stereo input, 2 V RMS
    1 x ⅛" (3.5 mm) jack, 0.8 V RMS
    Output Connectors (Analog) Balanced (Pre-out): AES/EBU XLR, Dynamic Range -120 dB THD+N (max 4.5 V RMS, stereo), 127 dB DNR
    Unbalanced (Pre-out): RCA L/R, Dynamic Range -120 dB THD+N (Max 2 V RMS, stereo, 127 dB DNR
    Headphone out: ¼" (6.4 mm) jack, 500 mW + 500 mW @ 1 Khz, 32 Ohm, 0.1% THD
    Input Connectors (Digital) 1 x TOSLINK optical
    1 x Digital coaxial
    Output Connectors (Digital) 1 x TOSLINK optical, Volume controllable
    1 x Digital coaxial, 75 Ohm RCA
    1 x AES/EBU XLR, 110 Ohm
    1 x HDMI video out for GUI and photo slide show
    Connectivity 1 x USB Host port, front
    2 x USB Host port, rear
    1 x Ethernet (10/100Mbps) LAN
    Wireless available with optional 801.11b/g/n Wi-Fi USB dongle
    Network Protocol Support UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server
    Internet Radio Supported Reciva Internet Radio
    Drive Compatibility HDD: 2.5" (6.3 cm) or 3.5" (8.9 cm) SATA, up to 4 TB
    SSD: 2.5" (6.3 cm) SATA, up to 4 TB
    Removable storage tray included.
    Certificates CE, FCC, EMI
    Power Supplies Audio Power Supply: Toroidal transformer 75 W
    Standby Power Supply: 5 V / 1 A SMPS
    Power Requirement 110 - 120 VAC, 50/60 Hz
    Dimensions (W x D x H) Without Foot: 17.1 x 12.8 x 3.5" (435.0 x 325.0 x 88.0 mm)
    With Foot: 17.1 x 12.8 x 3.9" (435.0 x 325.0 x 98.5 mm)
    Weight 22.0 lb (10.0 kg)
    The user manual for the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL can be downloaded in .pdf format if it did not come with your new digital music players, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other cocktailaudio users keep a unique electronic library for cocktailaudio digital music playerss, where you can use our link to download the user manual for the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL.

    The user manual lists all of the functions of the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL, all the basic and advanced features and tells you how to use the digital music players. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from cocktailaudio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the cocktailaudio X40 DSD and DXD Audio DAC and CD Player COAUX40BL. User manuals are also available on the cocktailaudio website under TVs & Entertainment - Home Audio Components - Digital Music Players.
