User manual Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS

Operating instructions and pdf manual for use - Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS User manual, User manual Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS, Cognisys, StackShot, 3X, Macro, Rail, Package, ST3X-100-PKGUS,


User manual for Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS

Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS
  • Manufacturer: Cognisys
  • Basic description and contents of package
  • Product classification: Photography - Tripods & Support - Panoramic & Time Lapse Heads
  • Safety instructions
  • Startup and operation of the panoramic & time lapse heads
  • Tips for setting up your Cognisys
  • Settings and expert assistance
  • Contact Cognisys service
  • Troubleshooting
  • Warranty information
  • Price: 779 USD
We recommend checking out our discussion threads on the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS, which address similar problems with connecting and setting up Panoramic & Time Lapse Heads Cognisys.



User manual for the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS

The user manual for the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS provides necessary instructions for the proper use of the product Photography - Tripods & Support - Panoramic & Time Lapse Heads.

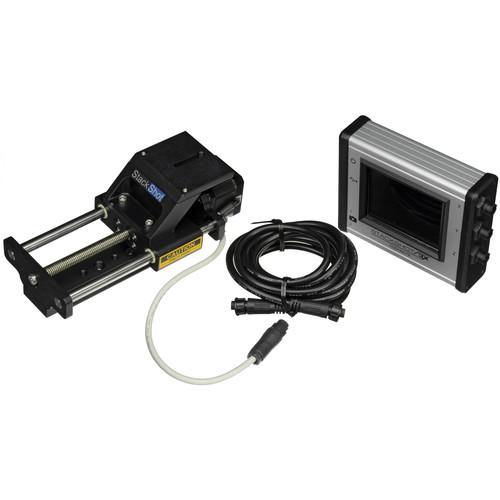

Shoot panoramas, motion control, and focus-stacked images using the StackShot 3X Macro Rail Package. This package includes the StackShot 3X three-axis controller and a 100 mm Macro Rail. The rail is an automated system for focus stacking image capture. It can be configured in step sizes from the total rail length of 100 mm down to just 2µm.

The StackShot3 controller features three axes of motor control to capture real-time motion control and time-lapse video. It can also automate image capture to make virtual objects. Built-in Wi-Fi allows you to connect the controller to a computer, tablet, or camera. An RCA input/output connector is backwards compatible with the original StackShot, and works with Cognisys shutter releases and switches, and a 3.5mm connection allows for the use of a variety of other shutter release cables. The controller is powered by an included AC adapter or an optional Li-ion battery. It is compatible with both Mac and Windows. A separately-purchased camera-specific shutter release cable is required to link the camera and the StackShot.
If you own a Cognisys panoramic & time lapse heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS:
Specifications
    • StackShot 3X Controller
      Connections 1 x USB
      1 x RCA input/output
      1 x 3.5mm output
      3 x Motor outputs
      Power Requirements 12 VDC
      Operating Temperature -4 to 158°F (-20 to 70°C)
      Dimensions 4.7 x 4.1 x 1.2" (120 x 103 x 31 mm)
      Weight 12 oz (0.34 kg)
      Packaging Info
      Box Dimensions (LxWxH) 11.0 x 10.3 x 3.2"
    • StackShot Macro Rail
      Load Capacity 10 lb (4.5 kg)
      Total Length 8" (200 mm)
      Travel 4" (100 mm)
      Mount 1/4"-20 threads
      3/8"-16 threads
      Arca-type compatible rail
      Dimensions 7.9 x 3.4 x 3.1" (200 x 86 x 80 mm)
      Weight 4.4 lb (2.0 kg)
    The user manual for the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS can be downloaded in .pdf format if it did not come with your new panoramic & time lapse heads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cognisys users keep a unique electronic library for Cognisys panoramic & time lapse headss, where you can use our link to download the user manual for the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS.

    The user manual lists all of the functions of the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS, all the basic and advanced features and tells you how to use the panoramic & time lapse heads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cognisys service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cognisys StackShot 3X Macro Rail Package ST3X-100-PKGUS. User manuals are also available on the Cognisys website under Photography - Tripods & Support - Panoramic & Time Lapse Heads.
