User manual for Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000

Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000
  • Manufacturer: Comprehensive
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Bulk Cable
  • Safety instructions
  • Startup and operation of the bulk cable
  • Tips for setting up your Comprehensive
  • Settings and expert assistance
  • Contact Comprehensive service
  • Troubleshooting
  • Warranty information
  • Price: 199 USD

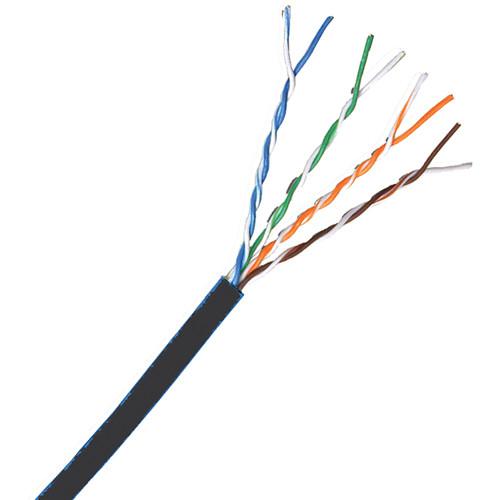

Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000 Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000 Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000
Click to enlarge image

We recommend checking out our discussion threads on the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000, which address similar problems with connecting and setting up Bulk Cable Comprehensive.



User manual for the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000

The user manual for the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

The 1,000’, black CAT5e 350 MHz Shielded LAN Cable from Comprehensive features 4 shielded twisted pairs with stranded 24 AWG conductors, and is suitable for installation in high EMI/RFI environments. This 350 MHz cable has a PVC jacket and can be installed in a variety of environments. It is suitable for network wiring in your home, office, or an entire campus. Exceeding CAT5e 100 MHz standards, this LAN cable meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations. The foot-marked cable is packaged in a pull box for easier installation.
If you own a Comprehensive bulk cable and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000:
Specifications
    Conductors 4 x twisted pair, 24 AWG, shielded bare copper solid cable
    Bandwidth Supports voice/data/video distribution applications up to 350 MHz
    Standards Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2
    Conductor DC Resistance 89 Ω/km (maximum)
    Insulation Resistance 100 Ω/km (minimum)
    Outer Diameter 0.24" (6.10 mm)
    UL Rating CMR
    Jacket PVC
    Compliance RoHS
    Electrical Temperature rating: 167°F (75°C)
    Spark test: 2,000 VAC/0.15 sec minimum
    Dielectric strength: AC 750 V/sec minimum
    Insulation resistance: PE: 500 VDC 1500 MW/100 m minimum at 68°F (20°C)
    Capacitance Mutual capacitance: 5.6 nF/100 m, maximum
    Pair to ground Unbalance: 330 pF/100 m, maximum
    DC Resistance: 9.38 Ω/100 m at 68°F (20°C) maximum
    DC Resistance Unbalance: 5%, maximum
    Impedance: 100 ± 15 Ω at 100 to 350 MHz
    Length 1,000' (305 m)
    Weight 27 lb (12 kg)
    Packaging Info
    Package Weight 26.35 lb
    Box Dimensions (LxWxH) 14.3 x 13.7 x 8.2"
    The user manual for the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000 can be downloaded in .pdf format if it did not come with your new bulk cable, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Comprehensive users keep a unique electronic library for Comprehensive bulk cables, where you can use our link to download the user manual for the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000.

    The user manual lists all of the functions of the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000, all the basic and advanced features and tells you how to use the bulk cable. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Comprehensive service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Comprehensive CAT5e 350 MHz Shielded Stranded C5E350SHSTBLK-1000. User manuals are also available on the Comprehensive website under Pro Audio - Installation Sound - Bulk Cable.
