User manual for the Comprehensive Pro AV/IT Series Plenum VGA VGA15P-3R5B-25HRAP
The user manual for the Comprehensive Pro AV/IT Series Plenum VGA VGA15P-3R5B-25HRAP provides
necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - VGA & DVI Breakout Cables.

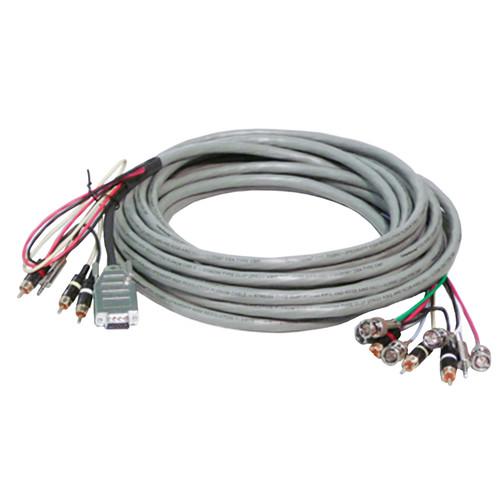

The 25' Pro AV/IT Series Plenum VGA Install Breakout Cable from Comprehensive features a HD15 Male, 3 x RCA, and a Stereo Mini 3.5mm Male connector on one side while 5 x BNC Male, 3 x RCA, and Stereo Mini 3.5mm Male on the other side. The cable is used in most classroom and office installations which typically require whiteboards as well as custom designed wall plates. The cables are built tough to handle the daily abuse most equipment is subject to in a classroom, boardroom or conference room situation.
If you own a Comprehensive vga & dvi breakout cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Comprehensive Pro AV/IT Series Plenum VGA VGA15P-3R5B-25HRAP in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Comprehensive Pro AV/IT Series Plenum VGA VGA15P-3R5B-25HRAP:
Specifications
Connector Type 1
HD15 Male, 3RCA, Stereo Mini 3.5mm Male
Connector Type 2
5BNC Male, 3RCA, Stereo Mini 3.5mm Male
Resolution
2048 x 1536
Gauge
26 AWG
Center Conductor
Tinned Copper
Connector Finish
Nickel
Shielding
Double Shielded, Inner Bare Copper Wrap, 100% Aluminum Mylar Wrap
Cable Length
25' (7.62 m)
Jacket Type
Plenum
Temperature Rating
176°F (80°C)
Voltage
30 V
Weight
4.8 lb (2.1 kg)
