User manual for the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP
The user manual for the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

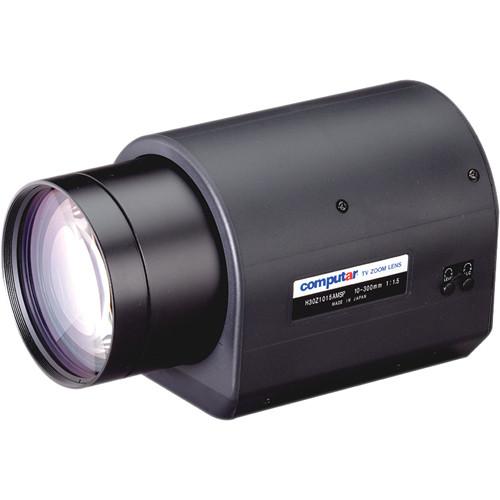

The computar H30Z1015AMSP 1/2" Video Auto-Iris with Spot and Preset Lens (10-300mm) provides remote control of focal length, iris, and focus through the use of a lens controller, for use where variable focal length and remote control are required. This lens is ideal for applications requiring long distance surveillance like parking lots, highways, etc.
|
If you own a computar lenses and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP:
| Focal Length | 10 to 300 mm | | Aperture Ratio | 1:1.5 (maximum) | | Image Format | 6.4 x 4.8 mm (Ø8 mm) | | Operation Range | Iris: F1.5 to 560C
Focus: 7.21' to infinity (2.2 m to infinity)
Zoom: 0.39 to 11.81" (10 to 300 mm) | | Control | Iris: Video auto-iris
Focus / Zoom: Motorized | | Angle of View | 44.0 to 1.55° (D), 35.5 to 1.25° (H), 26.8 to 0.94° (V) | | Supply Voltage | Iris: 8.5 to 16 VDC
Focus / Zoom: 8 VDC | | Current | Iris: 40 mA or less
Focus: 80 mA or less
Zoom: 60 mA or less | | Response Time | Iris: 2 sec approximately
Focus: 8.5 sec approximately
Zoom: 4.5 sec approximately | | Preset Potentiometer | Focus / Zoom: 5 KΩVR | | Light Weighting Method | Adjustable between average and peak (to be set at average at factory) | | Remote Control | Level remote (option) | | Input Signal | Video signal (V. or V.S.) | | Iris | ±15% accurate at video signal level | | Sensitivity Adjustment | 0.5 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: Ø94 mm
Rear: Ø14.8 mm | | Back Focal Length | 15.8 mm | | Flange Back Length | 17.53 mm | | Mount | C-mount | | Filter Size | M100 P = 1 mm | | Screw | Tripod: 1/4-20UNC | | Certifications | CE, RoHS | | Object Dimensions at M.O.D. | At 10 mm: 55.43 x 41.25" (1408 x 1048 mm)
At 300 mm: 1.88 x 1.41" (48 x 36 mm) | | Dimensions (W x H x D) | 4.92 x 5.68 x 9.70" (125 x 144.5 x 246.5 mm) | | Weight | 113.58 oz (3220 g) | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 9.7 x 5.69 x 4.92" | |
The user manual for the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP can be downloaded in .pdf
format if it did not come with your new lenses, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other computar users keep a unique electronic library
for computar lensess,
where you can use our link to download the user manual for the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP.
The user manual lists all of the functions of the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP,
all the basic and advanced features and tells you how to use the lenses.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from computar service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the computar H30Z1015AMSP 1/2" Video Auto-Iris H30Z1015AMSP. User manuals are also
available on the computar website under Surveillance - Surveillance Video - Lenses - Lenses.
