User manual for the computar H60Z1238A-IR 1/2" 60x THRU Vision IR H60Z1238A-IR
The user manual for the computar H60Z1238A-IR 1/2" 60x THRU Vision IR H60Z1238A-IR provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

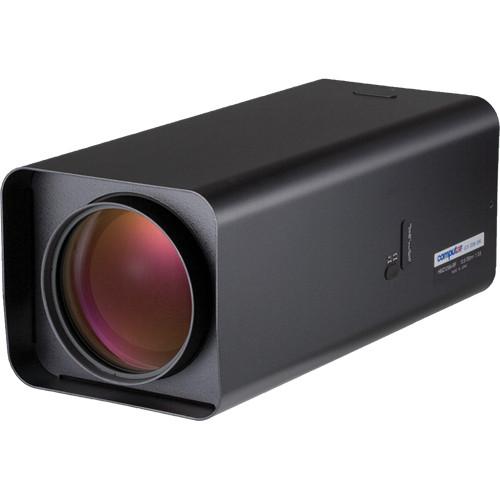

For extreme long-distance surveillance, the THRU Vision Camera can be paired with the computar H60Z1238A-IR 1/2" 60x THRU Vision IR Zoom Lens (25 to 1500mm) to clear obstacles and provide images clearer than the human eye.
|
If you own a computar lenses and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the computar H60Z1238A-IR 1/2" 60x THRU Vision IR H60Z1238A-IR in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the computar H60Z1238A-IR 1/2" 60x THRU Vision IR H60Z1238A-IR:
Focal Length | 12.5 to 750 mm 25 to 1500 mm (with 2x extender) | Aperture Ratio | 1:3.8 (maximum) | Image Format | 6.4 x 4.8 mm (Ø8 mm) | Operation Range | Iris: F3.8 to F3000 Focus: 16.40' to infinity (5 m to infinity) Zoom: 0.49 to 59.05" (12.5 to 1500 mm) | Control | Iris: Video auto-iris / override manual Focus / Zoom: Motorized | Angle of View | 35.5 to 0.62° (D), 28.7 to 0.48° (H), 21.7 to 0.37° (V) | Supply Voltage | Iris: 12 VDC (9 to 15 VDC) Focus / Zoom: 6 / 12 VDC switchable | Current | Iris: 50 mA or less Focus / Zoom: 90 mA or less | Response Time | Iris: 0.5 sec approximately Focus: 6 sec approximately Zoom: 5 sec approximately | Light Weighting Method | Adjustable between average and peak (to be set at average at factory) | Input Signal | Video signal (V. or V.S.) | Iris | ±3.5% at A.P.L 0.5 V | Sensitivity Adjustment | 0.5 to 0.9 Vpp (video signal) | Input Impedance | High impedance 100kΩ | Operating Temperature | 14 to 122°F (-10 to 50°C) | Effective Lens Aperture | Front: Ø98.8 mm Rear: Ø13.6 mm | Back Focal Length | 53.23 mm | Flange Back Length | 17.53 mm | Mount | C-mount | Filter Size | M207 P = 1 mm | Screw | Tripod: 2 x 1/4-20UNC | Certifications | CE | Object Dimensions at M.O.D. | At 12.5 mm: 97.04 x 72.79" (2465 x 1849 mm) At 120 mm: 1.61 x 1.22" (41 x 31 mm) | Dimensions (W x H x D) | 6.06 x 5.39 x 13.93" (154 x 137 x 354 mm) | Weight | 183.42 oz (5200 g) | Package Weight | 11.46 lb | Box Dimensions (LxWxH) | 13.94 x 6.06 x 5.4" | |
