User manual for the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS

The user manual for the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

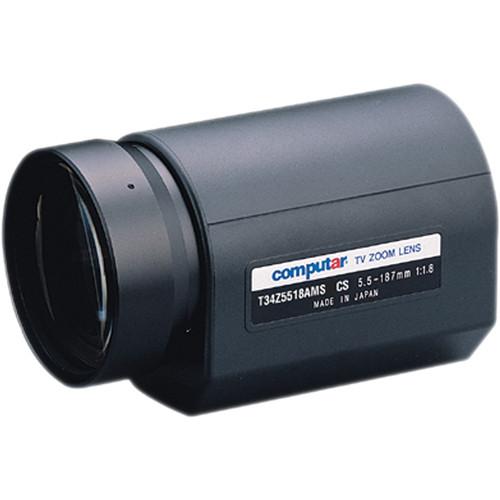

The computar T34Z5518AMS 1/3" Video Auto-Iris Lens with Spot (5.5 to 187mm) allows you to control focal length, iris and focus via a lens controller. It is suitable for applications requiring long distance surveillance such as in parking lots and highways, where variable focal length and remote control are required.
If you own a computar lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS:
Focal Length 5.5 to 187 mm
Aperture Ratio 1:1.8
Image Format 0.19 x 0.14" / 4.8 x 3.6 mm (ø6 mm)
Operation Range Iris: F1.8 to F560C
Focus: 4.9' to infinity (1.5 m to infinity)
Zoom: 0.22 to 7.36" (5.5 to 187 mm)
Control Iris: video auto-iris
Focus/Zoom: Motorized
Object Dimensions at M.O.D. 5.5 mm: 50.87" (129.2 x 95.2 cm) 187 mm: 1.61 x 1.22" (4.1 x 3.1 cm)
Angle of View 57.5 to 1.92° (D), 46.6 to 1.55° (H), 35.2 to 1.17° (V)
Supply Voltage 8.5 to 16 VDC
Current Less than 40 mA
Response Time 2 seconds approximately
Light Weighting Method Adjustable between average - peak (to be set at average at factory)
Remote Control Level remote (option)
Input Signal Video signal (V. or V.S.)
Iris ±15% accurate at video signal level
Sensitivity Adjustment 0.5 to 1.0 Vpp (video signal)
Input Impedance High impedance
Operating Temperature 14 to 122°F (-10 to 50°C)
Effective Lens Aperture Front: ø70 mm
Rear: ø9.1 mm
Back Focal Length 12.7 mm
Flange Back Length 12.5 mm
Mount CS-mount
Filter Size M77 P = 0.75 mm
Tripod Mounting Screw 1/4 - 20UNC
Certifications CE, RoHS
Dimensions 32.28 x 38.35 x 63" (82 x 97.4 x 160 mm)
Weight 40.92 oz (1,160 g)
Packaging Info
Package Weight 2.56 lb
Box Dimensions (LxWxH) 6.3 x 3.83 x 3.23"
The user manual for the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other computar users keep a unique electronic library for computar lensess, where you can use our link to download the user manual for the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS.

The user manual lists all of the functions of the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from computar service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the computar T34Z5518AMS 1/3" Video Auto-Iris Lens T34Z5518AMS. User manuals are also available on the computar website under Surveillance - Surveillance Video - Lenses - Lenses.
