User manual for the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5

The user manual for the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - RF Equipment.

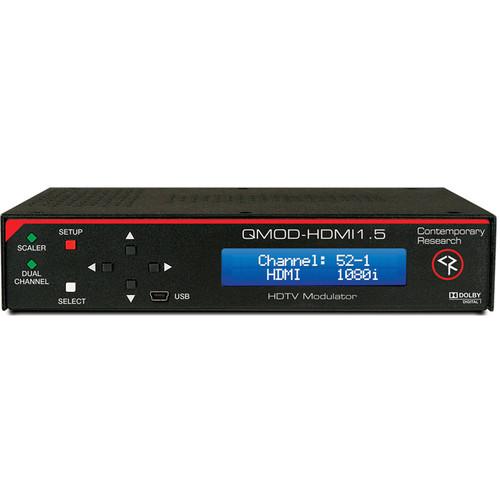

The QMOD-HDMI1.5 HDTV Modulator from Contemporary Research creates a 720p/1080i MPEG-2 stream for broadcasting applications. It accepts stereo, PCM, or pass-through AC-3 audio, and can create two MTS sub-channels for each input, supporting two languages each. Users can upgrade operation for digital signage scaling and dual-channel operation by entering optional upgrade key codes.

This modulator distributes channel over an on-site broadband cable system with adjustable output level to 29dBmV, compatible with all cable format broadband systems. It features up to 270 HD programs, 135 channels per system and delivers a fully active QAM 64/256 digital cable channel. It includes a compact switching power supply PS12 1.5 that easily fits in the plug space on a power strip.
If you own a Contemporary Research rf equipment and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5:
System
Modulation Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
MER 38 dB typical
Front Panel
Set-Up Select and directional buttons for setup menu LCD, 2 lines of 20 white characters each
Back Panel
Power 2.1 mm coaxial jack (inside center conductor positive)
1.1 A maximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS Looped Output 3-pin screw terminal for momentary or latching control
Ethernet RJ-45 GigE Ethernet connector for IP control, IPTV and internal Web page
Video Inputs HDMI: (non-HDCP), up to 1080p
HD15 RGBHV/Component: Input up to 1080p, 59.94/60/50, 29.97/30/25 Hz, component on pins 1 to 3
Composite Video: RCA female (480i), 29.97 Hz, also used for Line 21 captioning data
Audio Inputs 2 x Digital SPDIF Coax RCA, PCM/AC-3 48K sample rate
2 x 3.5mm stereo analog inputs
Inputs assignable to follow video inputs
RF Female, 75Ω impedance
Active channels 2 to 135 (48 to 860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 kHz resolution, ±30 ppm accuracy, ±35 ppm stability
29 dB typical output power, attenuated in 5 steps, approximately 4 dB
Compression
Profile MPEG2: MP at HL for HD, MP at ML for SD
1080i, 720p, 480p, and 480i resolution
Up to 2 programs in MPEG2 transport stream for QAM and IPTV
Video Encoding Bitrate: 10 to 25 Mb/s in half-step settings
Pass Through AC-3 (pass-through or stereo) or MPEG1, layer 2 audio
MTS Dual-language capability
Physical
Power Supply 12 VDC, 1.5 A, 110/220 V, 50/60 Hz
Operating Temperature 32 to 122°F (0 to 50°C)
Dimensions (W x H x D) 8.5 x 1.7 (1RU) x 6.0" (215.9 x 43.1 (1RU) x 152.4 mm)
Weight 1.5 lb (0.6 kg)
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 15.1 x 10.4 x 3.2"
The user manual for the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5 can be downloaded in .pdf format if it did not come with your new rf equipment, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Contemporary Research users keep a unique electronic library for Contemporary Research rf equipments, where you can use our link to download the user manual for the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5.

The user manual lists all of the functions of the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5, all the basic and advanced features and tells you how to use the rf equipment. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Contemporary Research service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Contemporary Research QMOD-HDMI1.5 HDTV Modulator QMOD-HDMI1.5. User manuals are also available on the Contemporary Research website under Professional Video - Signal Processing & Distribution - RF Equipment.
