User manual for the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1
The user manual for the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Desktop Computer Cases.

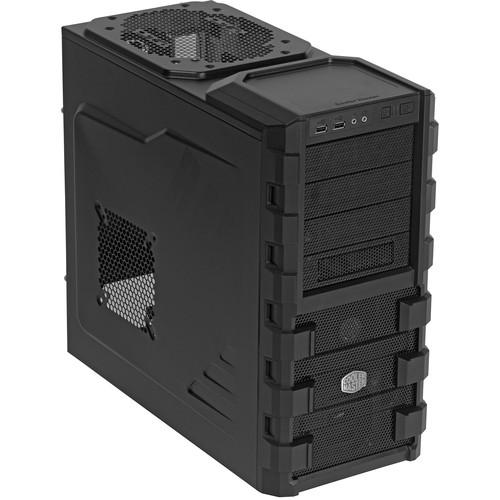

The HAF 912 Mid Tower Desktop Case from Cooler Master offers ample space to house and cool all your PC components. Overheating can cause computer parts to fail, so Cooler Master has built two case fans into the case. In addition, the housing has space to accommodate four more. This case supports a micro-ATX or ATX sized motherboard. The interior offers different ways to house all your PC components. It can be configured to support PCI cards up to 15.4" long instead of 10.6", or it can hold seven 3.5" drives instead of six. The plastic and mesh front bezel features a design with rugged looks and the case itself is made from steel that will not easily bend when installing computer parts.
Components within the case generate heat and to cool the system, cool air must be drawn in from the front and side. Hot air is then pulled out from the back and top. In the front of the case one fan is installed to pull cool air in, and a second fan installed in the rear to draw out hot air. Depending on how many drives and graphic cards are installed, optional fans may be installed in the front and to the side to directly cool additional devices. Space for two optional top fans is also available. The case features dust filters in the front and bottom to help prevent dust from getting in. To allow proper airflow, Cooler Master provides space to tuck cables away and has notches to tie cables closer to the sides. This case also supports water-cooling technologies by providing two water-cooling outlets and a retaining hole for the radiator cables.
This case supports multiple 5.25" and 3.5" or 2.5" devices. Four 5.25" drive bays can house optical drives or card readers, and one can be converted to hold a 3.5" drive. Six 3.5" storage drives can be added, and two can be converted to hold 2.5" drives. Two drive bays are dedicated to storing 2.5" drives. In addition, the case features one vertical expansion slot and seven horizontal ones for supporting PCI cards.
|
If you own a Cooler Master desktop computer cases and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1:
| Materials | Case Body: Steel
Front bezel: Plastic and mesh | | Motherboard Form Factor | ATX
Micro-ATX | | Drive Bays | 4 x 5.25" (one could be converted to 3.5" bay)
6 x 3.5" (internal)
4 x 2.5" (two converted from 3.5" bay) | | I/O Connectors | 2 x USB 2.0
1 x eSATA
1 x Audio
1 x Mic | | Expansion Slots | 7 + 1 | | Cooling System | Top
2 x 120 mm fan (optional)
or
1 x 200 mm fan (optional)
Front
2 x 120 mm fan (one installed, 1200 rpm, 19 dBA)
or
1 x 200 mm fan (optional)
Rear
1 x 120 mm fan (installed, 1200 rpm, 17 dBA)
Side
1 x 120/140 mm fan (optional) | | Power Supply Type | Bottom mounted
ATX PS2 / EPS 12V | | Maximum Compatibility | GPU Card Length
10.6" / 270.0 mm
CPU Cooler Height
6.9" / 175.0 mm | | Dimensions | 9.1 x 18.9 x 19.5" / 230.0 x 480.0 x 496.0 mm with stand | | Weight | 18.6 lb / 8.5 kg | | Package Weight | 21.4 lb | | Box Dimensions (LxWxH) | 22.2 x 20.6 x 11.1" | |
The user manual for the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1 can be downloaded in .pdf
format if it did not come with your new desktop computer cases, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cooler Master users keep a unique electronic library
for Cooler Master desktop computer casess,
where you can use our link to download the user manual for the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1.
The user manual lists all of the functions of the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1,
all the basic and advanced features and tells you how to use the desktop computer cases.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cooler Master service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cooler Master HAF 912 Mid Tower Desktop Case RC-912-KKN1. User manuals are also
available on the Cooler Master website under Computers & Solutions - Computer Components - Desktop Computer Cases.
