User manual Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW

Operating instructions and pdf manual for use - Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW User manual, User manual Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW, Corsair, Graphite, Series, 230T, Compact, Mid-Tower,


User manual for Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW
  • Manufacturer: Corsair
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Desktop Computer Cases
  • Safety instructions
  • Startup and operation of the desktop computer cases
  • Tips for setting up your Corsair
  • Settings and expert assistance
  • Contact Corsair service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
We recommend checking out our discussion threads on the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW, which address similar problems with connecting and setting up Desktop Computer Cases Corsair.



User manual for the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW

The user manual for the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Desktop Computer Cases.

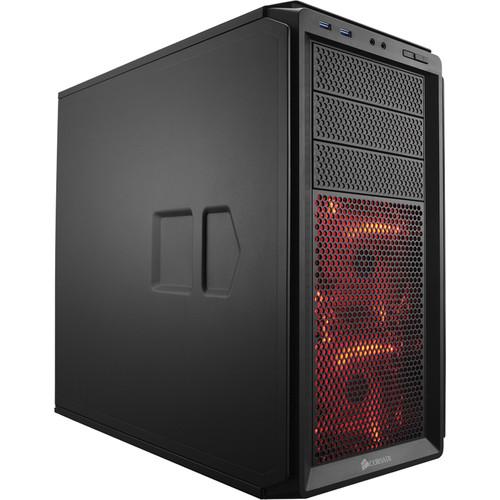

The black Graphite Series 230T Compact Mid-Tower Case from Corsair is equipped with dual 120mm front intake fans with LED lighting, and a rear 120mm exhaust fan. This case supports mini ITX, micro ATX, or ATX motherboard and has seven PCIe expansion slots. The seven PCIe slots are tool-free, so swaps and upgrades are quicker. You can install up to four 3.5" and four 2.5" drives (tool-free), simultaneously. It is equipped with two USB 3.0 ports, one headphone and microphone port for connectivity.
If you own a Corsair desktop computer cases and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW:
Specifications
    Form Factor Mid-tower
    Material Steel
    Motherboard Support Mini ITX
    Micro ATX
    ATX
    Expansion Slots 7 x PCIe slots with thumbscrews and room for 12.5" (320.0 mm) GPUs
    Drive Bays 3 x 5.25"
    4 x 3.5"
    4 x 2.5"
    Maximum GPU Length 14.1" (360.0 mm)
    Maximum CPU Cooler Height 6.4" (165.0 mm)
    Maximum PSU Length 7.8" (200.0 mm)
    Power Supply ATX (not included)
    External Connections 2 x USB 3.0 ports
    1 x Headphone port
    1 x Microphone port
    Fans (Included) Front: 2 x 4.7" (120.0 mm)
    Rear: 1 x 4.7" (120.0 mm)
    Fan Mount Locations Front: 2 x 4.7" (120.0 mm)
    Top: 2 x 4.7"/5.5" (120.0 mm/140.0 mm)
    Rear: 1 x 4.7" (120.0 mm)
    Bottom: 1 x 4.7"/5.5" (120.0 mm/140.0 mm)
    Radiator Mount Locations Top: 9.4"/11.0" (240.0 mm/280.0 mm)
    Rear: 4.7" (120.0 mm)
    Cutouts Cable routing
    CPU cooler backplate motherboard
    Compatibility Corsair Liquid Coolers: H55, H60, H75, and H80i
    Dimensions 22.2 x 10.6 x 19.2" (565.0 x 270.0 x 490.0 mm)
    Weight 13.33 lb (6.05 kg)
    Packaging Info
    Package Weight 16.7 lb
    Box Dimensions (LxWxH) 22.0 x 19.0 x 10.0"
    The user manual for the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW can be downloaded in .pdf format if it did not come with your new desktop computer cases, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Corsair users keep a unique electronic library for Corsair desktop computer casess, where you can use our link to download the user manual for the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW.

    The user manual lists all of the functions of the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW, all the basic and advanced features and tells you how to use the desktop computer cases. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Corsair service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Corsair Graphite Series 230T Compact Mid-Tower CC-9011036-WW. User manuals are also available on the Corsair website under Computers & Solutions - Computer Components - Desktop Computer Cases.
