User manual Crest Audio CC 1800 Power Amplifier (2RU) 01000800

Operating instructions and pdf manual for use - Crest Audio CC 1800 Power Amplifier (2RU) 01000800 User manual, User manual Crest Audio CC 1800 Power Amplifier (2RU) 01000800, Crest, Audio, CC, 1800, Power, Amplifier, 2RU, 01000800,


User manual for Crest Audio CC 1800 Power Amplifier (2RU) 01000800

Crest Audio CC 1800 Power Amplifier (2RU) 01000800
  • Manufacturer: Crest Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Crest Audio
  • Settings and expert assistance
  • Contact Crest Audio service
  • Troubleshooting
  • Warranty information
  • Price: 595 USD
We recommend checking out our discussion threads on the Crest Audio CC 1800 Power Amplifier (2RU) 01000800, which address similar problems with connecting and setting up Power Amplifiers Crest Audio.



User manual for the Crest Audio CC 1800 Power Amplifier (2RU) 01000800

The user manual for the Crest Audio CC 1800 Power Amplifier (2RU) 01000800 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

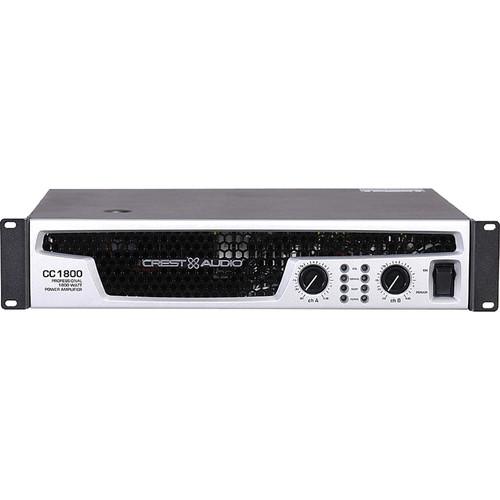

The 2RU CC 1800 Power Amplifier from Crest Audio is a rackmountable power amplifier which incorporates tunnel-cooled heat sinks, variable-speed DC fans, and protection circuitry for efficiency into difficult loads and power conditions. The CC 1800 features 16 devices per channel, a switched-rail class H output stage, and triple-compound design to provide low distortion and thermal stability. The amplifier utilizes a linear power supply and delivers stable high power output for running main systems, monitors, and subwoofers.
If you own a Crest Audio power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Crest Audio CC 1800 Power Amplifier (2RU) 01000800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Crest Audio CC 1800 Power Amplifier (2RU) 01000800:
Power Rating Stereo Power:
@ 8 Ω: 450 W
@ 4 Ω: 700 W
@ 2 Ω: 900 W
Bridged Mono Power:
@ 4 Ω: 1,850 W
Output Voltage RMS:
73 V
Frequency Response 10 Hz - 100 kHz; +0, -2 dB at 1 W
Power Bandwidth 10 Hz - 35 kHz; +0, -3 dB at rated 4 Ω power
Damping Factor 150 : 1 @ 20 Hz to 1 kHz @ 8 Ω
Gain Selectable between x 40 (32 dB) and x 20 (26 dB)
Input Sensitivity (x40) 1.32 V ± 3% for 1 kHz, 2 Ω rated power
Input Impedance 15 kΩ balanced
Hum and Noise A-weighted @ rated power 8 Ω -106 dB
Crosstalk -55 dB @ 1 kHz @ rated power 8 Ω
Cooling Back to front via single variable speed fan
Current Draw @ 120 VAC
1/8 Power:
At 8 Ω: 400 W 3.4 A
At 4 Ω: 685 W 5.71 A
At 2 Ω: 1,000 W 8.34 A
1/3 Power:
At 8 Ω: 1,000 W 8.34 A
At 4 Ω: 1,650 W 13.75 A
At 2 Ω: 2,340 W 19.5 A
Connectors 1 x XLR female, input
1 x Speakon, output
1 x 5-way binding post, output
Controls Front Panel:
2 x recessed stepped attenuator
Circuit breaker/power switch
Rear Panel:
1 x mode select
1 x gain select
Indicators LED, Signal presence
LED, Active clip limiting
LED, Active status
LED, Temperature
Dimensions 3.5 x 19.0 x 14.9" (8.9 x 48.3 x 37.8 cm)
Weight 32.6 lb (14.8 kg)
The user manual for the Crest Audio CC 1800 Power Amplifier (2RU) 01000800 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Crest Audio users keep a unique electronic library for Crest Audio power amplifierss, where you can use our link to download the user manual for the Crest Audio CC 1800 Power Amplifier (2RU) 01000800.

The user manual lists all of the functions of the Crest Audio CC 1800 Power Amplifier (2RU) 01000800, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Crest Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Crest Audio CC 1800 Power Amplifier (2RU) 01000800. User manuals are also available on the Crest Audio website under Pro Audio - Live Sound - Power Amplifiers.
