User manual for Crown Audio XTi 2002 Power Amplifier XTI 2002
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Crown Audio
- Basic description and contents of package
- Product classification: Pro Audio - Installation Sound - Standard Amplifiers
- Safety instructions
- Startup and operation of the standard amplifiers
- Tips for setting up your Crown Audio
- Settings and expert assistance
- Contact Crown Audio service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the Crown Audio XTi 2002 Power Amplifier XTI 2002,
which address similar problems with connecting and setting up Standard Amplifiers Crown Audio.
|
User manual for the Crown Audio XTi 2002 Power Amplifier XTI 2002
The user manual for the Crown Audio XTi 2002 Power Amplifier XTI 2002 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Standard Amplifiers.

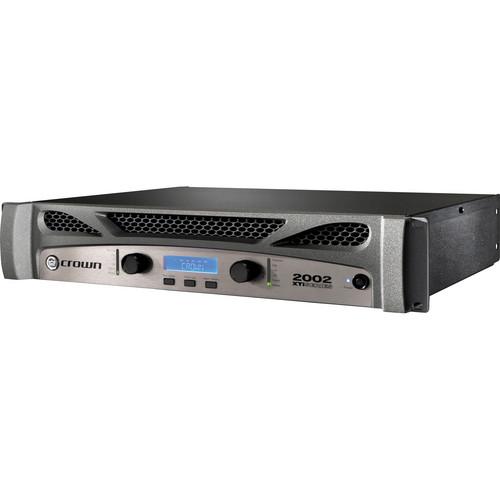

The Crown XTi 2002 Power Amplifier delivers up to 475W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 2002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.
|
If you own a Crown Audio standard amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Crown Audio XTi 2002 Power Amplifier XTI 2002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Crown Audio XTi 2002 Power Amplifier XTI 2002:
| Output Power | 1000W @ 2 Ohms Stereo (per Channel)
800W @ 4 Ohms Stereo (per Channel)
475W @ 8 Ohms Stereo (per Channel)
2000W @ 4 Ohms Bridged-Mono
1600W @ 8 Ohms Bridged-Mono | | Damping Factor | 20Hz to 1kHz > 500 | | Input Sensitivity | 1.4Vrms | | Input Impedance | 20k Ohms (Balanced)
10 kOhms (Unbalanced) | | Gain | 32.9dB @ 1kHz, 8 Ohm Rated Output | | Frequency Response | (at 1 watt, 20Hz - 20kHz) +0dB, -1dB | | Signal-to-Noise Ratio | XTi1002/2002/4002: 100dB (A weighted)
XTi6002: 103dB (A weighted) | | Total Harmonic Distortion (THD) | < 0.5% | | Connections | Input Connectors: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.Output Connectors: Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
HiQnet USB Connector: Type B, connects to HiQnet network. | | Controls Front Panel | Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifierSel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status | | Indicators | Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditionsPower Indicator: Blue LED illuminates when the amplifier has been turned on and has power | | Cooling | Proportional speed fan with front-to-rear airflow. | | Power Consumption | 8.3A; no more than 38W at idle | | Power Requirements | 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz | | Dimensions | 19 x 3.5 x 12.25" (48.26 x 8.89 x 31.11cm) | | Weight | 18.5 lbs (8.4kg) | | Specialties | DSP Includes EQ, Crossover Filters, Delay, and Subharmonic Synthesizer
Protection for Short Circuits, Overloads, and Overheating | | Package Weight | 23.75 lb | | Box Dimensions (LxWxH) | 22.5 x 18.9 x 7.1" | |
The user manual for the Crown Audio XTi 2002 Power Amplifier XTI 2002 can be downloaded in .pdf
format if it did not come with your new standard amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Crown Audio users keep a unique electronic library
for Crown Audio standard amplifierss,
where you can use our link to download the user manual for the Crown Audio XTi 2002 Power Amplifier XTI 2002.
The user manual lists all of the functions of the Crown Audio XTi 2002 Power Amplifier XTI 2002,
all the basic and advanced features and tells you how to use the standard amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Crown Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Crown Audio XTi 2002 Power Amplifier XTI 2002. User manuals are also
available on the Crown Audio website under Pro Audio - Installation Sound - Standard Amplifiers.
