User manual for the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD
The user manual for the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

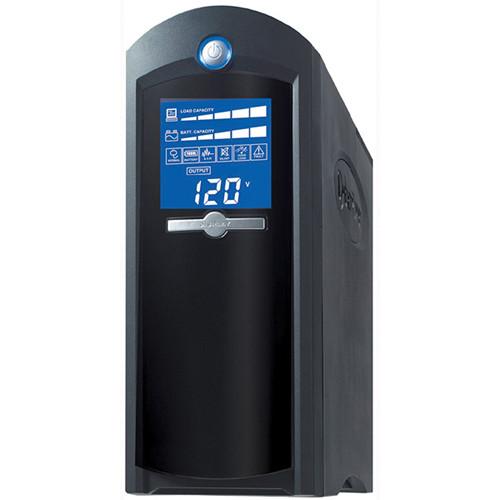

The CP1500AVRLCD Uninterrupted Power Supply from CyberPower features eight total outlets, four battery and surge protected outlets and four surge-only protected outlets. Among the eight outlets one is widely spaced giving you the ability to plug a variety of plug types into this uninterrupted power supply. Once configured you benefit from up to 11 minutes of runtime at half load and 3 minutes of run time at full load of battery backup power. The power supply also supplies integrated surge protection with up to 1,500 Joules surge protection and a maximum surge current of up to 105,000 Amps. Aside from standard power outlets, this UPS also comes equipped with a 1-in, 1-out combo Phone RJ11 / Ethernet RJ45 port and 1-in, 1-out coax port.
|
If you own a CyberPower ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD:
| UPS Topology | Line-interactive | | Energy Saving | GreenPower UPS Bypass Technology | | Energy Star Compliance | Yes | | Voltage | 90VAC - 140VAC | | Frequency | 60Hz +/- 3Hz | | Plug Type | NEMA 5-15P | | Plug Style | Right angle | | Cord Length | 6' | | VA | 1,500 | | Watts | 900 | | Automatic Voltage Regulation (AVR) | Yes | | On Battery Voltage | 120VAC ± 5% | | On Battery Frequency | 60Hz ± 1% | | On Battery Waveform | Simulated sine wave | | Outlet Type | NEMA 5-15R | | Total Outlets | 8 x total outlets
(4 x battery and surge protected outlets)
(4 x surge-only protected outlets)
(1 x widely spaced outlet) | | Overload Protection | Internal circuitry limiting / circuit breaker | | Transfer Time | 4ms | | Runtime | Runtime at Half Load: 11 min
Runtime at Full Load: 3 min | | Battery Type | Sealed lead-acid | | Battery Size | 12 V / 8.5 AH | | User Replaceable | Yes | | Typical Recharge Time | 8 hours | | Replacement Battery | RB1280X2A | | Battery Quantity | 2 | | Surge Suppression | 1,500 Joules | | Maximum Surge Current | 105,000 Amps | | Phone RJ11 / Ethernet RJ45 | 1-in, 1-out (combo) | | Coax Protection RG6 | 1-in, 1-out | | Multifunction LCD Display | Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode | | HID Compliant USB Port | Yes | | Serial Port | Yes | | LED Indicators | Power on, wiring fault | | Audible Alarm | On battery, low battery, overload | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% non-condensing | | Safety | UL1778, cUL, FCC DOC Class B | | Environmental Compliance | RoHS compliant | | Connected Equipment Guarantee | $500,000 | | Dimensions (WxHxD) | 4 x 9.75 x 13.25" / 10.2 x 24.8 x 33.7 cm | | Weight | 25 lb / 11.3 kg | | Package Weight | 25.2 lb | | Box Dimensions (LxWxH) | 16.9 x 13.9 x 7.5" | |
The user manual for the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD can be downloaded in .pdf
format if it did not come with your new ups backup, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other CyberPower users keep a unique electronic library
for CyberPower ups backups,
where you can use our link to download the user manual for the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD.
The user manual lists all of the functions of the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD,
all the basic and advanced features and tells you how to use the ups backup.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from CyberPower service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the CyberPower CP1500AVRLCD Uninterrupted Power Supply CP1500AVRLCD. User manuals are also
available on the CyberPower website under Computers & Solutions - Power - UPS Backup.
