User manual for the CyberPower CP750LCD Intelligent LCD Uninterruptible CP750LCD
The user manual for the CyberPower CP750LCD Intelligent LCD Uninterruptible CP750LCD provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

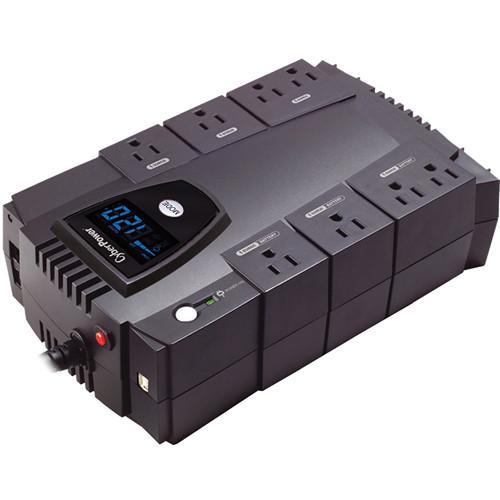

The CP750LCD Intelligent LCD Uninterruptible Power Supply from CyberPower comes equipped with a capacity of 750VA / 420W that delivers power for up to eight electronic devices and helps to safeguard PCs and other electronics such as monitors, cable and DSL modems, VoIP routers, fax machines, home theater equipment, and more from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Furthermore, it has composite integrated circuitry for lighting protection and EMI/RFI filters. The multifunction diagnostic LCD also provides users the ability to check UPS operating status and assist in trouble-shooting power anomalies.
This desktop power supply offers eight NEMA 5-15R outlets that are capable of absorbing up to 890 Joules for keeping your devices safe against surges and spikes. To keep your devices powered during power outages, four of the outlets deliver power via a 12V / 7Ah lead-acid sealed battery for critical loads. In addition to the power outlets, other connections offered are USB type B and RJ-11.
This power supply is ENERGY STAR qualified and operates for up to three minutes with a full load and up to ten minutes with a half load. It also features GreenPower UPS technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to help ensure it is working properly. When a power outage does occur, this software automatically shuts down your system. This UPS is also protected by a limited 3-year warranty and offers a $150,000 Connected Equipment Guarantee.
If you own a CyberPower ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the CyberPower CP750LCD Intelligent LCD Uninterruptible CP750LCD in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the CyberPower CP750LCD Intelligent LCD Uninterruptible CP750LCD:
Specifications
General
UPS Topology: Standby GreenPower UPS High Efficiency ENERGY STAR Qualified: Yes
Form Factor
Compact
Input
Voltage: 96 - 140 VAC Frequency: 47 - 63 Hz Surge Protection: 12 A Plug Type: NEMA 5-15P Plug Style: Right Angle, 45° Offset Right Cord Length: 5.0' / 1.5 m
Output
VA: 750 Watts: 420 On Battery Voltage: 120 VAC ± 5% On Battery Frequency: 50/60 Hz ± 1% On Battery Waveform: Simulated sine wave Outlets - Total: 8 Outlet Type: NEMA 5-15R Outlets - Battery and Surge Protected: 4 Outlets - Surge-Only Protected: 4 Outlets - Widely Spaced: 4 Overload Protection: Internal circuitry limiting / circuit breaker
Battery
Runtime at Half Load (min): 10 Runtime at Full Load (min): 3 Battery Type: Sealed lead-acid Battery Size: 12 V / 7 Ah
Multifunction Diagnostic LCD: Displays Input Voltage, Output Voltage, Estimated Run-time, Normal Mode, Battery Mode, Overload, Battery Capacity, and Load Capacity USB Port: Yes HID Compliant USB Port: Yes Management Cable: USB cable LED Indicators: Power on, wiring fault Audible Alarms: On battery, low battery, overload Software: PowerPanel Personal Edition
Certifications
Safety: UL1778, cUL CSA C22.2 No. 107.3, FCC DOC Class B Environmental: RoHS compliant
Environmental Requirements
Operating Temperature: 32 to 104°F / 0 C to 40°C Operating Humidity: 0 to 90% (non-condensing)
