User manual D-Link 1-Port Gigabit PoE Injector DPE-301GI

Operating instructions and pdf manual for use - D-Link 1-Port Gigabit PoE Injector DPE-301GI User manual, User manual D-Link 1-Port Gigabit PoE Injector DPE-301GI, D-Link, 1-Port, Gigabit, PoE, Injector, DPE-301GI, Video


User manual for D-Link 1-Port Gigabit PoE Injector DPE-301GI

D-Link  1-Port Gigabit PoE  Injector DPE-301GI
  • Manufacturer: D-Link
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE)
  • Safety instructions
  • Startup and operation of the power over ethernet (poe)
  • Tips for setting up your D-Link
  • Settings and expert assistance
  • Contact D-Link service
  • Troubleshooting
  • Warranty information
  • Price: 42 USD

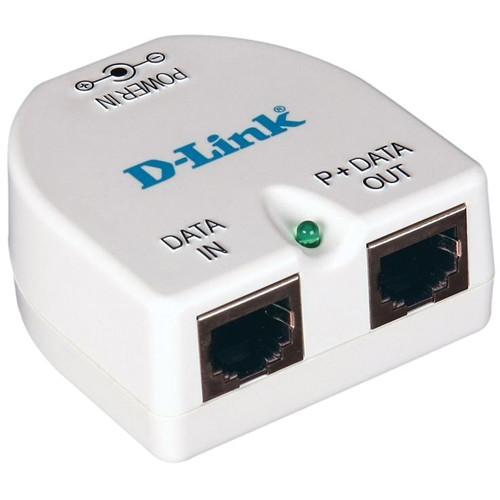

D-Link  1-Port Gigabit PoE  Injector DPE-301GI D-Link  1-Port Gigabit PoE  Injector DPE-301GI
Click to enlarge image

We recommend checking out our discussion threads on the D-Link 1-Port Gigabit PoE Injector DPE-301GI, which address similar problems with connecting and setting up Power over Ethernet (PoE) D-Link.



User manual for the D-Link 1-Port Gigabit PoE Injector DPE-301GI

The user manual for the D-Link 1-Port Gigabit PoE Injector DPE-301GI provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).

Power your PoE device even when there is no available power outlet using the 1-Port Gigabit PoE+ Injector from D-Link. Ideal for connecting access points, network cameras, and IP phones to a power source, the injector receives power from a wall socket and sends it to PoE devices at a connecting speed up to 1000 Mb/s. The injector allows you to extend your existing wireless network up to 328' using a single RJ-45 cable, can be mounted to a wall or ceiling, and is plug and play operational.
If you own a D-Link power over ethernet (poe) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the D-Link 1-Port Gigabit PoE Injector DPE-301GI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the D-Link 1-Port Gigabit PoE Injector DPE-301GI:
Specifications
Standards IEEE 802.3 (out and in)
IEEE 802.3u (out and in)
IEE 802.3ab (out and in)
IEEE 802.3at (out only)
IEEE 802.3af (out only)
Data Port In: 10/100/1000 Base-T
Out: 10/100/100 Base-T
LED Indicators Blue: Power on
Green: Link on
Operating Distance 328.1' / 100.0 m
Power Output: 54 V, 0.6 A
Max Consumption: 32.4 W
Operating Temperature & Humidity 32 to 122°F / 0 to 50°C, 5 to 95% RH
Storage Temperature & Humidity -22 to 158°F / -30 to 70°C, 5 to 95% RH
Dimensions 4.3 x 2.4 x 1.0" / 109.8 x 62.2 x 24.5 mm
Weight 2.3 oz / 65.0 g
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 8.5 x 6.2 x 2.7"
The user manual for the D-Link 1-Port Gigabit PoE Injector DPE-301GI can be downloaded in .pdf format if it did not come with your new power over ethernet (poe), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other D-Link users keep a unique electronic library for D-Link power over ethernet (poe)s, where you can use our link to download the user manual for the D-Link 1-Port Gigabit PoE Injector DPE-301GI.

The user manual lists all of the functions of the D-Link 1-Port Gigabit PoE Injector DPE-301GI, all the basic and advanced features and tells you how to use the power over ethernet (poe). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from D-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the D-Link 1-Port Gigabit PoE Injector DPE-301GI. User manuals are also available on the D-Link website under Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).
