User manual D-Link DCS-2210 Full HD Cube IP Camera DCS-2210

Operating instructions and pdf manual for use - D-Link DCS-2210 Full HD Cube IP Camera DCS-2210 User manual, User manual D-Link DCS-2210 Full HD Cube IP Camera DCS-2210, D-Link, DCS-2210, Full, HD, Cube, IP, Camera, DCS-2210, Video


User manual for D-Link DCS-2210 Full HD Cube IP Camera DCS-2210

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

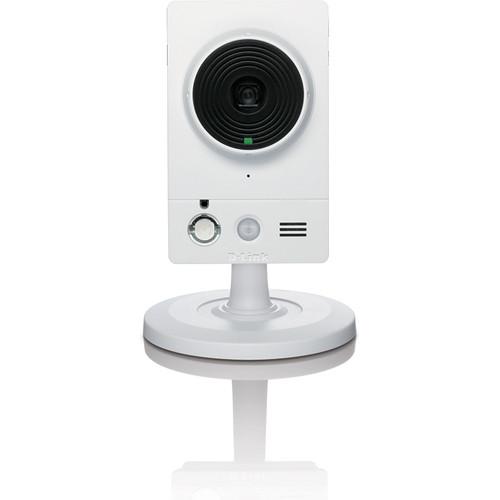

D-Link  DCS-2210 Full HD Cube IP Camera DCS-2210
  • Manufacturer: D-Link
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your D-Link
  • Settings and expert assistance
  • Contact D-Link service
  • Troubleshooting
  • Warranty information
  • Price: 253 USD
We recommend checking out our discussion threads on the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210, which address similar problems with connecting and setting up Wired IP Cameras D-Link.



User manual for the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210

The user manual for the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The D-Link DCS-2210 Full HD Cube IP Camera lets you keep an eye on your home or small office to prevent loss of confidential data and assets. You can even monitor these areas remotely over the Internet from any location.

Designed for lowlight surveillance, the camera comes with a 2 MP sensor and a built-in IR LED to produce detailed color videos at HD resolutions of up to 1920 x 1080. In addition, the removable IR-cut filter ensures excellent video clarity during the day and night, making the camera suitable for round-the-clock surveillance.

An integrated CPU and web server allows the IP Camera to function as a standalone device, allowing users to access the camera anywhere in the world via a Web browser. The included D-ViewCam software allows you to view up to 32 live cameras from a central location and instantly alerts administrators of suspicious or unusual activities.

Using the ePTZ function, you can focus on close-up shots of different areas without moving the camera. In addition, the enhanced motion detection feature helps you keep intruders out of your home or office area by triggering an alarm each time it detects any movement in the designated area.
If you own a D-Link wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for D-Link  DCS-2210 Full HD Cube IP Camera DCS-2210Download user manual for D-Link DCS-2210 Full HD Cube IP Camera DCS-2210
(PDF file, 7.01 MB)
Additional parameters of the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210:
Specifications
    Video
    Sensor 1/2.7" 2 Megapixel progressive CMOS sensor
    Lens Fixed length 6 mm, F2.0, 10x digital zoom
    Angle of View 67.4° H, 40.8° V, 75° D
    Image Features Configurable image size, quality, frame rate, and bit rate
    Time stamp and text overlays
    Configurable motion detection windows
    3 configurable privacy mask zones
    Configurable shutter speed, brightness, saturation, contrast, and sharpness
    Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression
    H.264/MPEG-4 multicast streaming
    JPEG for still image
    Video Resolution 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 (up to 30 fps)
    4:3 - 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 (up to 30 fps)
    Night Vision
    IR Cut Filter Yes
    IR Illuminator Yes (5 m illumination distance)
    Minimum Illumination 0 lux (with IR illuminator)
    Audio
    Microphone Yes
    Speaker Yes
    Audio Codecs Audio Codecs
    External Device Controls
    SD Card Slot MicroSD Card Slot: MicroSD Card Slot
    Digital I/O 4 pin-contact terminal block (DC 5V, DI, DO, GND)
    PIR Sensor Yes (5 m)
    Network
    Network Protocols IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP fi ltering, 3GPP, IGMP, ONVIF Compliant
    Connectivity 1x 10/100BaseT (Ethernet) with PoE
    System Management
    Security Administrator and user group protection
    Password authentication
    HTTP and RSTP digest encryption
    System Requirements Microsoft Windows 7/Vista/XP/2000, Apple MAC OSX 10.3 or above, Linux, Unix
    Browser: Internet Explorer, Firefox, Netscape, Opera
    Event Management Motion detection
    PIR motion detection
    Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
    Supports multiple HTTP, SMTP and FTP servers
    Multiple event notifications
    Multiple recording methods for easy backup
    Remote Management Configuration accessible via web browser Take snapshots/videoclips and save to local hard drive or NAS via web browser
    Mobile Support Pocket PC or mobile phone with 3GPP playback support
    D-ViewCam System Requirements Microsoft Windows 7/Vista/XP
    Browser: Internet Explorer 6 or higher
    Protocol: Standard TCP/IP
    D-ViewCam Software Functions Remote management/control of up to 32 live cameras
    Viewing of up to 32 live cameras on one screen
    Supports all management functions provided in web interface
    Scheduled motion triggered or manual recording options
    General
    Power Input 5V DC 1.2 A, 50/60 Hz or 802.3af PoE
    Power Consumption 2 W
    Operating Temperature 32 to 104° F (0 to 40° C)
    Storage Temperature -4 to 158° F (-20 to 70° C)
    Humidity 20% to 80% non-condensing
    Certifications CE, CE LVD, FCC, C-Tick
    Weight 2.4 oz (69 g)
    Packaging Info
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 8.3 x 5.6 x 3.9"
    The user manual for the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other D-Link users keep a unique electronic library for D-Link wired ip camerass, where you can use our link to download the user manual for the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210.

    The user manual lists all of the functions of the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from D-Link service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the D-Link DCS-2210 Full HD Cube IP Camera DCS-2210. User manuals are also available on the D-Link website under Surveillance - Surveillance Video - Wired IP Cameras.
