User manual D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L

Operating instructions and pdf manual for use - D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L User manual, User manual D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L, D-Link, DCS-942L, Enhanced, Wireless, N, IR, Net


User manual for D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L
  • Manufacturer: D-Link
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wireless Cameras
  • Safety instructions
  • Startup and operation of the wireless cameras
  • Tips for setting up your D-Link
  • Settings and expert assistance
  • Contact D-Link service
  • Troubleshooting
  • Warranty information
  • Price: 90 USD
We recommend checking out our discussion threads on the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L, which address similar problems with connecting and setting up Wireless Cameras D-Link.



User manual for the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L

The user manual for the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

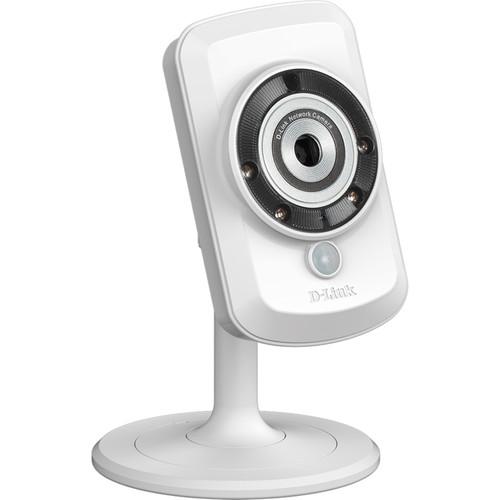

Compact and versatile, the DCS-942L Enhanced Wireless N IR Network Camera from D-Link can easily bring video surveillance to your home or small office. With a 1/5" CMOS image sensor, the network camera captures clear images at a resolution up to 640 x 480 at 30 fps using H.264, MPEG-4, and MJPEG compression. Along with a built-in IR-cut filter that can be removed automatically at night, this camera is equipped with four IR LEDs to capture clear images at night of subjects up to 16' away. In addition, a Passive Infrared (PIR) motion-detection sensor is useful to trigger recordings and send e-mail alerts in occurrence of an event.

The camera supports wireless 802.11n connectivity to offer remote monitoring over the network. You can even watch recorded videos on your mydlink-enabled devices such as iPhone, iPad or Android smartphones to keep an eye on your home or office premises when you're away. Other connectivity includes a standard wired Ethernet port and it has a 1/8" audio out port that works with a built-in microphone for full two-way audio.

The IP camera includes the D-ViewCam software that allows you to manage up to 32 network cameras, send e-mail alert notifications, set recording schedules, and trigger motion detection to record directly to your hard drive. Apart from this, the software can also be used to upload your business floor plan and create a layout of the exact locations of your cameras, thereby simplifying camera management.
If you own a D-Link wireless cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942LDownload user manual for D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L
(PDF file, 11.09 MB)
Additional parameters of the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L:
Specifications
    Sensor VGA 1/5" CMOS
    Resolution 640 x 480
    320 x 240
    160 x 120
    Frame Rate Up to 30 fps
    Video Compression H.264
    MPEG-4
    MJPEG
    Lens 3.15 mm f/2.8
    Viewing Angle Horizontal: 45.3°
    Vertical: 34.5°
    Diagonal: 54.9°
    Digital Zoom 4x
    Minimum Illumination 1 lux at f/2.8
    0 lux with IR LED
    IR LED / Night Vision Range 16' / 5 m
    Audio Two-way support
    Microphone
    Headphone/speaker jack
    Connection 10/100BASE-TX Fast Ethernet
    802.11b/g/n Wi-Fi
    Wireless Transmit Output Power 802.11b: 16 dBm
    802.11g: 12 dBm
    802.11n: 12 dBm
    Networking Protocols IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (DynDNS and D-Link), SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP, Port Forwarding, LLTD
    Wireless Security WEP/WPA/WPA2 encryption
    SDRAM 128 MB
    Flash Memory 16 MB
    Local Storage microSD card slot up to 32 GB
    System Requirements Windows XP, Vista, 7
    Internet Explorer 6, Firefox 3.5, Safari 4 or higher
    Power Requirements Input: 100-240 VAC, 50/60 Hz
    Output: 5 VDC, 1.2 A
    Power Consumption 5.5 W
    Operating Conditions Temperature: 32 to 104°F / 0 to 40°C
    Humidity: 20 to 80%, relative non-condensing
    Storage Conditions Temperature: -4 to 158°F / -20 to 70°C
    Certifications FCC Class B, IC, C-Tick, CE
    Dimensions With Bracket and Stand: 2.6 x 2.6 x 5.0" / 66 x 65 x 126 mm
    Camera Only: 1.1 x 2.4 x 3.8" / 27 x 60 x 96 mm
    Weight 2.7 oz / 77 g without bracket and stand
    Packaging Info
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 8.3 x 5.5 x 3.7"
    The user manual for the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L can be downloaded in .pdf format if it did not come with your new wireless cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other D-Link users keep a unique electronic library for D-Link wireless camerass, where you can use our link to download the user manual for the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L.

    The user manual lists all of the functions of the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L, all the basic and advanced features and tells you how to use the wireless cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from D-Link service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the D-Link DCS-942L Enhanced Wireless N IR Network Camera DCS-942L. User manuals are also available on the D-Link website under Surveillance - Surveillance Video - Wireless Cameras.
