User manual for the D-Link DGS-1005G 5-Port Gigabit Desktop Switch DGS-1005G
The user manual for the D-Link DGS-1005G 5-Port Gigabit Desktop Switch DGS-1005G provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

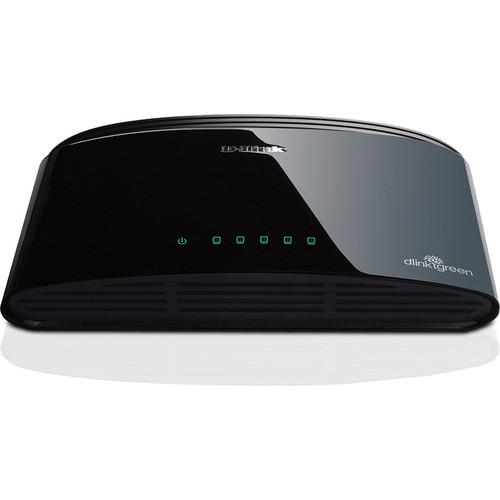

The DGS-1005G 5-Port Gigabit Switch from D-Link is part of a new series of 'green' devices using D-Link Green technology. Created with the small or home office user in mind, this switch saves energy while reducing heat output, providing you a longer product life without sacrificing operational performance or functionality.
|
If you own a D-Link network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the D-Link DGS-1005G 5-Port Gigabit Desktop Switch DGS-1005G in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the D-Link DGS-1005G 5-Port Gigabit Desktop Switch DGS-1005G:
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 Nway auto-negotiation
IEEE 802.3x Flow control
IEEE 802.1p QoS | | Protocol | CSMA/CD | | Data Transfer Rate | Ethernet: - 10Mb/s (half duplex)
- 20Mb/s (full duplex)
Fast Ethernet: - 100Mb/s (half duplex)
- 200Mb/s (full duplex)
Gigabit Ethernet: - 2000Mb/s (full duplex)
| | Topology | Star | | Interface | Media Interface Exchange: Auto MDI/MDIX adjustment for all ports | | Cable Type | 10BASE-T: - UTP CAT 3/4/5/5e (100m / 328' maximum)
- EIA/TIA-586 100-ohm STP (100m / 328' maximum)
100BASE-TX, 1000BASE-T: - UTP CAT 5/5e (100m / 328' maximum)
- EIA/TIA-568 100-ohm STP (100m / 328' maximum)
| | LED Indicators | Per port: Link/Activity/Speed
Per device: Power | | Transmission | Store-and-forward method | | MAC Address Table Size | 4K entries per device, automatic update learning system | | RAM Buffer | 128KB per device | | DC Input | External 5VAC / 1.2A power adapter | | Power Consumption | Power on (Standby): - DC Input: 0.4W
- AC Input: 1.1W
Maximum: - DC Input: 3.2W
- AC Input: 4.5W
| | Heat Dispersion | Power on (Standby): AC input 3.751 BTU/h
Maximum: AC input 15.345 BTU/h | | Temperature Range | Operating: 32-104°F (0-40°C)
Storage: 14-158°F (-10-70°C) | | Humidity Range | Operating: 10-90% RH Non-Condensing
Storage: 5-90% RH Non-Condensing | | Dimensions | 5.7 x 4.0 x 1.3" (144.2 x 100.2 x 32.6mm) | | Minimum System Requirements | Devices Supporting 802.3 Ethernet, 802.3u fast Ethernet, or 802.3ab Gigabit Ethernet
CAT5 Ethernet Cable
Network Interface Card for each computer
CD-ROM Drive to view Product Documentation | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.8" | |
