User manual for the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A
The user manual for the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

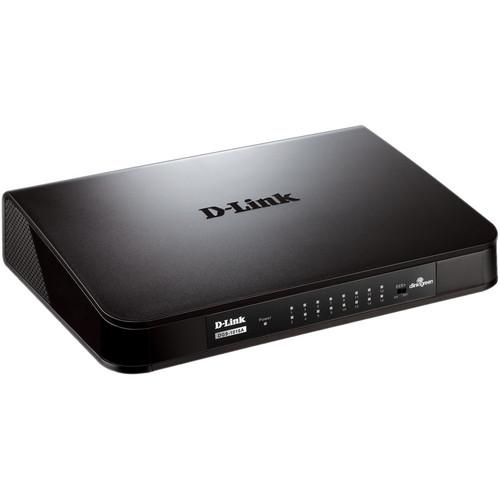

The DGS-1016A 16-Port Unmanaged Gigabit Switch from D-Link supports IEEE 802.3, 802.3u, and 802.3ab standards making it not only an efficient switch but versatile as well. The integrated 16 gigabit ports provide ultra fast Gigabit speeds, keeping your network operating at high capacity. The priority IEEE 802.3x flow control provides the means to stop the transmission of data on Ethernet connected computers when not in use. This can assist in the management of data resources throughout the network giving you the ability to provide a more solid, stable connection to the users.
The DGS-1016A comes equipped with a variety of energy saving abilities. If the port on the switch has no link that port is automatically shut down, thus saving large amounts of power that would have otherwise been wasted. The DGS-1016A can also detect connected cable lengths and adjust the power accordingly, saving more energy without affecting the network performance.
|
If you own a D-Link network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A:
| Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet | | Ports | 16 x 10/100/1000 Gigabit Ports | | Data Transfer | Ethernet:
10Mbps (half duplex)
20Mbps (full duplex)
Fast Ethernet:
100Mbps (half duplex)
200Mbps (full duplex) | | Network Cable Type | 10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1,000BASE-T:
UTP CAT 5/5e (100m max)
EIA/TIA-56B 100-ohm STP (100 m max) | | Media Interface Exchange | Auto MDI/MDIX Adjustment for All Ports | | LED Indicators | Per Port: Link/Activity/Speed | | Transmission Format | Store-and-Forward | | MAC Address Table Size | 8k | | MAC Address Update | Automatic Update | | Forwarding Capacity | MAC Address Filtering/Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port | | RAM Buffer | 2Mbits | | Jumbo Frames | 9216 Bytes | | Green Compliance | IEEE 802.3az Energy Efficient Ethernet (EEE)
Link Status Detection Power Saving
Cable Length Detection Power Saving
RoHS Compliance | | Power Requirements | Power Inputs:
Switching 12V/1A Level V Power Adapter
Power Consumption:
Power On (Standby): AC Input: 3.12 Watts
Power Max.: AC Input: 7.89 Watts | | Heat Dissipation | Power On (Standby): AC Input: 10.65 BTU/h
Power Max.: AC Input: 26.92 BTU/h | | MTBF | 527,308 hours | | Environmental Requirements | Operating Temperature: 32-104°F (0-40°C)
Storage Temperature: 14-158°F (-10-70°C)
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | Certifications | FCC Class A
ICES-003 Class A
CE Class A
uCL
CB
VCCI Class A
C-Tick Class A | | Dimensions | 9.1 x 6.2 x 1.8" (231 x 158 x 46 mm) | | Weight | 1.28 lb (580 g) | | Package Weight | 2.29 lb | | Box Dimensions (LxWxH) | 11.3 x 9.6 x 3.3" | |
The user manual for the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A can be downloaded in .pdf
format if it did not come with your new network switches, bridges & hubs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other D-Link users keep a unique electronic library
for D-Link network switches, bridges & hubss,
where you can use our link to download the user manual for the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A.
The user manual lists all of the functions of the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A,
all the basic and advanced features and tells you how to use the network switches, bridges & hubs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from D-Link service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the D-Link DGS-1016A 16-Port Unmanaged Gigabit Switch DGS-1016A. User manuals are also
available on the D-Link website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
